MONITOR- SERVO MONITOR
H-47
The Servo Monitor function displays each channel and
shows the movement of channels when sticks, levers
and switches are moved. It renames channels according
to special assignments to assist in identifying what is
moving. For instance, when 120 CCPM Swashplate Type
is selected, the Servo Monitor will display CH-2, CH-3,
and CH-6. It is a handy way to determine what channels
are mixed with other channels and to verify programming
when the helicopter is not at hand. The Monitor function
also displays the current value of all digital trims.
1. To access the Monitor function, highlight and select
MONITOR in the FUNCTION LIST to obtain the
Monitor display.

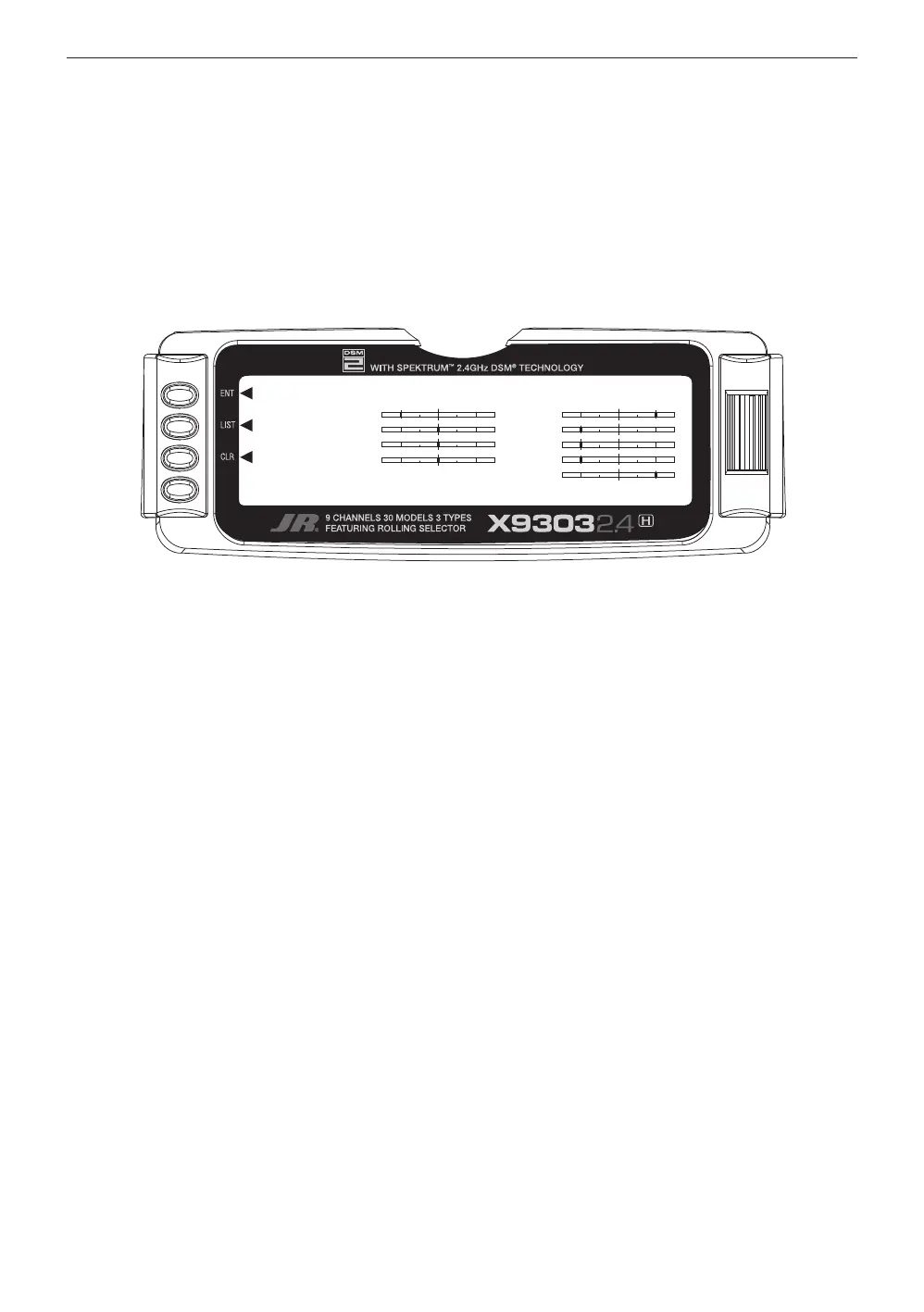

2. The default display (MONI) shows the settings of
all digital trims. To view the Monitor display of all
channels, highlight and select MONI. View the display
while moving sticks, switches and levers to see the
movements of various channels.
3. To view the Digital Trim values and Hover Pitch (HOV
P) and Hover Throttle (HOV T) Lever values, Highlight
MONI with the Selector and press. The word MONI
will change to TRIM to show the trim values for these
levers. To move back to the Channels display, press
TRIM to return to MONI and the servo travel and
output positions will be displayed once again.
Note: If a form of CCPM mixing has been selected,
channel naming will vary.
[MONITOR]
MONI
THRO
AILE
ELEV
RUDD
GEAR
PIT.
AUX3
AUX4
