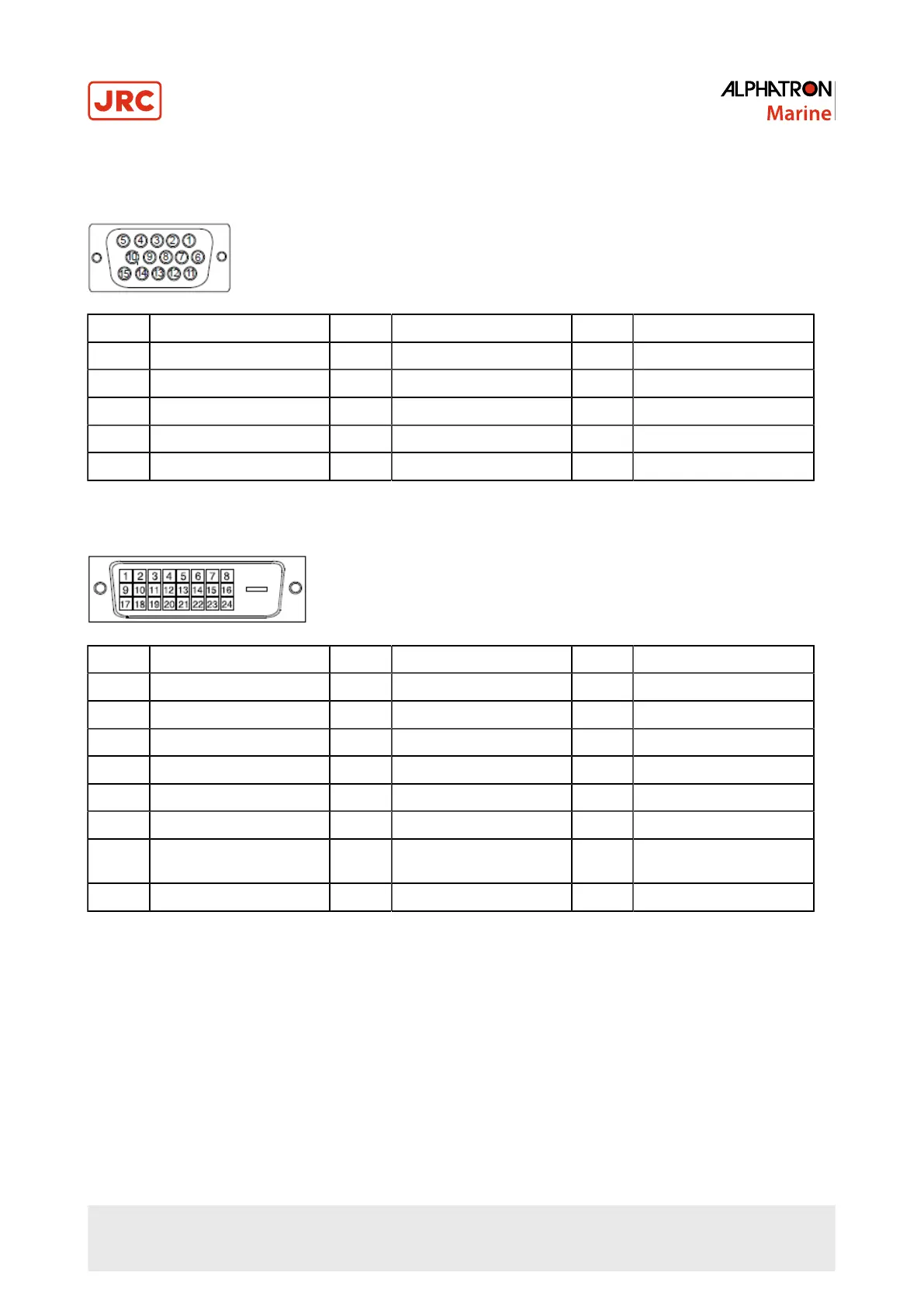

4.5 Pin Assignment
D-Sub mini 15-pin connector
Pin No. Signal Pin No. Signal Pin No. Signal
1 Red Video 6 Red Video Ground 11 Ground
2 Green Video 7 Green Video Ground 12 Data (SDA)
3 Blue Video 8 Blue Video Ground 13 H.Sync
4 Ground 9 NC 14 V.Sync
5 NC 10 Ground 15 Clock (SCL)
(NC: Not connected)
DVI-D connector
Pin No. Signal Pin No. Signal Pin No. Signal
1 T.M.D.S. Data 2- 9 T.M.D.S. Data1- 17 T.M.D.S. Data0-
2 T.M.D.S. Data 2+ 10 T.M.D.S. Data1+ 18 T.M.D.S. Data0+
3 T.M.D.S. Data2/4 Shield 11 T.M.D.S. Data1/3 Shield 19 T.M.D.S. Data0/5 Shield
4 NC 12 NC 20 NC
5 NC 13 NC 21 NC
6 DDC Clock (SCL) 14 +5V Power 22 T.M.D.S. Clock shield
7 DDC Data (SDA) 15 Ground (return for +5V,
Hsync and Vsync)
23 T.M.D.S. Clock+
8 Analog Vertical Sync 16 Hot Plug Detect 24 T.M.D.S. Clock-
(NC: Not connected)
45 | Specifications
