1 Installation Instructions
Installation follows a generic method and is applicable to the complete range of AlphaLine instruments. This chapter
describes the installation into a console.
1.1 Mechanical Installation
• NOTICE
• This product must be installed in accordance with the installation methods described in this manual. Acting
otherwise will void the warranty.
The Location Class/Category of the AlphaLine instrument is: EXPOSED (may be used outside), but only if installed with
the optional sealing kit and according the installation instructions as mentioned in Mounting Instrument on page 10.
1.1.1 Supplied Parts
The AlphaTurn is supplied complete with the following parts.
• Display unit.
• Mounting frame with 2 sets of screws for fixing to either steel or wood.
• 3 x Phoenix connectors for power supply and signals.
• USB stick with manual.
• Mounting template.
• Grounding lug.
1.1.2 Dimensions
Carefully check the applicable drawing(s) of the instrument. See Mechanical Drawings on page 50.
1.1.3 Mounting Instrument
The display unit can only be flush mounted. Carefully consider the location and angle of the display unit for maximum
visibility. Make sure that there is enough space to connect cables. The display unit can be installed horizontally, vertically
or under an angle, see Figure 1: Flush mounting on page 10.
Note For outdoor fitting, use appropriate sealing arrangement.

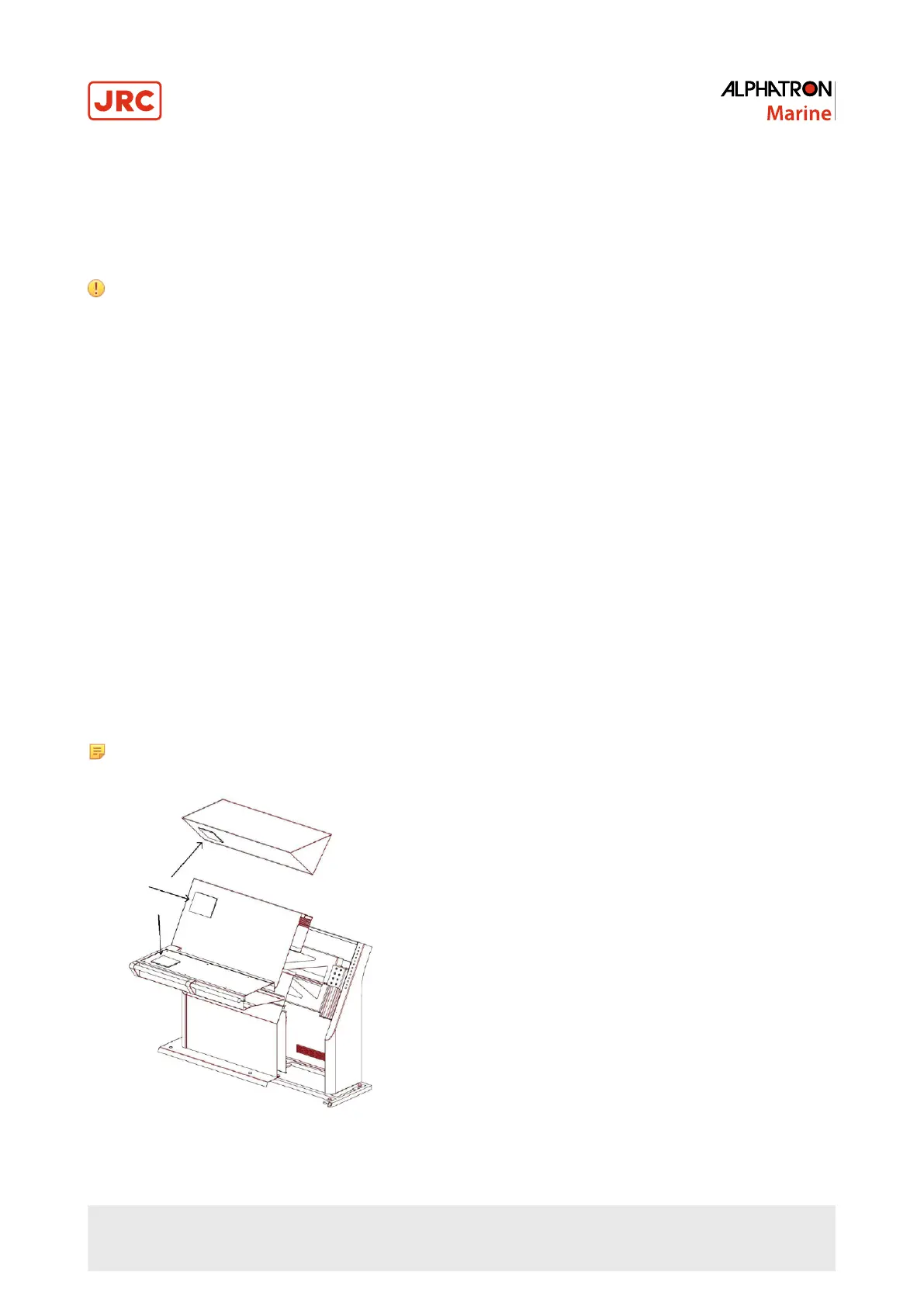

Figure 1: Flush mounting
10 | Installation Instructions
