2.5.2.3 Ethernet Configuration (ETH CONFIG)
The AlphaLine instrument has one network interface to connect to a ship's network.
This can be useful when the instrument is connected to a remote interface or a PLC which uses Modbus/TCP. The
Ethernet interface can also be used for IEC 611612-450 signals.
Note This option has been included for future use.

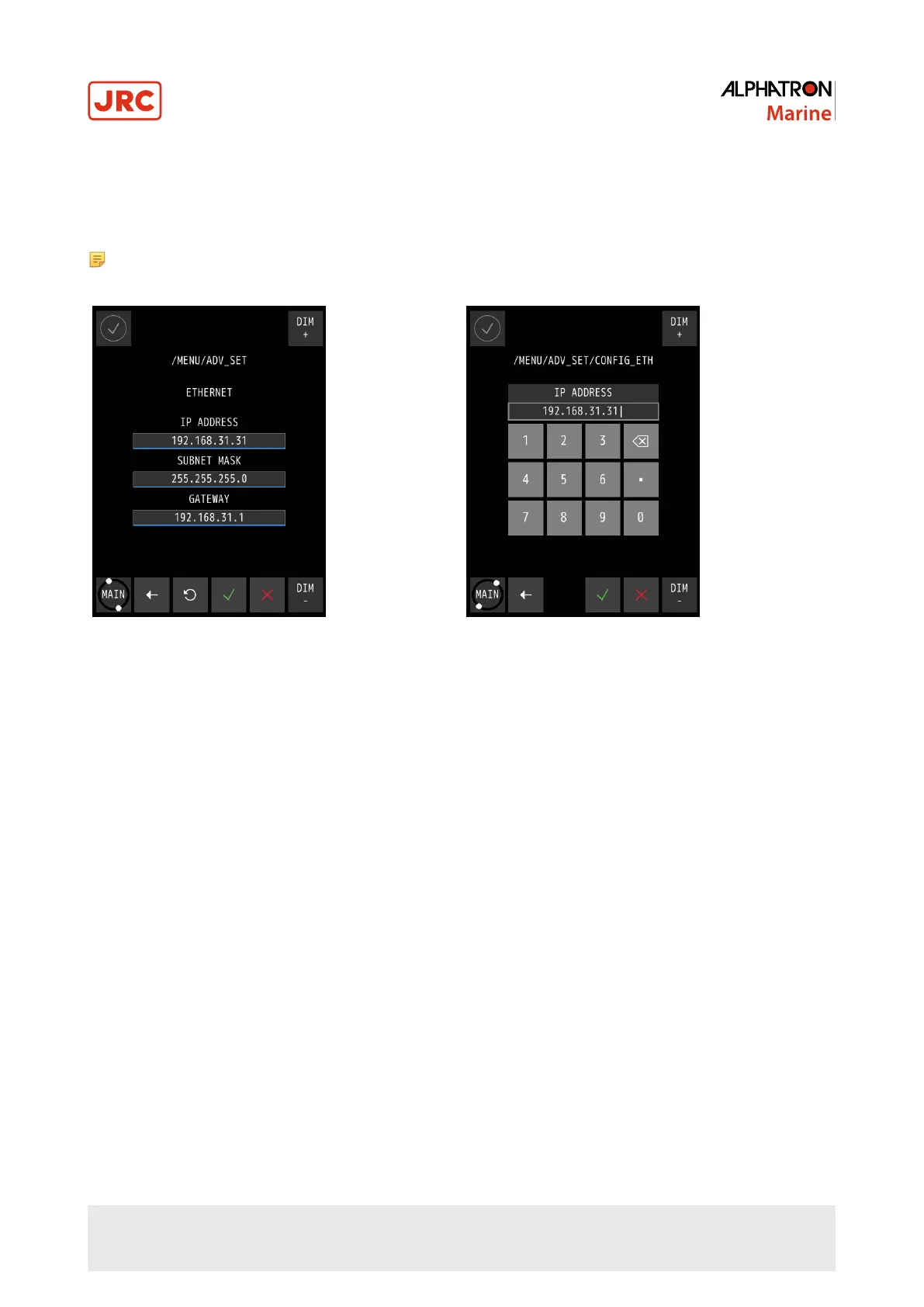

Figure 33: Ethernet Menu Figure 34: Numeric Pad
1. In the MENU, touch the ADV SET button.
The PASSWORD screen appears.
2. Key in the password and confirm with the
√
button.
The ADVANCED SETTINGS MENU appears.
3. Touch the ETH CONFIG button.
The ETHERNET screen appears, see Figure 33: Ethernet Menu on page 39.
4. Touch the bar below IP ADDRESS, SUBNET MASK, or GATEWAY to change these.
The numeric pad appears every time one of the bars is touched, see Figure 34: Numeric Pad on page 39.
5. Touch the numbers to insert new numbers and touch the X button to delete numbers.
6. Touch the
√
button when numbers are correct.
7. Touch the
√
button again to confirm the IP ADDRESS, SUBNET MASK and GATEWAY settings.
39 | Operation
