5.4.3 Setting the Contents of Graphic Display
Explain the setting of graphic display (e.g. range changes, setting of guard zone).
5.4.3.1 Display the Setting Screen

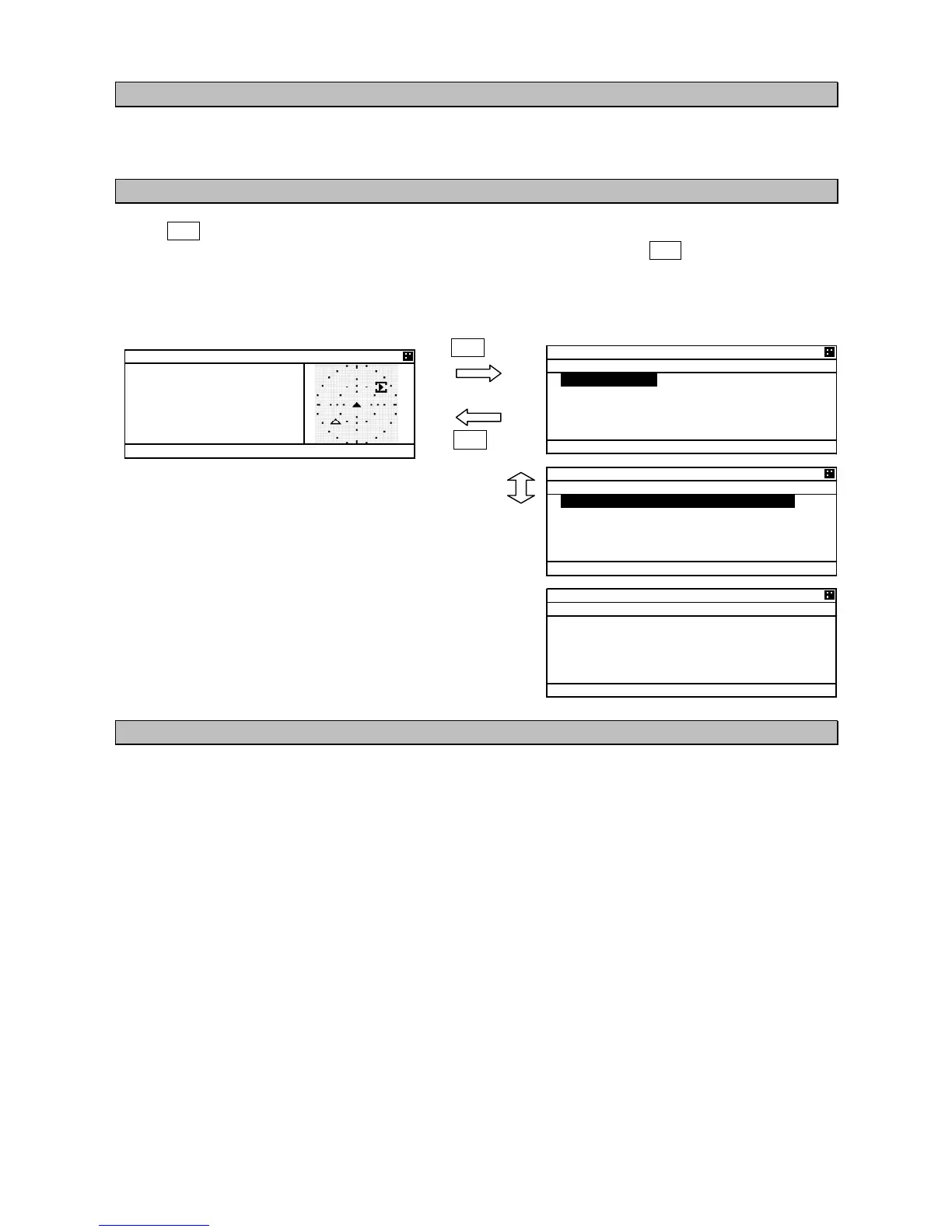

Press SUB key at Graphic screen, and then switch to SUB MENU.
In this SUB MENU, Select the desirable item with ▲ key or ▼ key and Press ENT key, then the item
can be set.
When [SET] is selected on page 2/3, the setting is saved.
When [EXIT] is selected on page 3/3, the display switched to MAIN MENU.
5.4.3.2 Display Item Explanation
1. RANGE
RANGE means the radius of external circle in the graphic screen.
It is selected from 6 steps (0.75,1.5,3,6,12,24NM）with ▲ key or ▼ key.
2. BEARING
North up of Head up can be select with ▲ key or ▼ key.
North up ：Displays on a north basis
Head up ：Displays on own ship’s heading basis.
In case Heading value is not inputted (Not available), Only North up can be selected.
3. SORT
SORT is selected from RANGE, TCPA and GROUP with ▲ key or ▼ key.
RANGE ：In order of the distance from own ships and OTHER SHIPS LIST is arranged.
TCPA ：In order of small TCPA from own ship and the list is arranged.
GROUP ：In order of the distance and gives priority GROUP SHIP, and the list is arranged.
SUB key
SUB key
▲
or
▼
GRAPHIC DISP SET
*SUB MENU*
1.RANGE:6.0NM
2.BEARING:NORTH UP
3.SORT:RANGE
4.NAME:SHIP NAME
▼
5.GUARD ZONE:00.0NM
1
To Next Page
