3-1
3. PART NAMES AND FUNCTIONS
3.1 NCM-983 AIS Controller

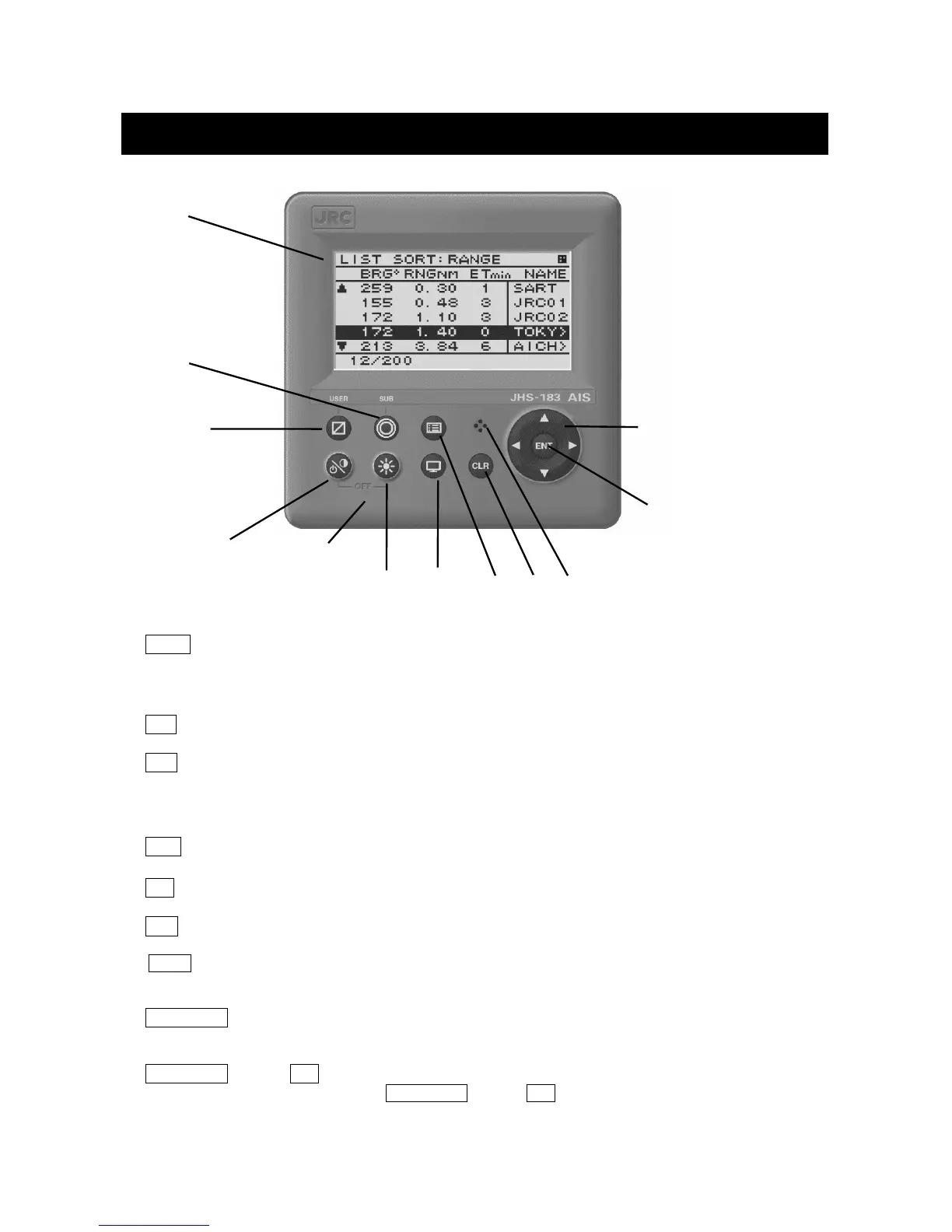

① LCD Display
For further information, refer to “4 DISPLAYS on page 4-1”.
② MENU key
Displays the Main-menu.
③ Up, Down, Right, Left key
Moves the cursor, scrolls the display screen, and selects the item.
④ ENT key
Determines the selection of an item and fixes a setup.
⑤ CLR key
When menu screen is displayed, return to upper menu.
When inputting some items, these inputs are canceled.
When the buzzer sounds, stop the buzzer.
⑥ DISP key
Change the screen. refer to “4 DISPLAYS”.
⑦ DIM key
Adjust the back light brightness of the LCD. the value is up or down by 4 steps by each pressing.
⑧ SUB key
Display SUB MENU screen.
⑨ USER key
Display the screen that is used frequently. In order to assign the activity to the key, refer to the “5.3.4.2 MY
CONTROLLER”.
⑩ PWR/CONT key
Turn the power ON. Adjusts the contrast of the LCD, while the power is turned on. The value is up or
down by 13 steps by pressing the key in turn.
⑪ PWR/CONT key and DIM key
Turn the power off with pressing both PWR/CONT key and DIM key at the same time.
①
②
⑧
⑨
⑩
⑦
⑥
⑤
Buzzer
④
③
⑪
