Chapter 3 INSTALLATION OF THE DISPLAY UNIT
3.6 CONNECTING TO THE GPS COMPASS
3-13
3
NSTALLATION MANUAL
Turn the plug attached to the connector until it cannot be turned any further.
Using JRC's dedicated cable makes it possible to easily connect to JLR-20/30.
Using this cable also makes it possible to receive bearing signals from JLR-20/30 as well
as receive latitude and longitude information as NMEA data.
To acquire NMEA data (such as position information) from other equipment
To acquire only bearing data from JLR-10/20/30 while acquiring NMEA data (such as
position information) from JRC's GPS equipment, connect only 8-pin connector (do not
connect 6-pin connector). Do not use the cable from JLR-10/20/30 to acquire position
information and refer to Section 3.5 for connection to GPS equipment.

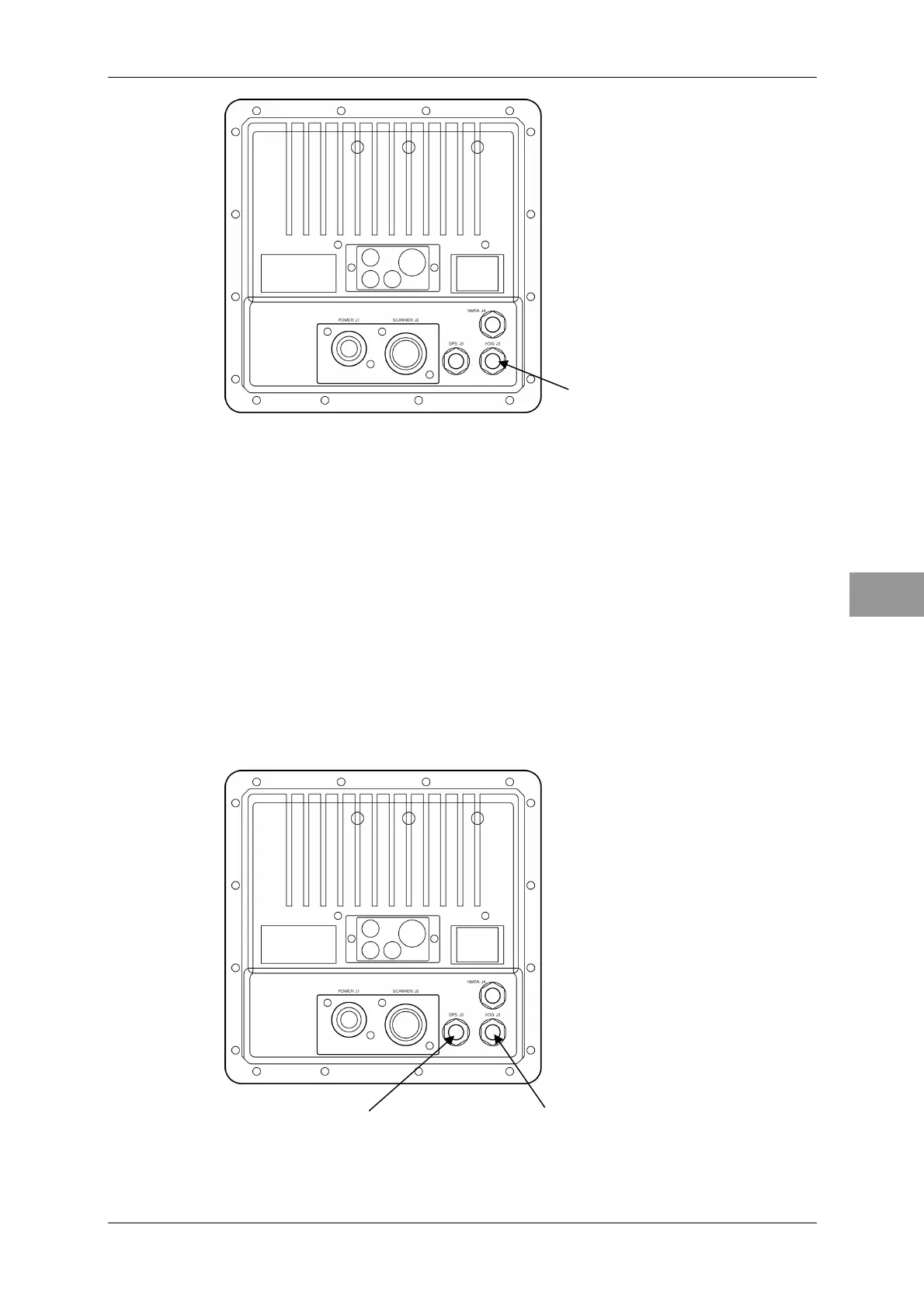

JLR-10
Connect the CFQ-5469
8-pin connector labeled
with "GYRO COMPASS".
Connect the JRC's GPS receiver
connector.
Connect the CFQ-6934 8-pin
connector labeled with "NSK(IND)".
To Next Page
