3.7 DISPLAY CHARTS

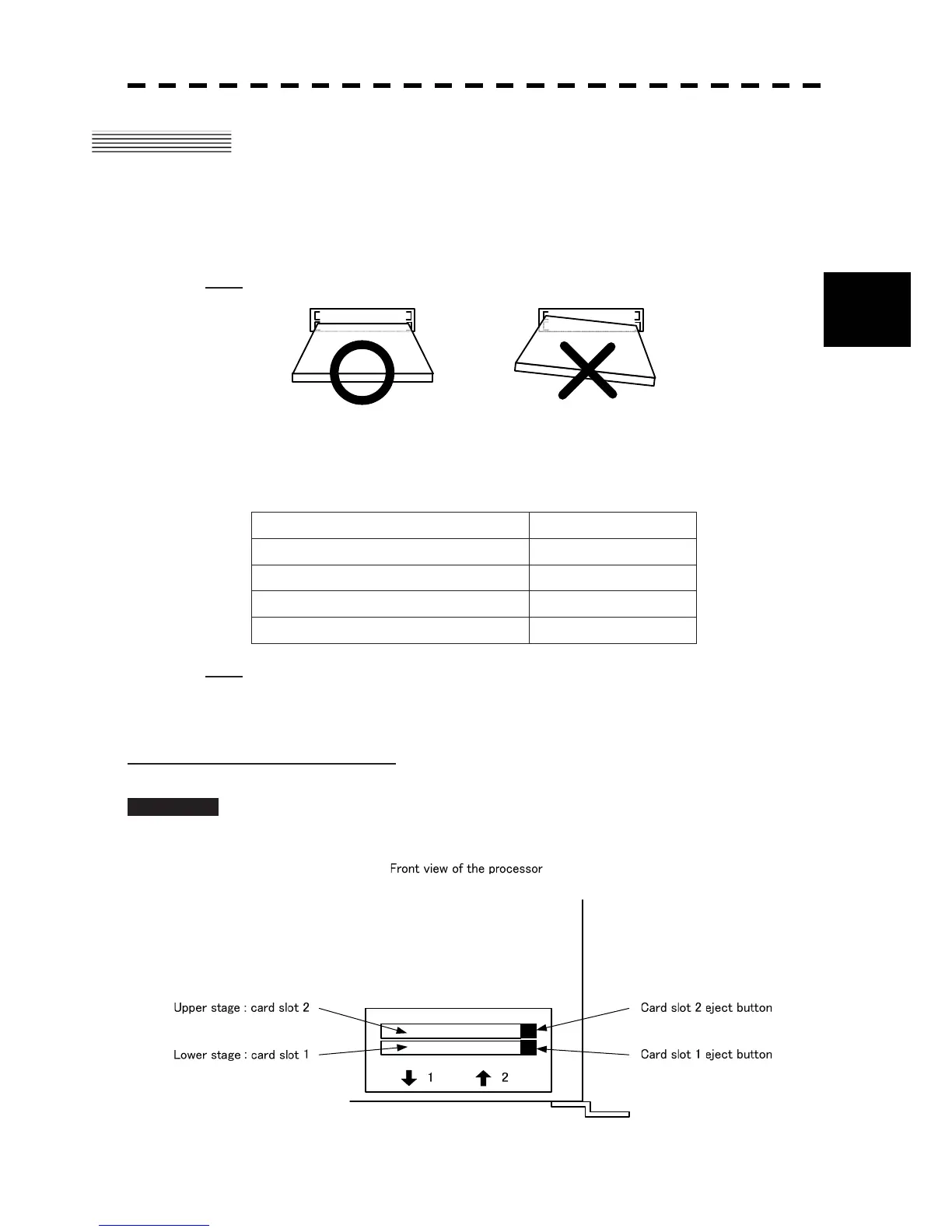

3.7.1 Insert/Remove a Card
Insert or remove the JRC coastline ROM card, ERC card, C-MAP card and memory card according to the
procedures below.
Note:
Keep a card horizontal when inserting it into a card slot. An inclined card causes a failure.
Do not simultaneously insert a JRC coastline ROM card, an ERC card and C-MAP card into the
card slot. A malfunction will occur on the display.
Insert the card into the specified slot according to the following table:
Card type Insertion slot No.
JRC card Either one
ERC card Either one
C-Map NT+ detail card Either one
Memory card Card slot 2 (Upper stage)
Note:
The Background of C-Map has been built in, don’t insert C-Map NT+ background card.
If the background card is inserted, the system will malfunction.
Insert a card into processor unit
Procedure 1 Remove the rubber packing located at the front view of the processing
unit cabinet, and expose the card slot.
To Next Page
