3.9 APPLIED OPERATIONS
3118
3
y
y y
Screen Capture Setting
x This equipment can save the currently displayed images onto a memory card (CF card) while they are
in bitmap format.
x In order to execute this item, a memory card (optional) must be inserted in the card slot 2 (upper slot)
beforehand.
x For use of a CF card, see Section 3.11 "USING CARD."
Note: Once captured images have been saved, this equipment cannot display them.
To display or check a captured image which has been saved, import the capture-image file from
the CF card into the PC, and then operate the file on the PC.
[I] Select Capture Item
Select the information to be saved as a captured image when performing the screen capture function.
Set a value in accordance with the information to be captured on the display.
Procedure 1 Press [RADAR MENU] key.
Press [4] key.
Press [9] key.
Press [1] key.
The Screen Capture Setting menu will appear.
2 Press [1] key.

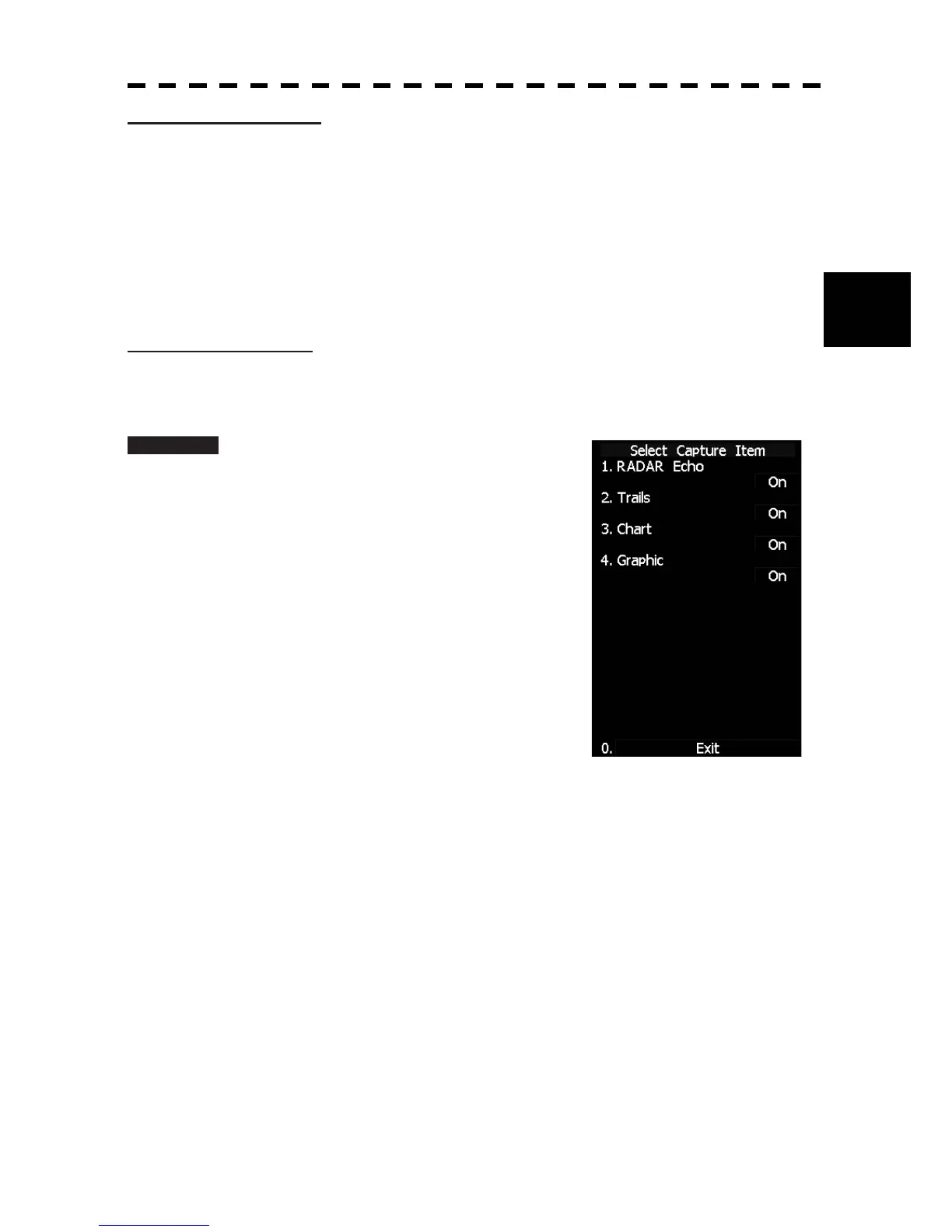

The Select Capture Item menu will appear.
Details about the display capture function can be
set by changing item settings.
Radar Echo The radar echoes will be saved.
Trails The radar trails will be saved.
Chart The chart, mark, line, own ship’s track, target track, route, destination and
NAV line will be saved.
Graphic The radar graphic (EBL, VRM) and characters will be saved.
To Next Page
