3.9.6 Set Chart Display (Map Setting)
This function enables the setting of detail information about chart display.
Setting JRC/ERC Chart Display (JRC/ERC Setting)
Procedure 1 Press [RADAR MENU] key.
Press [9] key.
Press [5] key.
Or, hold down the [Map] key.
Sea chart menu (Map Setting) opens.
2 Press [3] key.

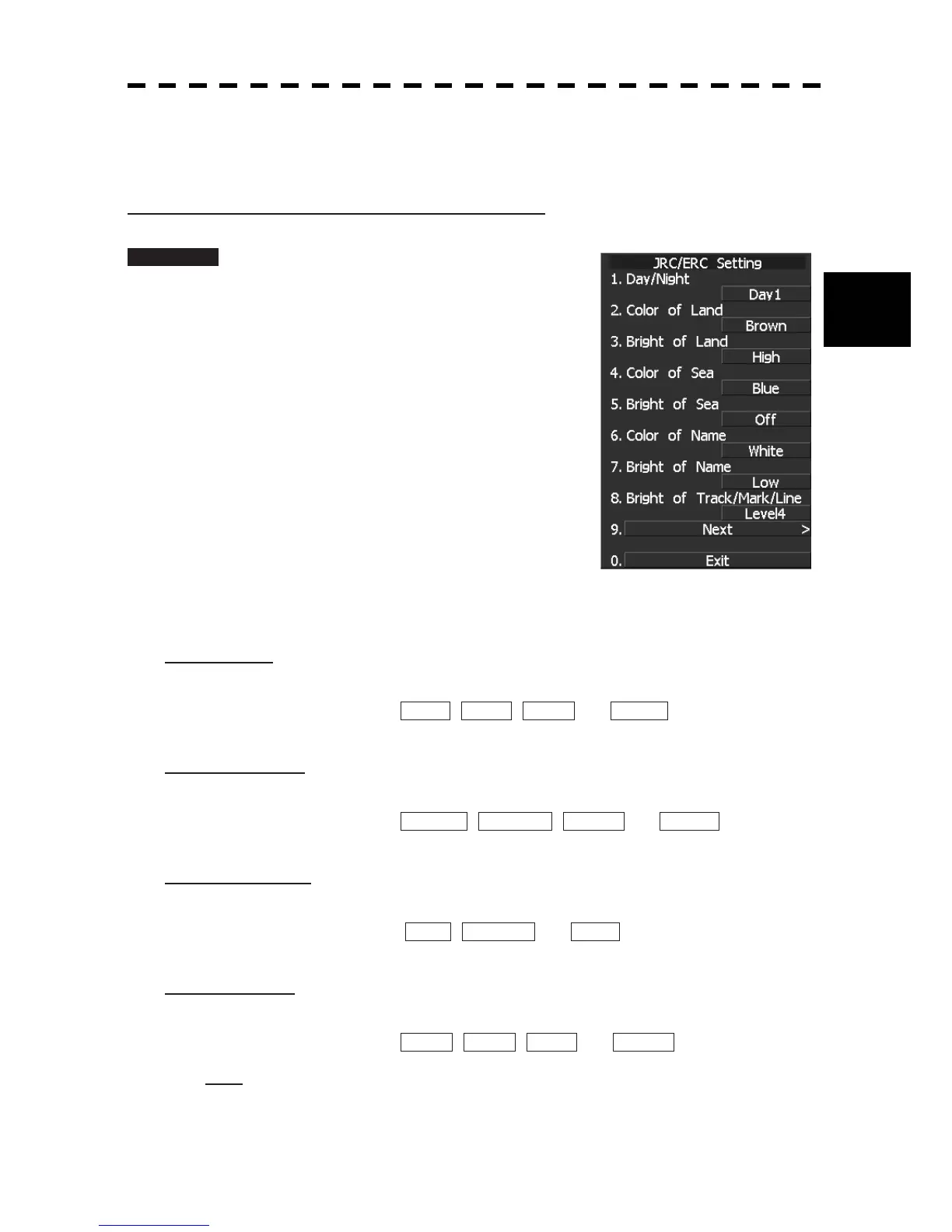

The JRC/ERC Setting Menu will appear.
Detail information about the colors and brilliance
of JRC/ERC chart display can be set by changing
the settings of the menu items.
The data of colors and brilliance can be stored for
each day/night mode.
[1] Day/Night
x Select a desired display mode before setting the colors and brilliance of chart display.
x There are four selection items: DAY1 , DAY2 , DUSK , and NIGHT .
[2] Color of Land
x Select the color of land display.
x There are four selection items: BROWN , YELLOW , GREEN , and WHITE .
[3] Bright of Land
x Select the brilliance of land display.
x There are three selection items: LOW , MEDIUM , and HIGH .
[4] Color of Sea
x Select the color of sea display.
x There are four selection items: GRAY , CYAN , BLUE , and GREEN .
Note:
This function is available on the plotter mode only.
