8.4 REPLACEMENT OF MAJOR PARTS
830
8
yyyy
yyyy
Step 3: Replace the magnetron.
Remove the screws (M4X10, at 4 places) and
remove the magnetron cover.
Remove the screws (M4X12, at 2 places) and
remove the magnetron cable.
Use a shielded screw driver.
Metal (tools) may deteriorate if they
come in contact with the magnetron.
Remove the screws (M4X12, at 4 places) and
remove the magnetron.
Do not lose the removed screws.
Set the new magnetron and cable in place.
Reverse the order to complete the procedure.
Make sure that all bolts and screws are tightened again, and all cables are properly re-connected.
This completes the magnetron replacement procedure.

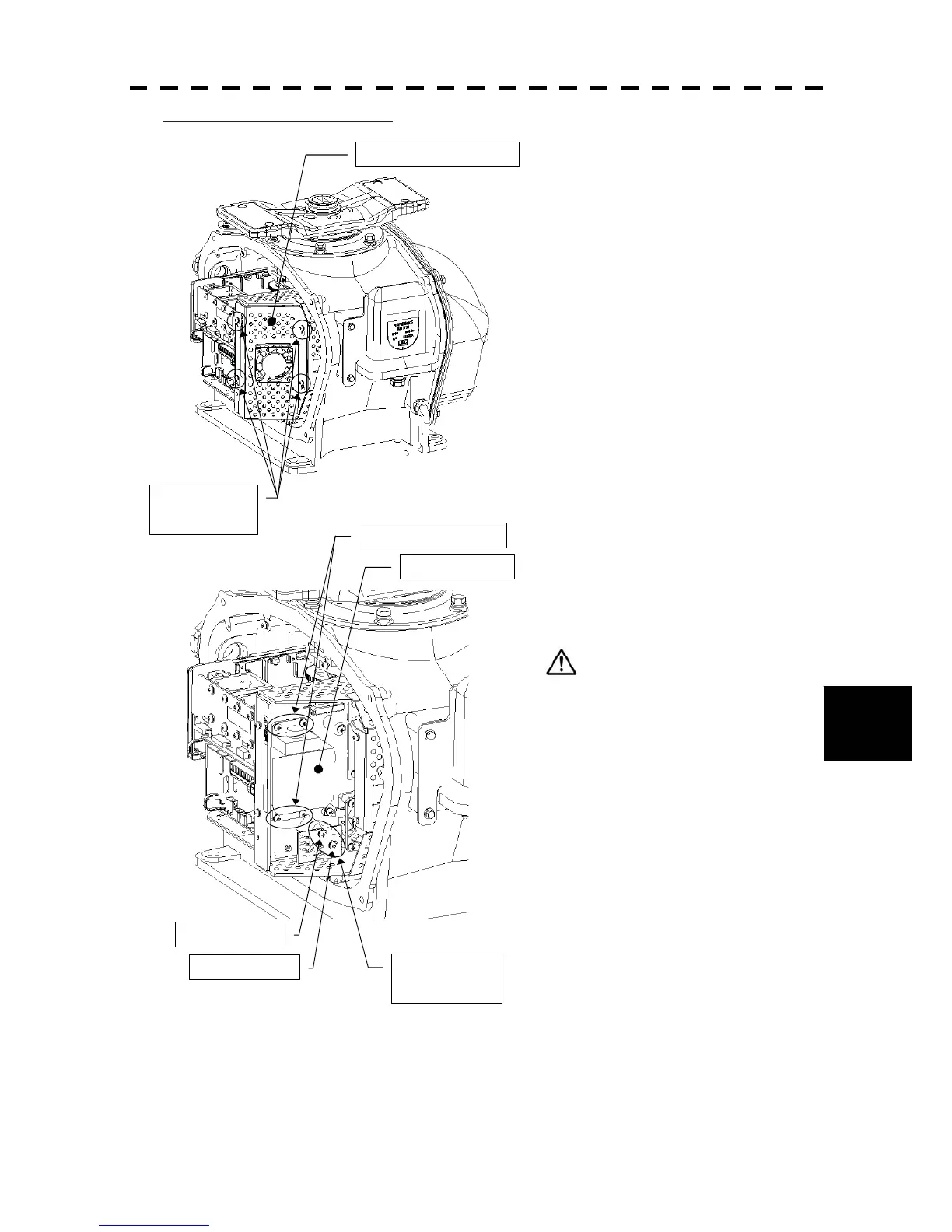

Screws
(4 places)
Magnetron cover
Magnetron
Screws (4 places)
Cable: yellow
Cable: green
Screws
(2 places)
