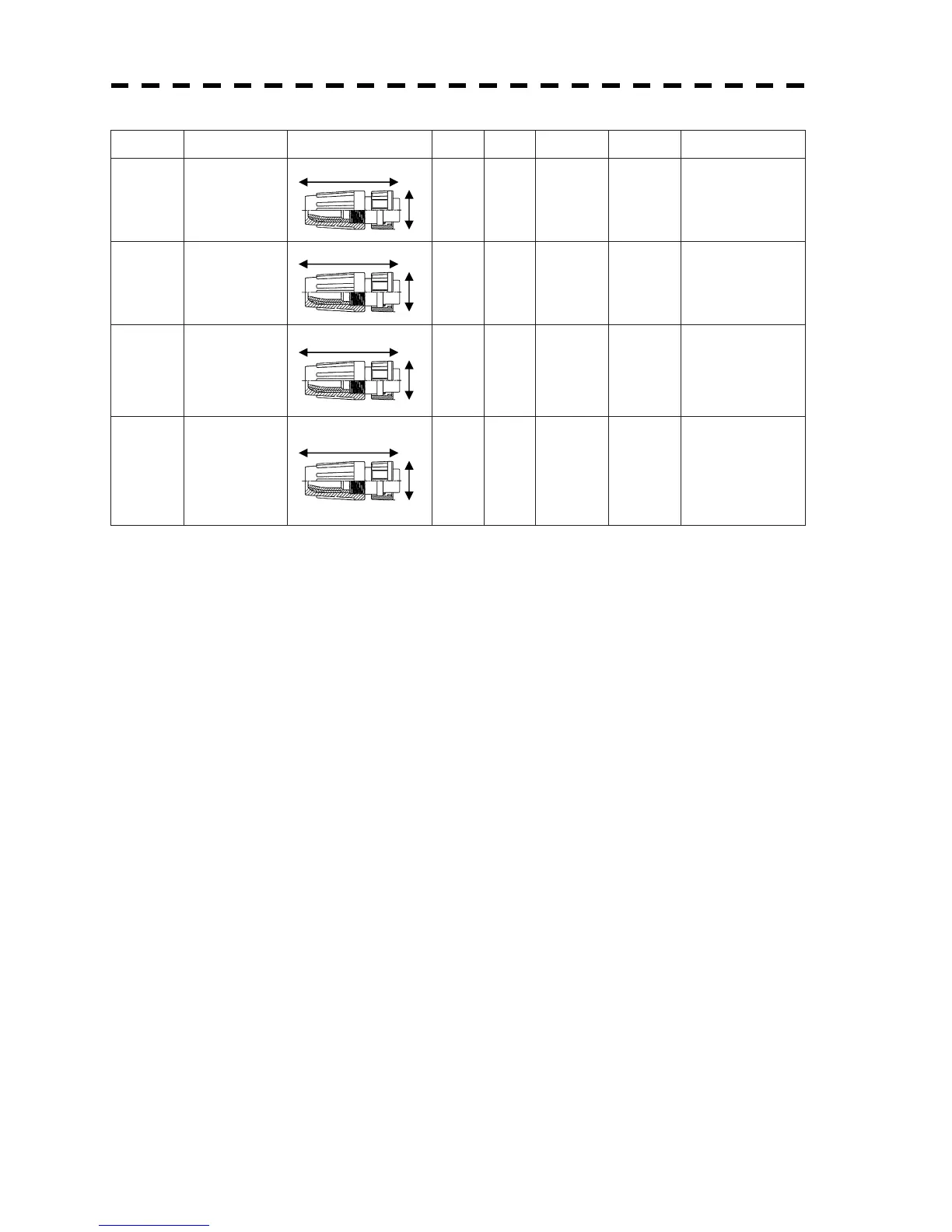

7ZXRD0027 : Processor unit NDC-1460
Name
Type㧛Cde
Shape (mm) In use Spare Parts No. Loccation Application
Connector
LTWBD-
06BFFA-LL7001
(5JCDX00032)
1 1 P3
Inside
processing
unit
Mainly for GPS
connection
Connector
LTWBD-
08BFFA-LL7001
(5JCDX00034)
1 1 P5
Inside
processing
unit
Mainly for
connecting course
equipment such as a
GPS compass
Connector
LTWBD-
07BFFA-LL7001
(5JCD00033)
1 1 P6
Inside
processing
unit
For AIS connection
For connecting
other external
devices when the
AIS is not used
Connector
LTWCD-
14BFFA-LL7001
(5JCDX0052)
1 1 P9
Inside
processing
unit
For connecting
external devices
For acquiring 2-axis
logs, current data,
and wind direction
data
44.0
18.0
44.0
18.0
44.0
18.0
44.0
18.0
