JMA-9172-SA Instruction Manual > 2.CONTROL PANEL KEYS and SOFTWARE BUTTONS > 2.3 FUNCTIONS OF SOFTWARE
BUTTONS
Interswitch connection change
This button is displayed when the interswitch is connected. This button indicates the
connection status of the scanner unit that is connected to the indicator.
If the button is clicked in the transmission standby state, the menu for changing the
connection state between the scanner unit and the indicator is displayed. The connection
state of the scanner unit and indicator cannot be changed unless the master indicator is in
a standby state.
Refer to the Appendix A NQE-3141 Interswitch Unit Interswitch (Optional) Instruction
Manual that is attached for the setting method. This button is not displayed if the
interswitch is not connected.Un-available for evaluation model.
Transmission pulse length switching
The transmission pulse length is switched whenever this button is clicked. Three types
of pulses are available, short pulse (SP), middle pulse (MP), and long pulse (LP). The
pulse length and repetition frequency vary even for the same short pulse, according to
the range that is used and it is displayed as , .
Azimuth display mode switching
The azimuth display is switched whenever this button is clicked.
(Head Up) ā (North Up) ā (Course Up) ā
If the button is clicked for 2 seconds, the GYTO Setting menu is displayed.
Lower left of the display
:Indicates a transmission state. If this button is clicked in this state,
the equipment is set to a standby state.

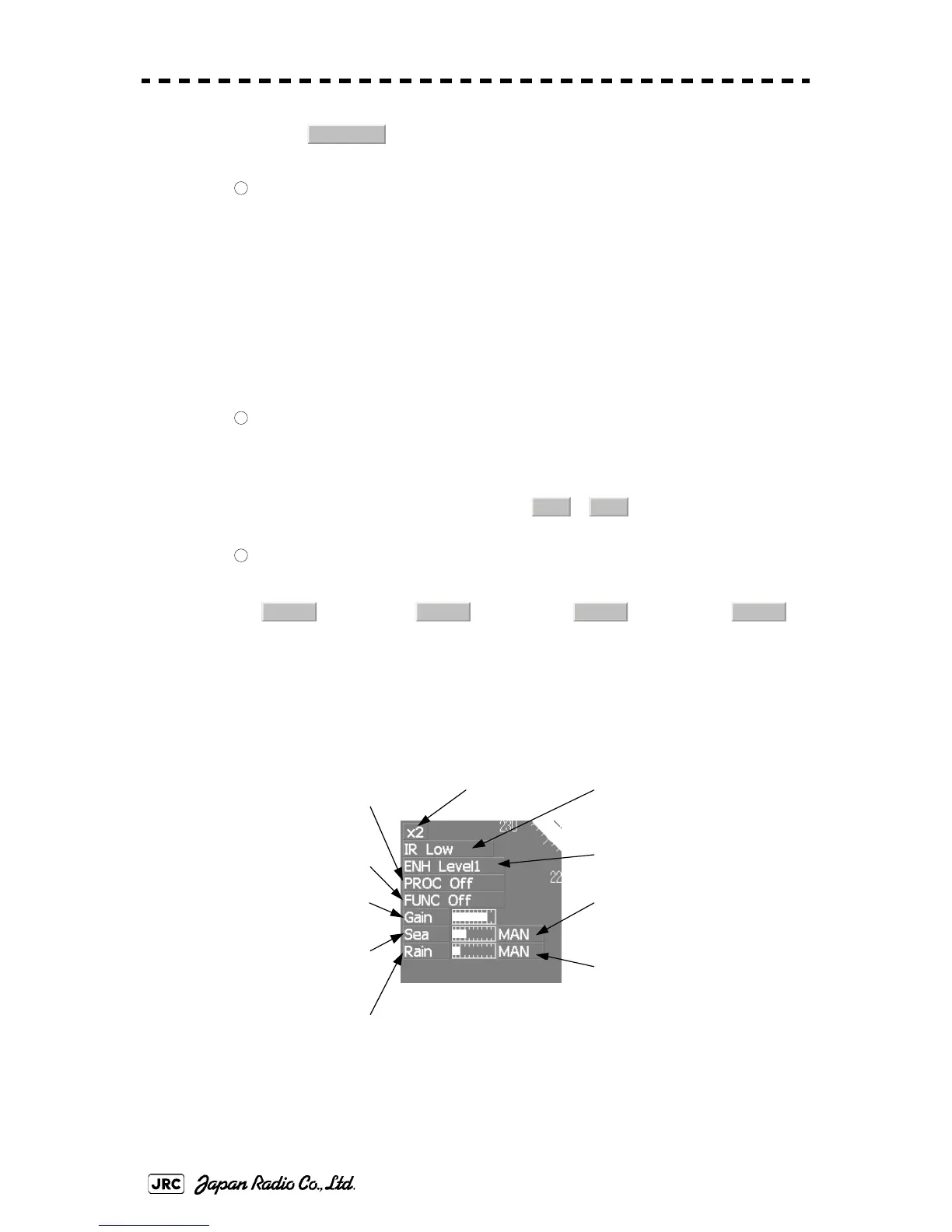

ā¢ Target enhance (EN H)
mode switching
ā£ Radar video processing (PROC)
mode switching
ā¤ Function (FUNC)
mode switching
ā Double zoom switching
ā” Interference rejection (IR)
mode switching
ā¦ Sea clutter suppression (Sea)
adjustment
ā§ Rain / snow clutter
suppression (Rain)
adjustment
āØ Sea clutter suppression (Sea)
mode switching
ā© Rain and snow clutter
suppression (Rain)
mode swi tching
ā„ Gain adjustment
