JRC JMA-9172-SA User Manual

2－20
JMA-9172-SA Instruction Manual > 2.CONTROL PANEL KEYS and SOFTWARE BUTTONS > 2.3 FUNCTIONS OF SOFTWARE
BUTTONS
, and Sea clutter suppression (Sea) mode, Rain and snow clutter
suppression (Rain) mode switching
Use these functions to switch to the manual or automatic mode of sea clutter
suppression, rain and snow clutter suppression, and tune. The bar on the left side
indicates the position of the dial.
The mode is switched to (manual) / (automatic) whenever the
button is clicked. If rain and snow clutter suppression is switched to an automatic mode,
sea clutter suppression is switched to an automatic mode also.

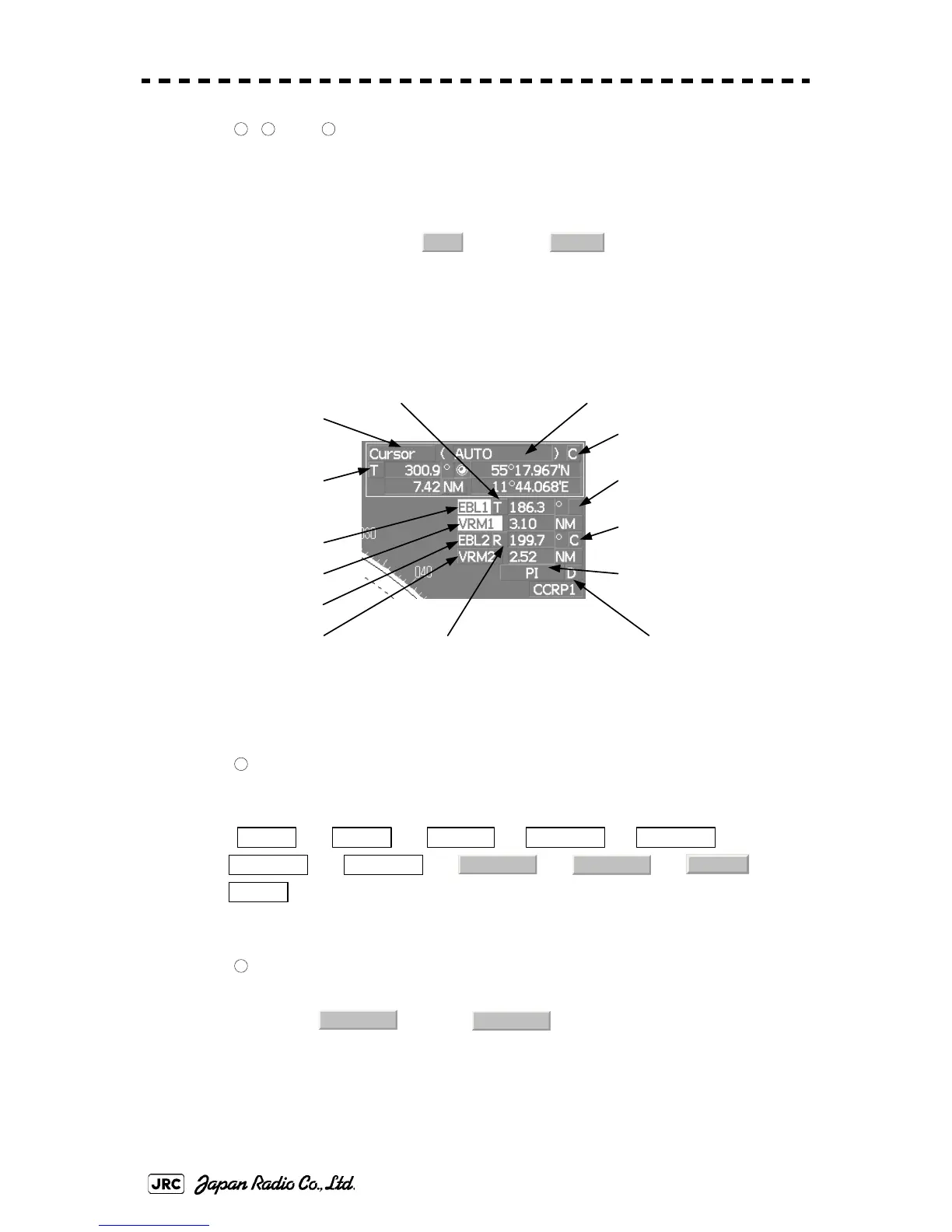

Upper Right of the display
Cursor mode switching
The mode of the function that uses the cursor is switched whenever this button is
pressed.
⇒ ⇒ ⇒ ⇒ ⇒
⇒ ⇒ ⇒ ⇒ ⇒
Mark font / line pattern switching
This function switches a mark font / line pattern. If this button is clicked while the cursor
mode is (mark) or (line), the mark font / line pattern is
changed.
10
11
12
MAN
AUTO
④ Cursor bearing
numeric value display
true / relative switching
⑤ EBL1 adjustment
⑥ VRM1 adjustment
⑪ EBL1 starting point
mode switching
① Cursor mode switching
⑫ EBL2 starting point
mode switching
⑬ Parallel index line
setting
⑭ Parallel index line
starting point mode
switching
⑩ EBL2 numeric value indication
true / relative switching
③ Mark color / line color
switching
⑧ VRM2 adjustment
⑦ EBL2 adjustment
⑨ EBL1 numeric value indication
true / relative switching
② Mark font / line pattern
switching
1
AUTO
ACQ TT
ACT AIS
TGT Data
CNCL TT
DEACT AIS
CNCL Data
□
-------
Property
AUTO
2
□
-------
