[IV] Gate Display
The gate displays an area monitoring a target using the Target Tracking function. This radar equipment allows
the gate size to change automatically according to target range and size. User can check the gate size using the
following function.
Procedures 1 Open the TT Test Menu by performing the following menu operation.
TT
→ TT Test Menu
2 Left-click the item button of Gate Display .
The gate display mode is switched.
On : Gate is displayed
Off : Gate is not displayed
3 Display the numeric value of a target according to Section 5.2.3.

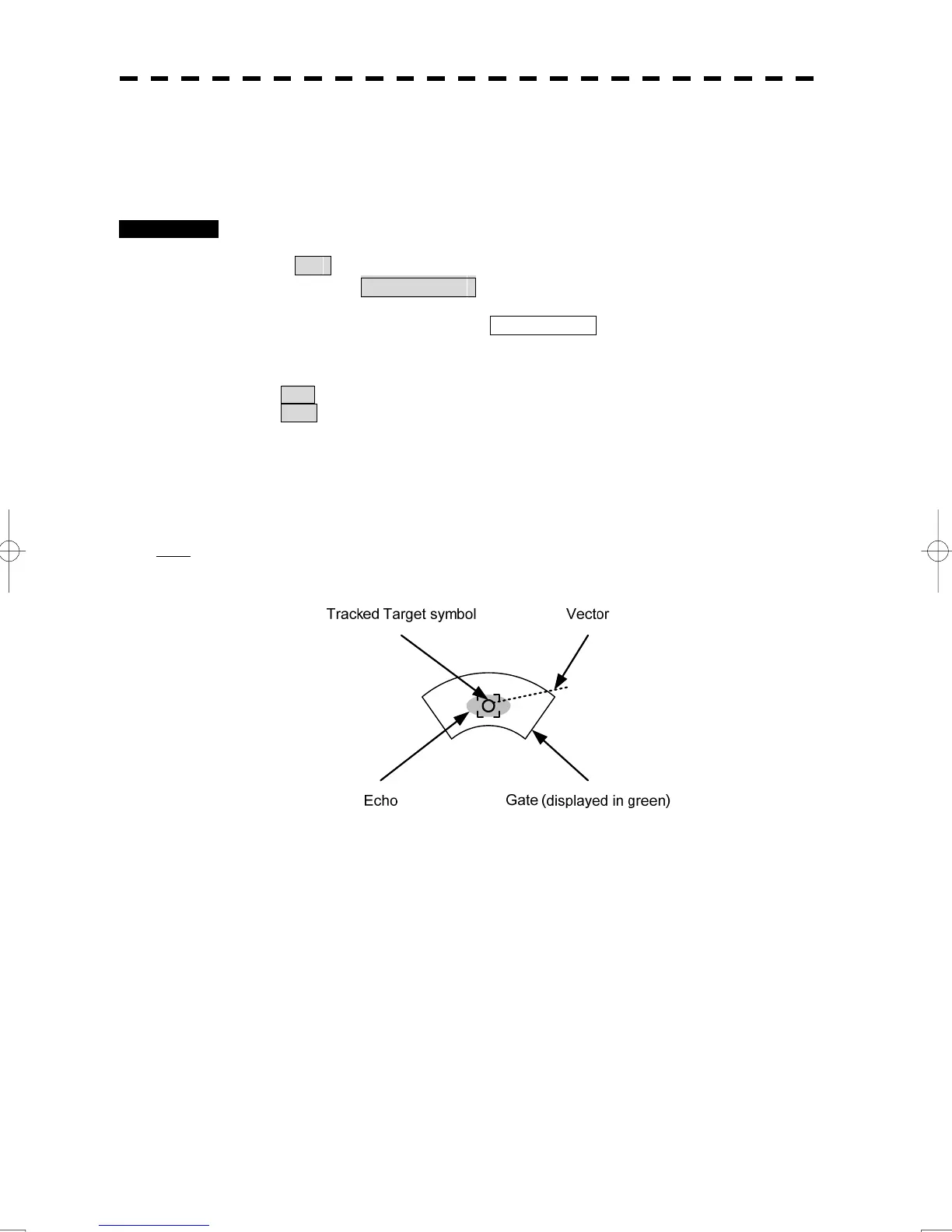

The numeric value of the target will be displayed, and the tracked target symbol will be
enclosed in a green gate.
Note:
The Target Tracking can display the gate of two targets simultaneously.
