JUKI SC-910N Engineer's Manual

– 57 –
((
((
( Adjustment of the pedal stroke (Function setting Nos. 39 to 44 and 48)
1. Pedal stroke at the start of rotation (Function setting No. 39)
Stroke between the pedal in its neutral position and starting position of rotation of the sewing machine can be
adjusted.
Adjusting range
1.0 to 5.0 [mm] <0.1 / mm>
2. Low speed section of the pedal (Function setting No. 40)
Stroke of the low speed section can be adjusted by operating the pedal.
Adjusting range
1.0 to 10.0 [mm] <0.1 / mm>
3. Starting position of lifting presser foot by pedal (Function setting No. 41)
Stroke between the pedal in its neutral position and starting position of lifting presser foot can be adjusted.
(When lifting presser foot by pedal is applied.)
Adjusting range
- 6.0 to -1.0 [mm] <0.1 / mm>
4. Setting of starting position of lowering presser foot (Function setting No. 42)
Stroke between the pedal in its neutral position and starting position of lowering presser foot can be
adjusted.(When the automatic neutral presser foot lifting function is used.)
Adjusting range
0.8 to 5.0 [mm] <0.1 / mm>
5. Pedal stroke 2 for starting thread trimming (Function setting No. 43)
Stroke between the pedal in its neutral position and starting position of thread trimming can be adjusted.
(When the function of lifting presser foot by pedal is provided.)
Adjusting range
-6.0 to -1.0 [mm] <0.1 / mm>

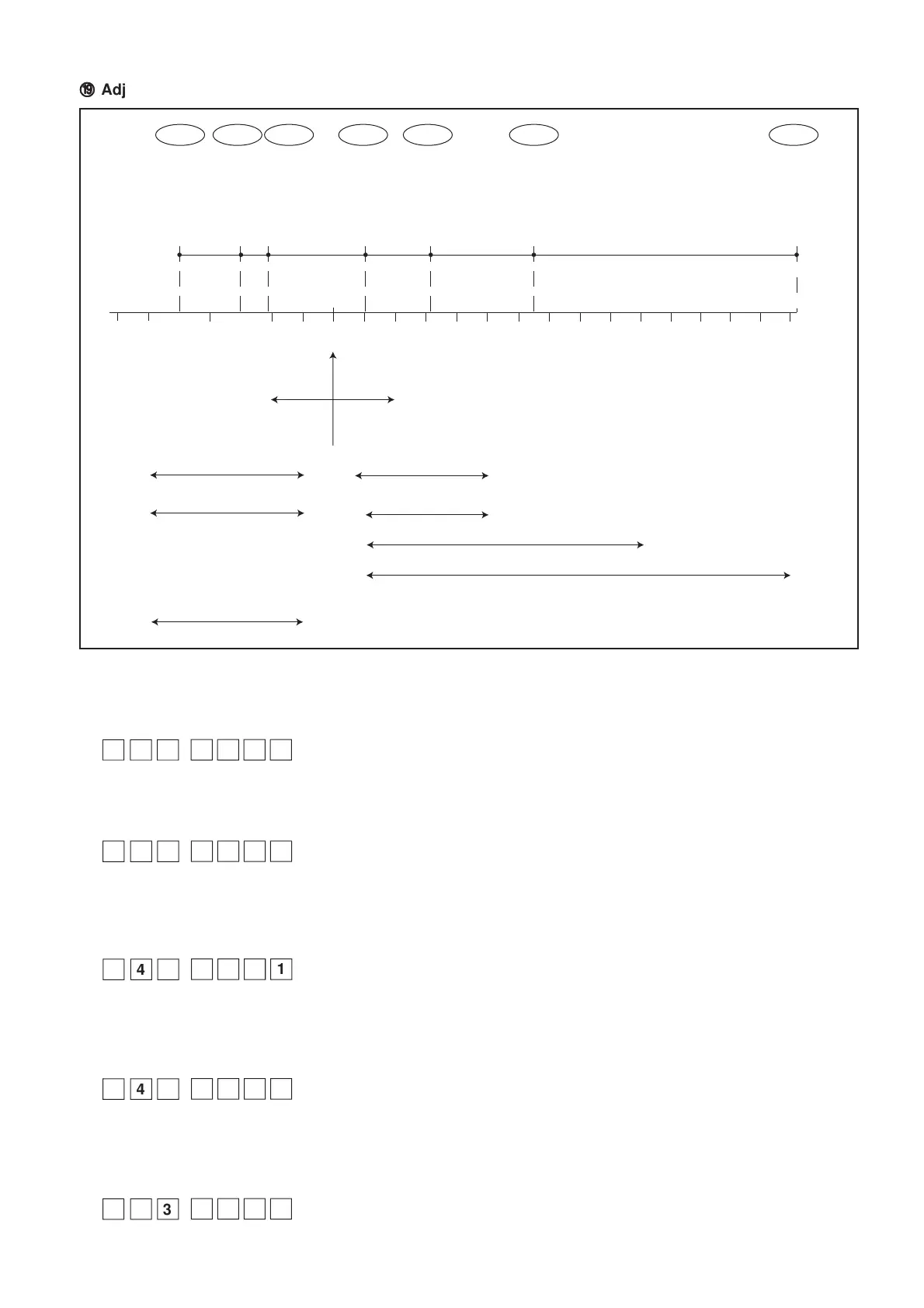

-7 -6 -5 -4 -3 -2 -1 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
(mm)
No. 48
No. 43
No. 41
No. 42
No. 39
No. 40
No. 44
No. 43 No. 48 No. 41 No. 39No. 42 No. 40 No. 44
Start of thread trimming (PFL)
Start of thread
trimming (Standard)
Start of lifting presser foot (PFL)
(When automatic neutral presser foot lifting function is used.)
Start of lowering presser foot
Start of rotation of sewing machine
Low speed section
Reaching point of highest speed
Low speed
section
Speed in compliance with depressing
amount of pedal
Direction of depressing
back part of pedal
Direction of depressing front part of pedal
Pedal neutral position
Adjustable range
9
3
3
0
0
6
4
0
1
-
2
4
1
2
1
4
0
3
5
-
4
1
