JUKI TR6SNV User Manual

Maintenance Guide
9-19
 Adjusting H. P offset (shuttle position)

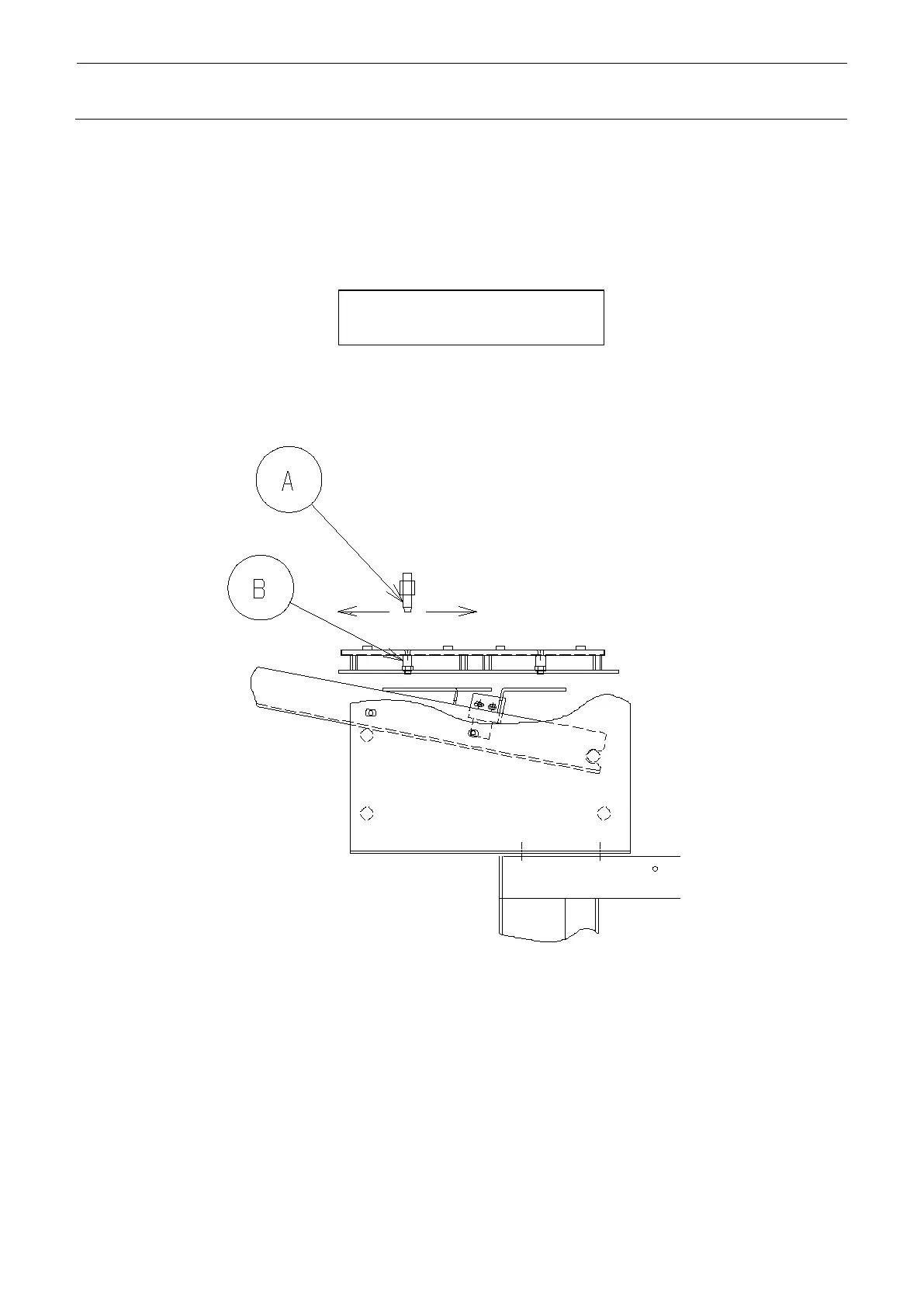

Here you adjust the positions of the X-axis suction pad (A) and the shuttle suction pad (B).
Use → and ← buttons to adjust the position in the X direction.
Use the HEAD button to lower the suction head of the X-axis and check the position of the
suction pad.
Press the ENTER button to adjust the tray reference position.
Fig. 9-20-3 Display of H.P offset adjustment
Fig. 9-20-4 H.P offset adjustment
19. XY ADJ
H.P Offset X=0.0
