Maintenance Guide
3-7

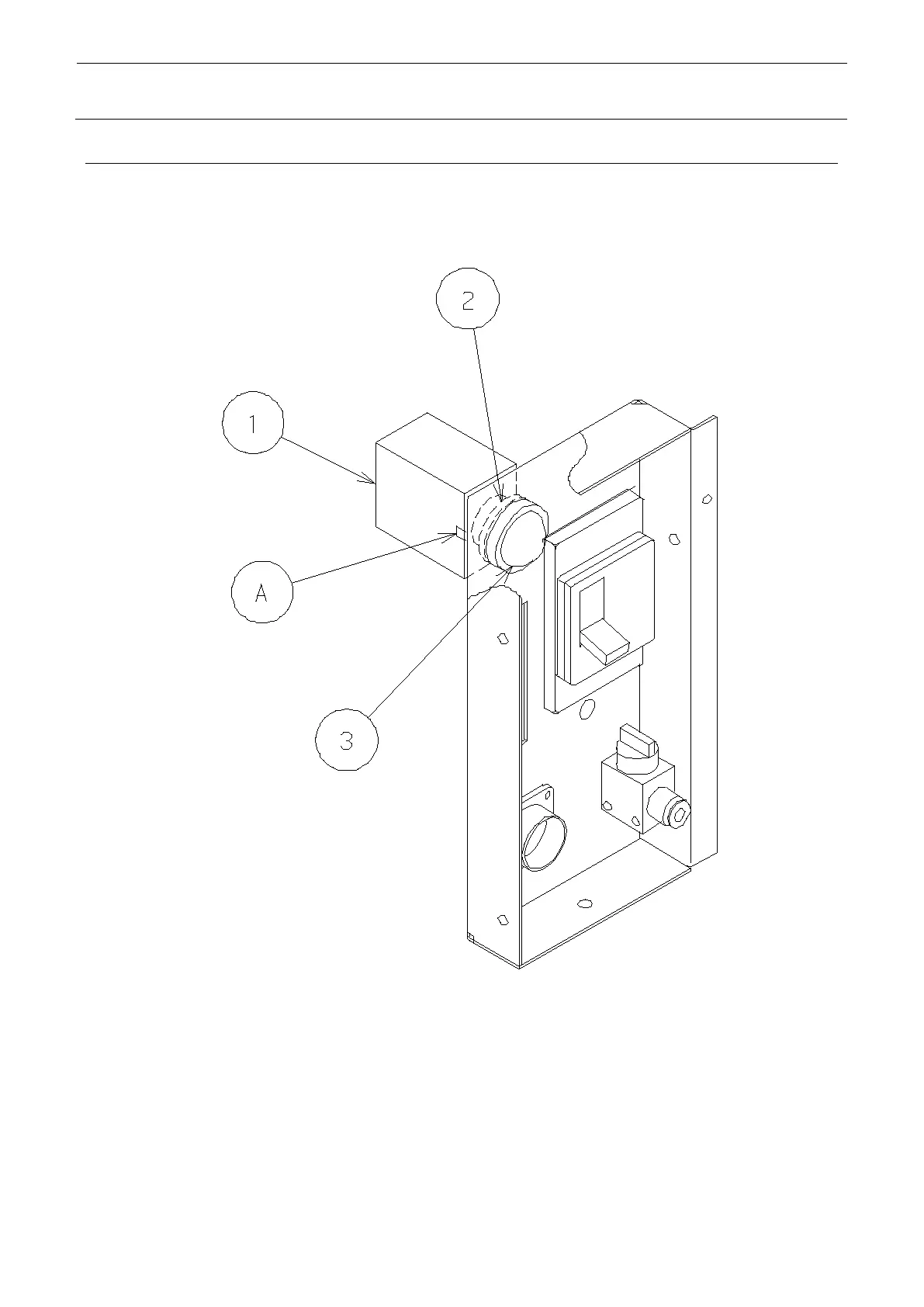

3-6. Replacement of power lamp
Pushing the lug at the A position (on both sides), remove the socket section .
Remove the ring , and remove the lens section .
