JUKI TR6SNV User Manual

Maintenance Guide
7-5

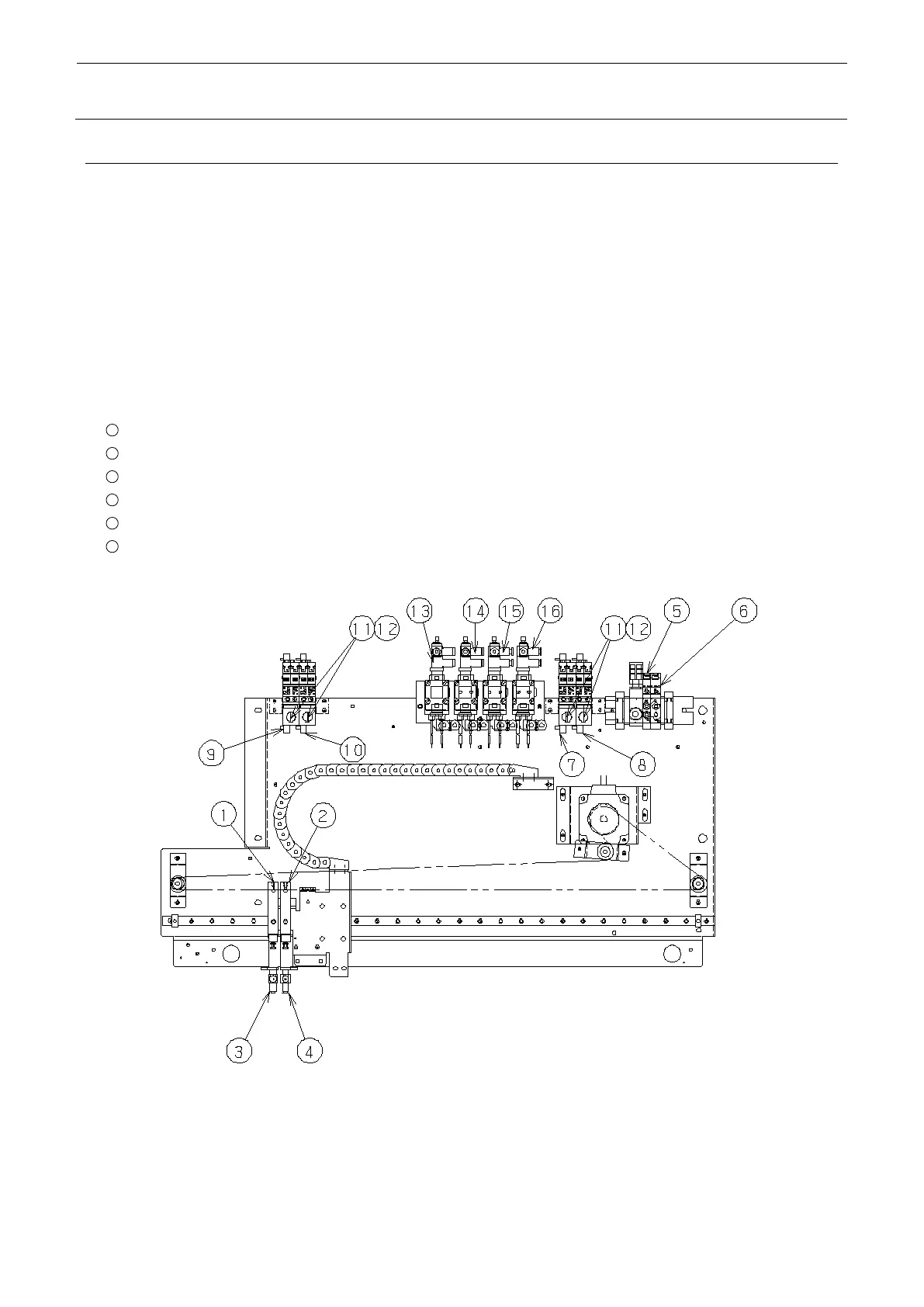

7-5. Layout diagram of pneumatic component in X unit section
 Free-mount cylinder head 2 (part No.: PA0603004A0)
 Free-mount cylinder head 1 (part No.: PA0603004A0)
 Vacuum pad head 2 (part No.: PX500060000)
 Vacuum pad head 1 (part No.: PX500062000)
 Solenoid valve head 2 (part No.: PV150209300)
 Solenoid valve head 1 (part No.: PV150209300)
 Head L ejector (part No.: 40045132)
 Head R ejector (part No.: 40045133)
 SPAD L ejector (part No.: 40045158)
 SPAD R ejector (part No.: 40045159)
11
Filter element housing
12
Filter element (part No.: PV920001000)
13
Solenoid valve head 2 DOWN (part No.: HM001780010)
14
Solenoid valve head 2 UP (part No.: HM001780010)
15
Solenoid valve head 1 DOWN (part No.: HM001780010)
16
Solenoid valve head 1 UP (part No.: HM001780010)
