JUKI TR6SNV - Mounting a Shuttle Unit

Maintenance Guide
1-3
1-3. Mounting a shuttle unit

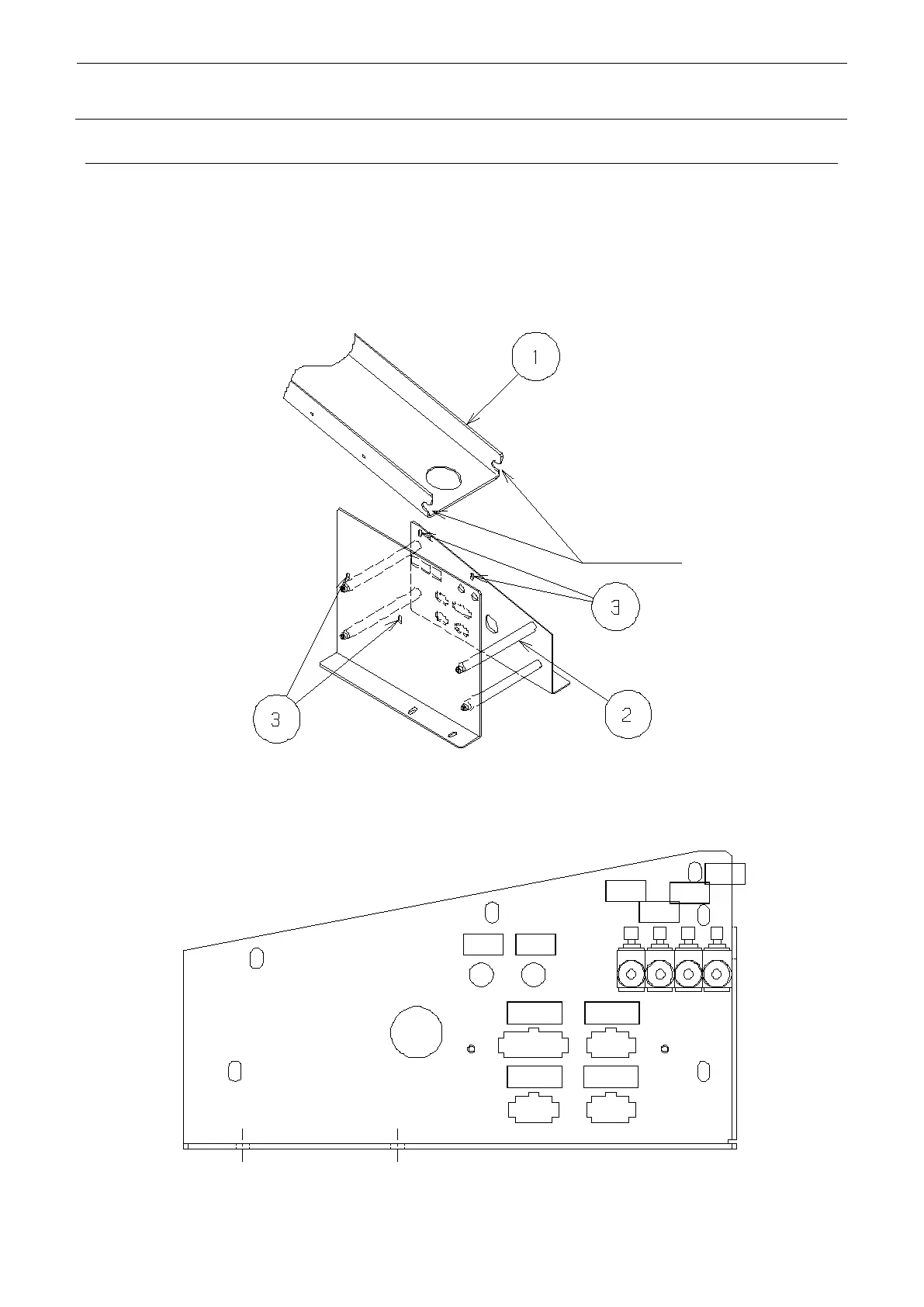

Put the U-groove section of S base  into the S base joint SH  to the depth.
Mount the shuttle using four shuttle mounting screws .
Put the air tube and connector into the marker position as shown in the diagram.
S BASE Ｕ溝
CN0 05
CN0 39
CN0 40
CN0 42
BGAR
BGAL
PADR
PADL
VACL
VACR
S base U-groove
