Commissioning
29

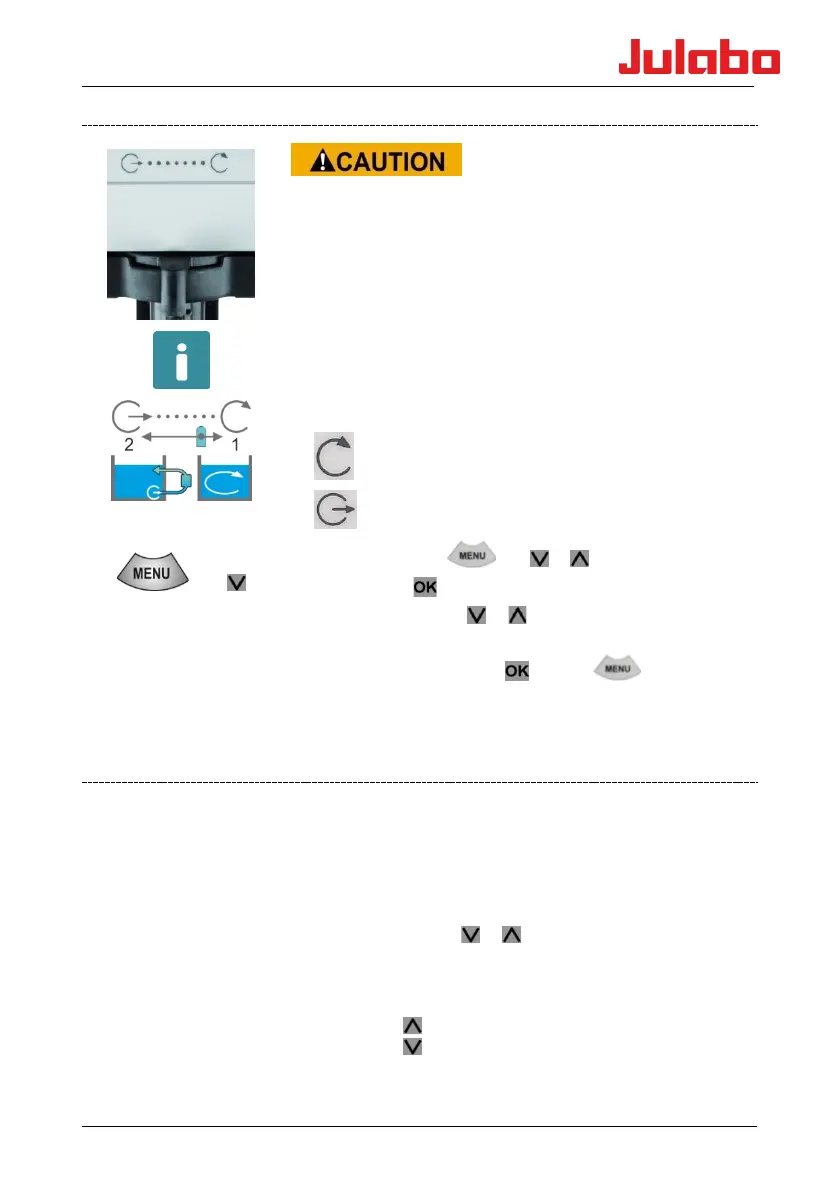

9.4 Pump settings
1 x
Pu
Risk of burns due to hot bath fluid
When adjusting the pump flow, make sure that no bath fluid is
spilled from the bath opening due to circulation. For internal
temperature control (external pump connections closed), the
adjusting lever is to be set first to reduced internal circulation (2)
before the circulator is started. After starting the circulator,
circulation can be optimized through adjustment. To meet all the
requirements for internal and/or external temperature control tasks,
the direction of the pump flow is continuously adjustable.
For this purpose the lever below the head of the circulator can be
adjusted from:
1.)
Max. internal pump flow to...
2.)
Max. external pump flow.
1. Select
Pu with -and or keys,
2. Confirm with .
3. Set pump speed with
or in the range of
30 % - 100 %, even during the operation.
The set value is saved with the key. The key is used to
exit the dialog and return to the previously set value.
9.5 Adjusting of temperature setpoint
Factory setting: 10 °C
Example:
Changing the desired
value from 33.00 to
45.50
The temperature can be set when the device has been
started or stopped.
The set value is saved so that it will be retained even after a
power outage.
1. Press the edit key
or briefly to switch from
displaying the actual value to the desired value. The
digits before the decimal point flash.
2. Change the value:
Press the
key to set a higher value.
Press the
key to set a lower value.
3. Press the key briefly for single steps, press and hold the
key to adjust the values quickly.
