E 11
0606.GB
4.3 Collecting and depositing loads
Z
Before lifting a load, the driver must ensure that it is correctly palletised and that the
capacity of the truck is not exceeded.
– Drive the truck with forks as far as possible underneath the load.
Z
With the two-stage Duplex mast (ZZ) a short, centre-mounted free lift cylinder initially
lifts the load carriage (free lift) without changing the overall height of the truck.
Lifting

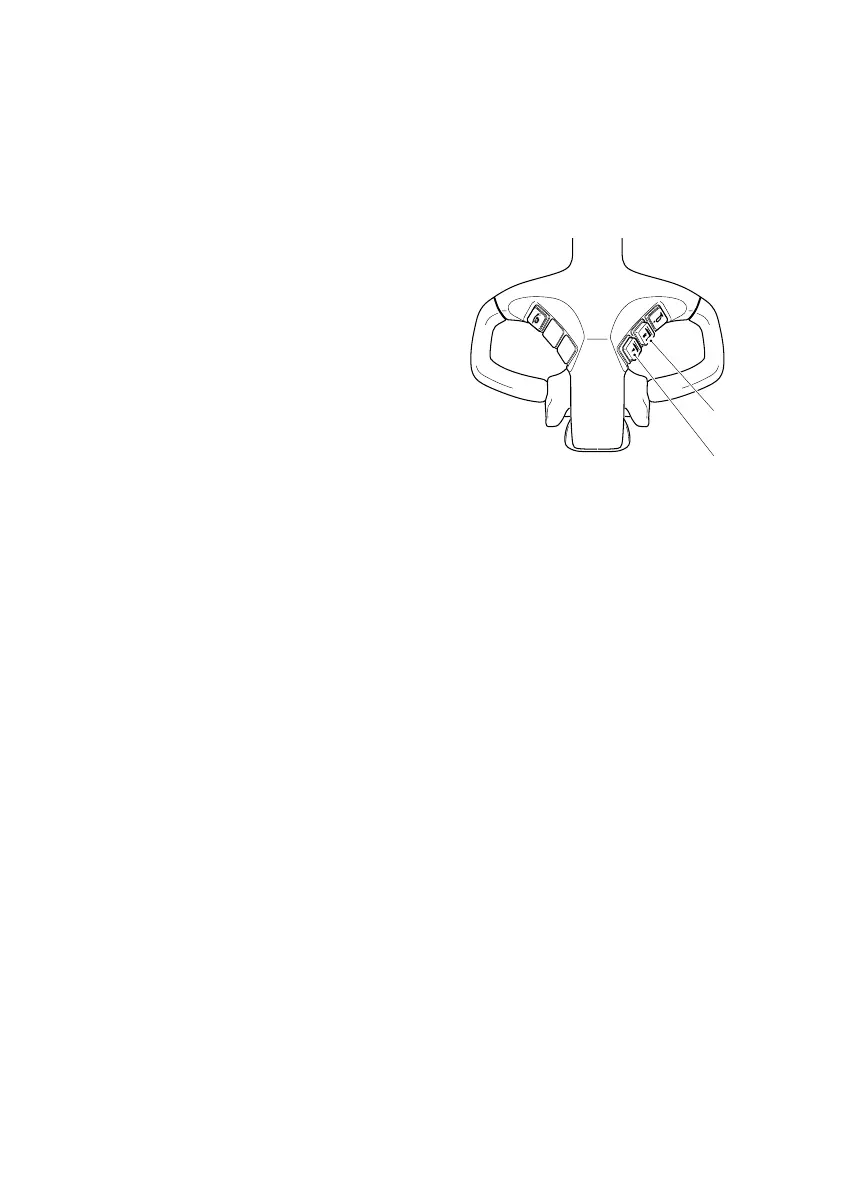

– Press the “Raise Load Forks” switch
(9) until the required lifting height has
been reached.
Z
The lift speed can be infinitely controlled
via the switch stroke (8 mm).
Short switch stroke= slow lift
Long switch stroke= fast lift
Lower
– Press the “Lower Load Forks” switch
(10) until the required lifting height has been reached.
Z
The lowering speed can be infinitely controlled via the switch stroke (8 mm).
Short switch stroke= slow lower
Long switch stroke= fast lower
M
Avoid fast and sudden depositing of the load.
10
9
E 11
0606.GB
4.3 Collecting and depositing loads
Z
Before lifting a load, the driver must ensure that it is correctly palletised and that the
capacity of the truck is not exceeded.
– Drive the truck with forks as far as possible underneath the load.
Z
With the two-stage Duplex mast (ZZ) a short, centre-mounted free lift cylinder initially
lifts the load carriage (free lift) without changing the overall height of the truck.
Lifting
– Press the “Raise Load Forks” switch
(9) until the required lifting height has
been reached.
Z
The lift speed can be infinitely controlled
via the switch stroke (8 mm).
Short switch stroke= slow lift
Long switch stroke= fast lift
Lower
– Press the “Lower Load Forks” switch
(10) until the required lifting height has been reached.
Z
The lowering speed can be infinitely controlled via the switch stroke (8 mm).
Short switch stroke= slow lower
Long switch stroke= fast lower
M
Avoid fast and sudden depositing of the load.
10
9
