Jungheinrich EJC 112 User Manual

E 23
0606.GB

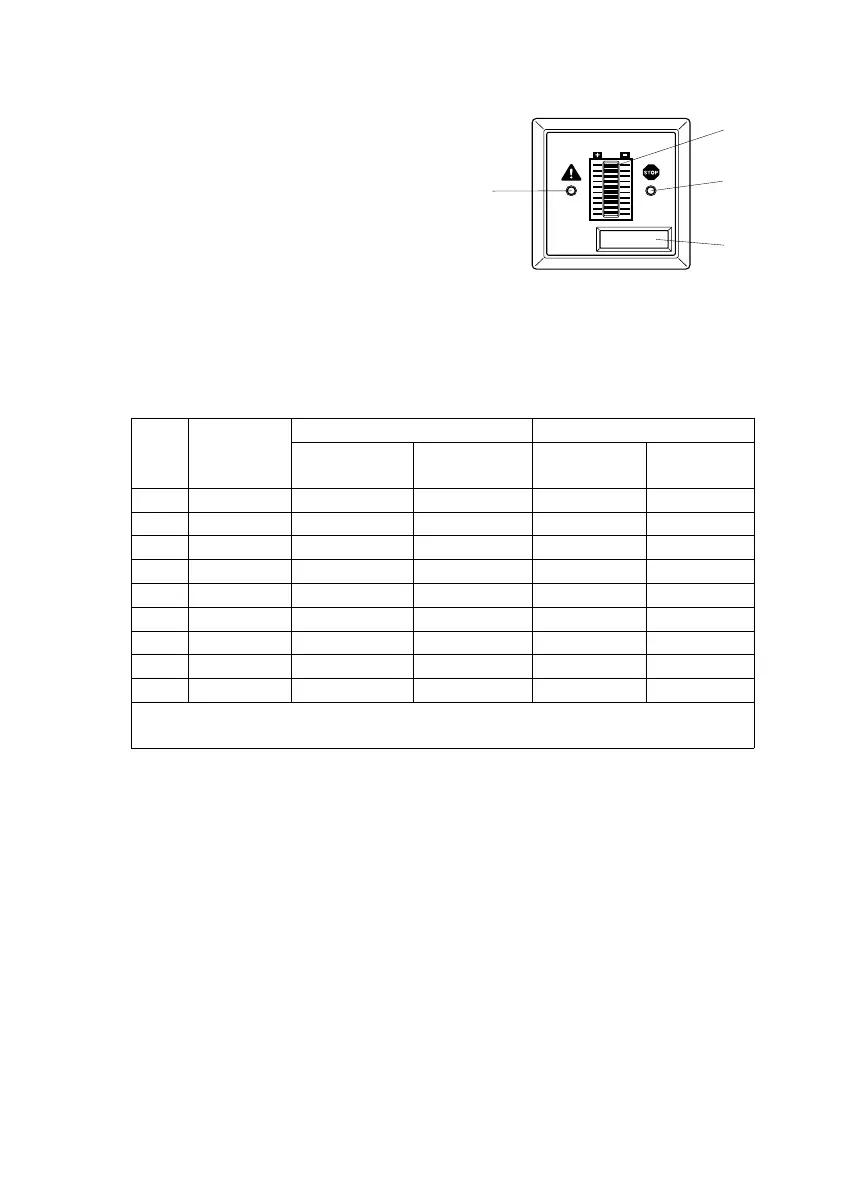

7 Display instrument (CANDIS) (o)
The instrument indicates:
– Battery residual charge status
(LED bars (22)),
– Service hours
(LC display (24)).
In addition, service messages for the elec-
tronic components and parameter changes
are displayed.
Discharge status indication
Setting limits for the additional “Warning” (21) and “Stop” (23) displays will depend on
the battery type set.
Num-
ber
Bars
Charge
status
Wet battery Maintenance-free battery
LED (yellow)
Warning
LED (red)
Stop
LED (yellow)
Warning
LED (red)
Stop
10 90.1- 100% Off Off Off Off
9 80.1 - 90% Off Off Off Off
8 70.1 - 80% Off Off Off Off
7 60.1 - 70% Off Off Off Off
6 50.1 - 60% Off Off Off Off
5 40.1 - 50% Off Off On Off
4 30.1 - 40% Off Off On On
3 20.1 - 30% On Off On On
2 10.1 - 20% On On On On
Avoid dropping below the 20% limit for wet batteries or the 40% limit
for maintenance-free batteries.
21
22
23
24
E 23
0606.GB
7 Display instrument (CANDIS) (o)
The instrument indicates:
– Battery residual charge status
(LED bars (22)),
– Service hours
(LC display (24)).
In addition, service messages for the elec-
tronic components and parameter changes
are displayed.
Discharge status indication
Setting limits for the additional “Warning” (21) and “Stop” (23) displays will depend on
the battery type set.
Num-
ber
Bars
Charge
status
Wet battery Maintenance-free battery
LED (yellow)
Warning
LED (red)
Stop
LED (yellow)
Warning
LED (red)
Stop
10 90.1- 100% Off Off Off Off
9 80.1 - 90% Off Off Off Off
8 70.1 - 80% Off Off Off Off
7 60.1 - 70% Off Off Off Off
6 50.1 - 60% Off Off Off Off
5 40.1 - 50% Off Off On Off
4 30.1 - 40% Off Off On On
3 20.1 - 30% On Off On On
2 10.1 - 20% On On On On
Avoid dropping below the 20% limit for wet batteries or the 40% limit
for maintenance-free batteries.
21
22
23
24
