Jungheinrich EJC 112 User Manual

0307.GB
F 8
6 Maintenance Instructions
6.1 Prepare the truck for maintenance and repairs
All necessary safety measures must be taken to avoid accidents when carrying out
maintenance and repairs. The following preparations must be made:
– Park the truck securely (see Chapter E).
– Disconnect the battery (1) to prevent the truck from accidentally starting.
F
When working under a raised lift truck, secure it to prevent it from tipping or sliding
away. When raising the truck also refer to the instructions in the “Transport and
Commissioning” section.
6.2 Removing the front panel
– Open the battery panel.
– Remove the two screws (6).
– Carefully lift off the front panel (2).
6.3 Remove the drive panel

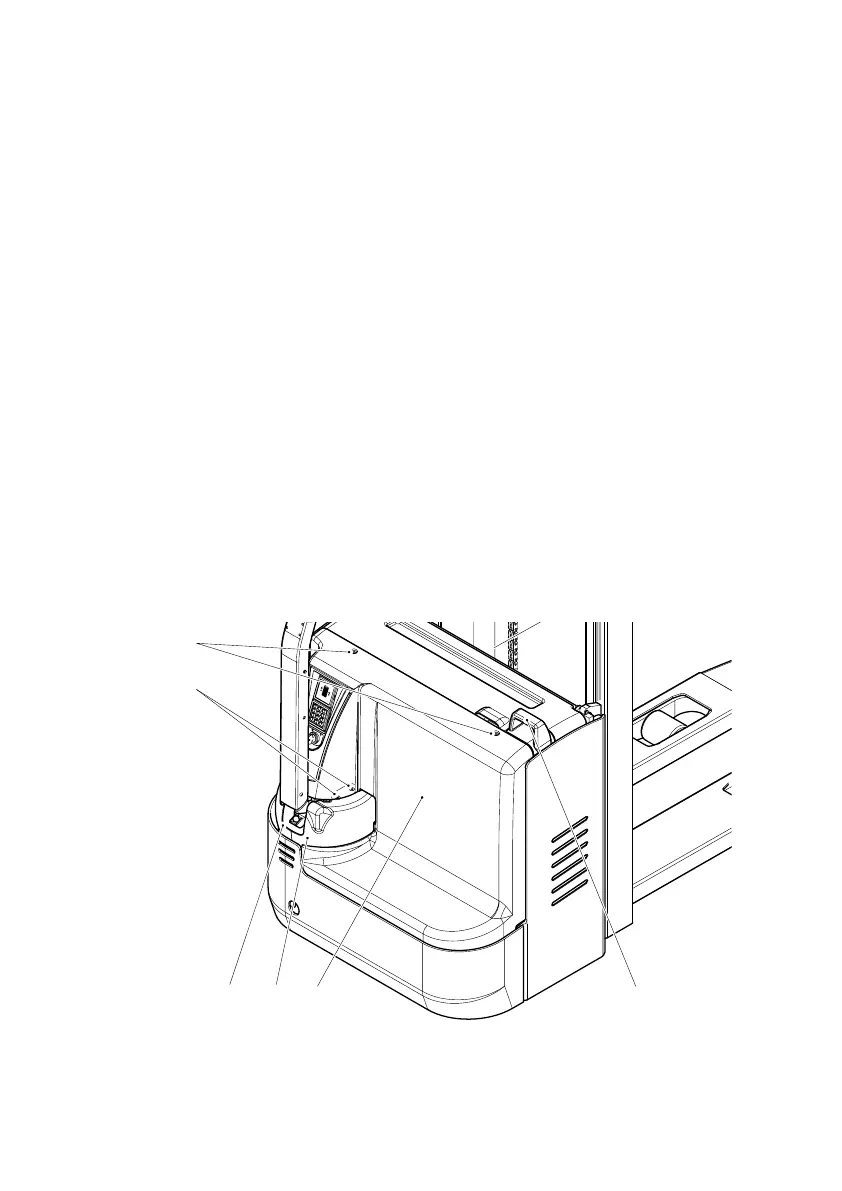

The drive panel consists of two halves (3 and 4).
– Turn the tiller to the left stop.
– Unscrew the two screws (5) with the Allen key size 6 (in accordance with DIN 911).
– Carefully remove the first panel half (3).
– Turn the tiller to the right stop.
– Unscrew the second panel half (4) and carefully remove it.
1234
5
6
0307.GB
F 8
6 Maintenance Instructions
6.1 Prepare the truck for maintenance and repairs
All necessary safety measures must be taken to avoid accidents when carrying out
maintenance and repairs. The following preparations must be made:
– Park the truck securely (see Chapter E).
– Disconnect the battery (1) to prevent the truck from accidentally starting.
F
When working under a raised lift truck, secure it to prevent it from tipping or sliding
away. When raising the truck also refer to the instructions in the “Transport and
Commissioning” section.
6.2 Removing the front panel
– Open the battery panel.
– Remove the two screws (6).
– Carefully lift off the front panel (2).
6.3 Remove the drive panel
The drive panel consists of two halves (3 and 4).
– Turn the tiller to the left stop.
– Unscrew the two screws (5) with the Allen key size 6 (in accordance with DIN 911).
– Carefully remove the first panel half (3).
– Turn the tiller to the right stop.
– Unscrew the second panel half (4) and carefully remove it.
1234
5
6
