Juniper EX4100 User Manual

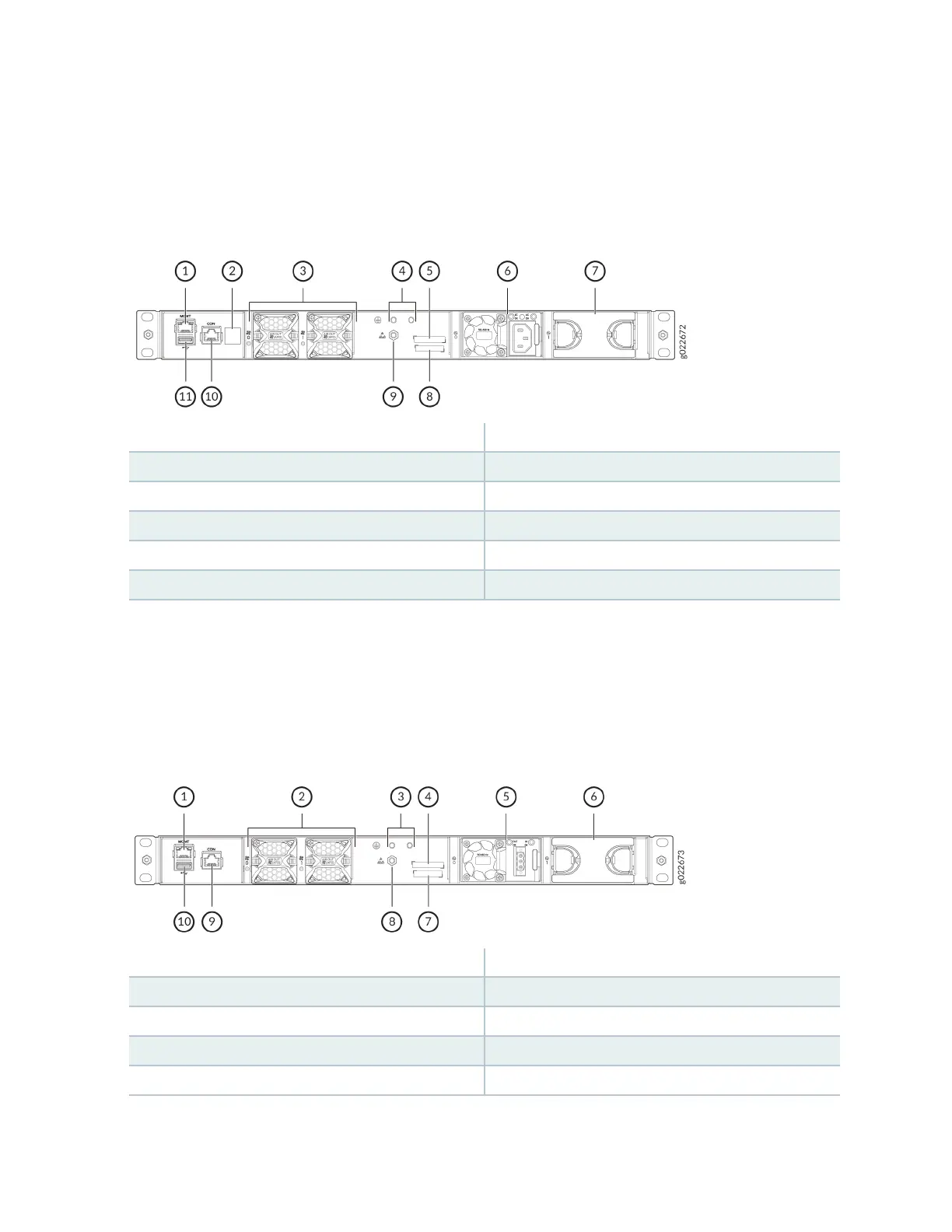

Figure 12 on page 9 shows the components on the rear panel of EX4100-48P or EX4100-48T switch.
Figure 12: Components on the Rear Panel of an EX4100-48P or EX4100-48T Switch with AC Power
Supply
1—
RJ-45 management port (labeled MGMT)
7—
Empty slot for power supply
2—
Claim code label
8—
Serial number
3—
Fan modules
9—
Electrostac discharge (ESD) point
4—
Protecve earthing terminal
10—
RJ-45 console port (labeled CON)
5—
CLEI code label
11—
USB 2.0 Type A port
6—
AC power supply
Figure 13 on page 9 shows the components on the rear panel of EX4100-48T or EX4100-24T switch
with DC power supply.
Figure 13: Components on the Rear Panel of an EX4100-48T or EX4100-24T Switch with DC Power
Supply
1—
RJ-45 management port (labeled MGMT)
6—
Empty slot for power supply
2—
Fan modules
7—
Serial number
3—
Protecve earthing terminal
8—
Electrostac discharge (ESD) point
4—
CLEI code label
9—
RJ-45 console port (labeled CON)
5—
DC power supply
10—
USB 2.0 Type A port
9

Juniper EX4100 Specifications

General

Model	EX4100
Category	Switch
Layer	Layer 2/3
Power Consumption	Varies by model and configuration
PoE	Optional
Management	Web UI, CLI, SNMP
Operating Temperature	0°C to 45°C
Input Voltage	100-240V AC
Storage Temperature	-40°C to 70°C
Humidity	5% to 90% non-condensing
DC Power Input	-48V DC
JUNOS OS	Yes
Security Features	ACLs
Layer 2 Features	VLAN, RSTP, MSTP, LACP
Layer 3 Features	Static routing, OSPF
QoS	8 queues per port
