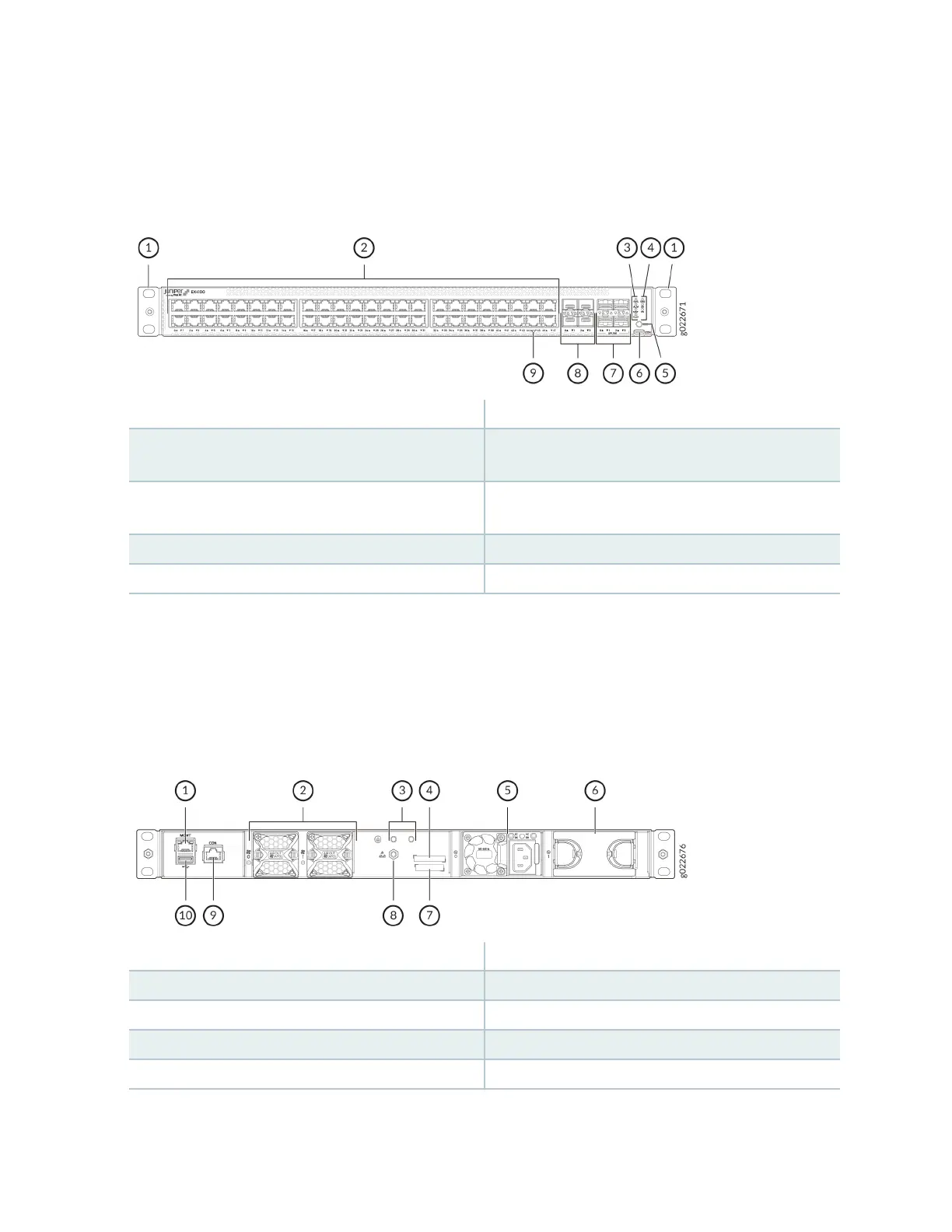

Figure 10 on page 8 shows the components on the front panel of the EX4100-48T switch.
Figure 10: Components on the Front Panel of the EX4100-48T Switch
1—
Front mounng brackets
6—
RS232 to USB Type-C console port
2—
10/100/1000BASE-T RJ-45 non-PoE
network ports
7—
1GE/10GE SFP+ Uplink ports
3—
Chassis status LEDs (labeled SYS, ALM, MST,
and CLD)
8—
10GE/25GE SFP28 Virtual Chassis ports
4—
Port mode LEDs (labeled SPD, DX, and EN)
9—
Reset buon
5—
Factory Reset/Mode buon
Figure 11 on page 8 shows the components on the rear panel of the EX4100-24P or EX4100-24T
switch with an AC power supply.
Figure 11: Components on the Rear Panel of an EX4100-24P and EX4100-24T Switch with AC Power
Supply
1—
RJ-45 management port (labeled MGMT)
6—
Empty slot for power supply
2—
Fan modules
7—
Serial number
3—
Protecve earthing terminal
8—
Electrostac discharge (ESD) point
4—
CLEI code label
9—
RJ-45 console port (labeled CON)
5—
AC power supply
10—
USB 2.0 Type A port
8
