Juniper EX4100

2—
10/100/1000BASE-T RJ-45 non-PoE
network ports
7—
1GE/10GE SFP+ Uplink ports
3—
Chassis status LEDs (labeled SYS, ALM, MST,
and CLD)
8—
10GE/25GE SFP28 Virtual Chassis ports
4—
Port mode LEDs (labeled SPD, DX, and EN)
9—
Reset buon
5—
Factory Reset/Mode buon
10—
Claim Code label

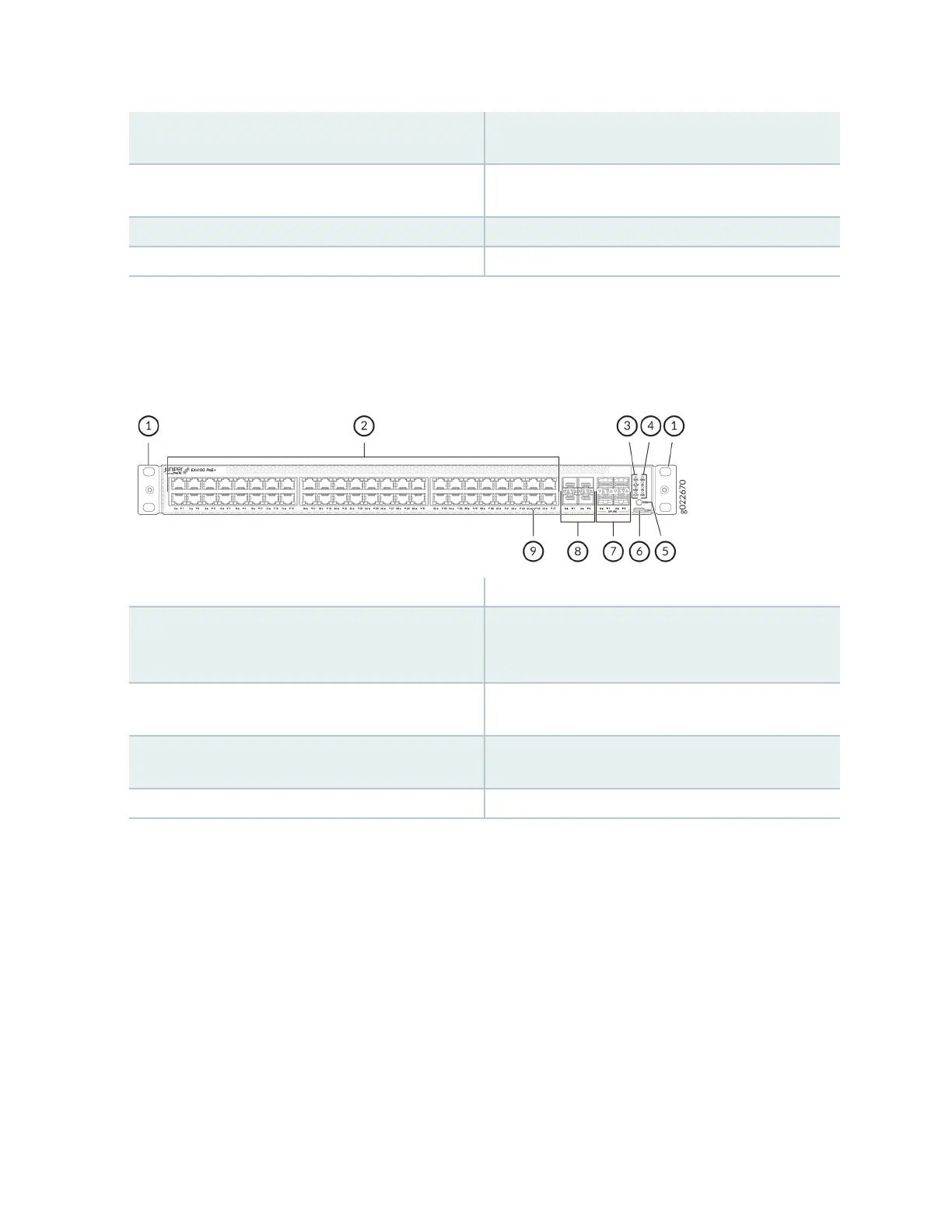

Figure 9 on page 7 shows the components on the front panel of the EX4100-48P switch.
Figure 9: Components on the Front Panel of the EX4100-48P Switch
1—
Front mounng brackets
6—
RS232 to USB Type-C console port
2—
10/100/1000BASE-T RJ-45 network ports.
These ports in EX4100-48P switches support
PoE+ (30 W by default).
7—
1GE/10GE SFP+ Uplink ports
3—
Chassis status LEDs (labeled SYS, ALM, MST,
and CLD)
8—
10GE/25GE SFP28 Virtual Chassis ports
4—
Port mode LEDs (labeled SPD, DX, EN, and
PoE)
9—
Reset buon
5—
Factory Reset/Mode buon
7
