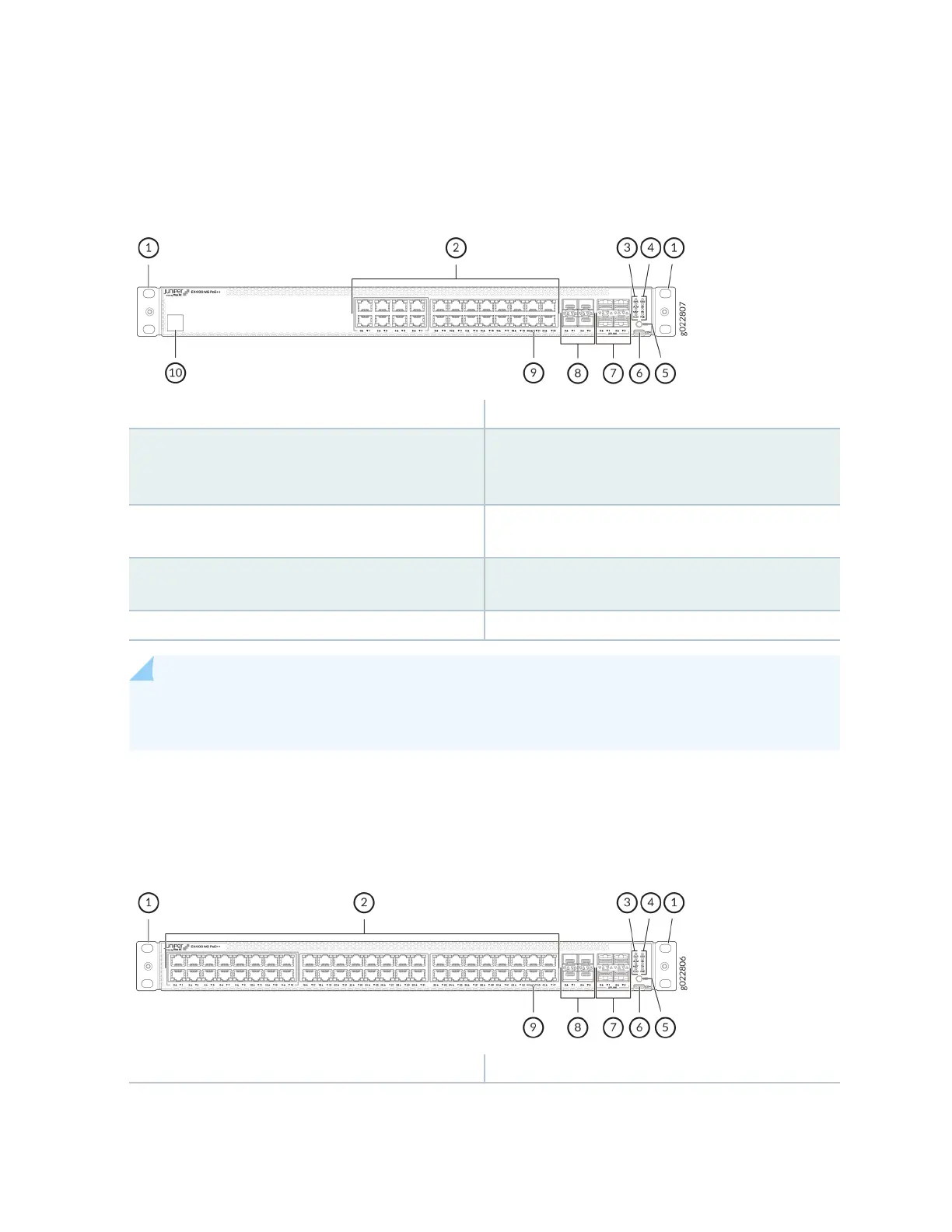

Figure 7 on page 6 shows the components on the front panel of the EX4100-24MP switch.
Figure 17: Components on the Front Panel of the EX4100-24MP Switch
1—
Front mounng brackets
6—
RS232 to USB Type-C console port
2—
Eight 1/2.5/5/10 GE and sixteen 1 GE BASE-
T RJ-45 network ports. These ports in
EX4100-24MP support PoE++ (90 W).
7—
1/10 GE SFP+ Uplink ports
3—
Chassis status LEDs (labeled SYS, ALM, MST,
and CLD)
8—
10/25 GE SFP28 Virtual Chassis ports
4—
Port mode LEDs (labeled SPD, DX, EN and
PoE)
9—
Reset buon
5—
Factory Reset/Mode buon
10—
Claim Code label
NOTE: Claim Code labels for 24 port EX4100 models are on the front panels; for 48 port
EX4100 models, Claim Code labels are on the rear panels.
Figure 29 on page 15 shows the components on the front panel of EX4100-48MP switch.
Figure 18: Components on the Front Panel of the EX4100-48MP Switch
1—
Front mounng brackets
6—
RS232 to USB Type-C console port
11
