Juniper EX4100

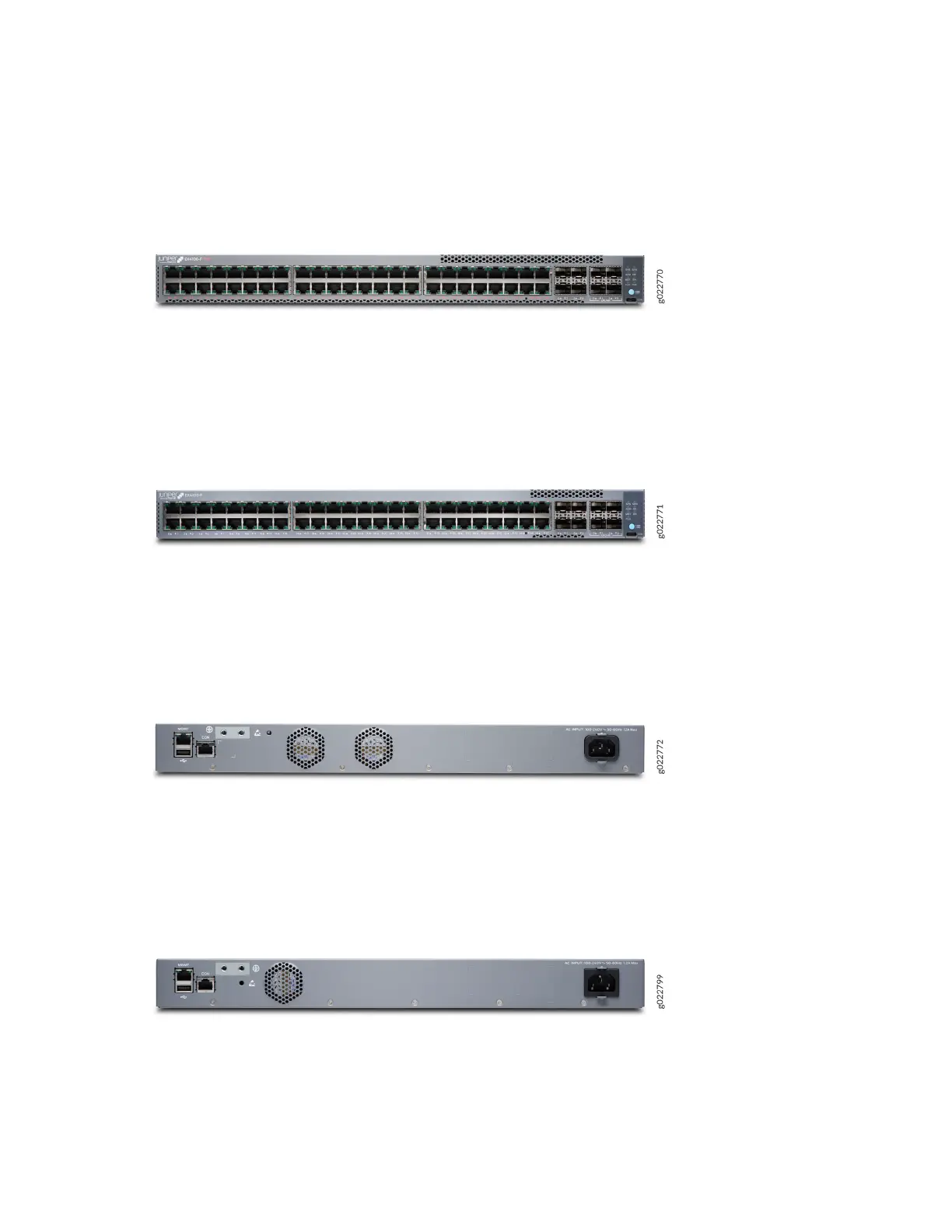

Figure 24 on page 14 shows the front view of the EX4100-F-48P switch with 48 ports.
Figure 24: Front View of the EX4100-F-48P Switch
Figure 25 on page 14 shows the front view of the EX4100-F-48T switch with 48 ports.
Figure 25: Front View of the EX4100-F-48T Switch
Figure 26 on page 14 shows the rear view of the EX4100-F-48P switch with 48 ports.
Figure 26: Rear View of the EX4100-F-48P Switch
Figure 27 on page 14 shows the rear view of the EX4100-F-48T switch with 48 ports.
Figure 27: Rear View of the EX4100-F-48T Switch
14
