Juniper EX4100

EX4100-F-24P, EX4100-F-24T, EX4100-F-48P and EX4100-F-48T

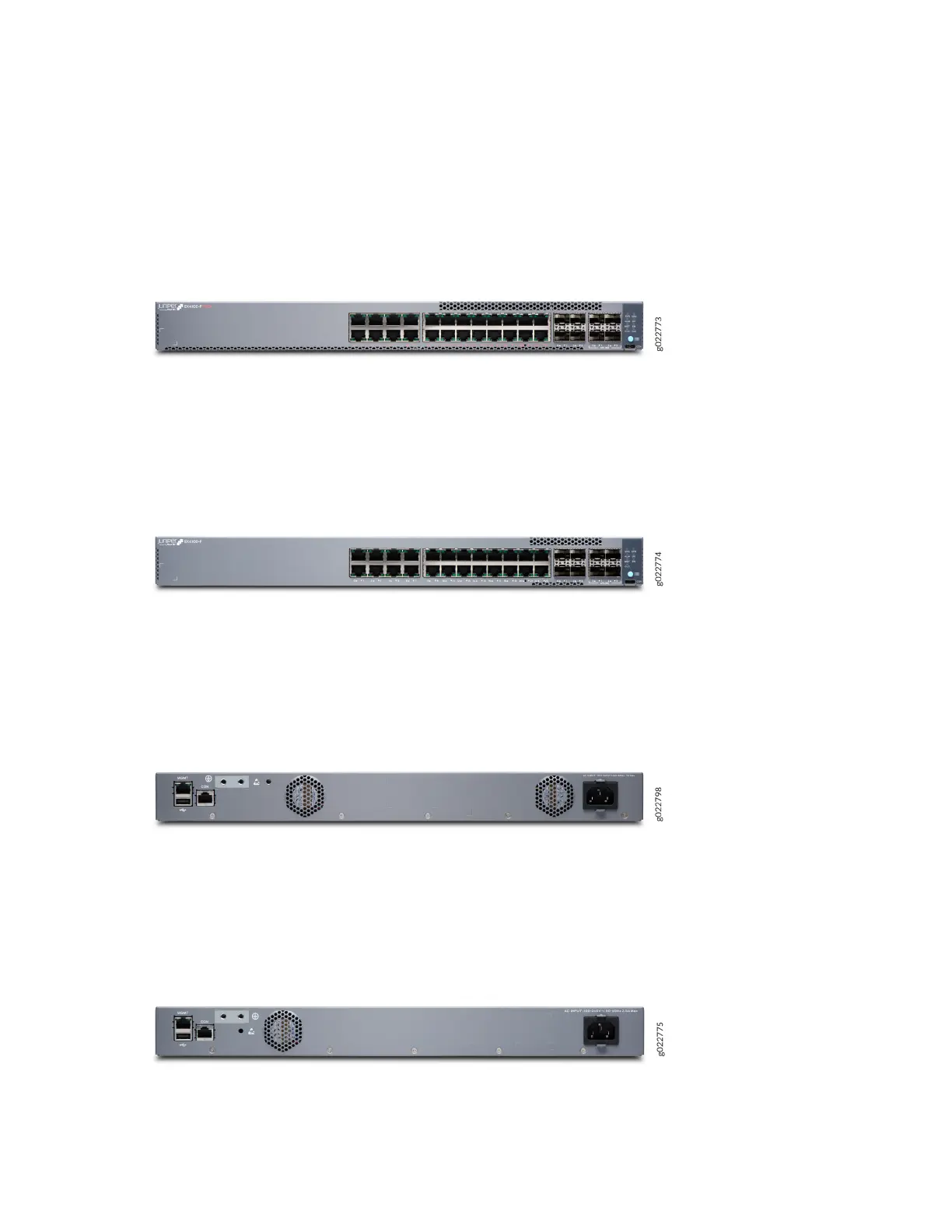

Figure 20 on page 13 shows the front view of the EX4100-F-24P switch with 24 ports.
Figure 20: Front View of the EX4100-F-24P Switch
Figure 21 on page 13 shows the front view of the EX4100-F-24T switch with 24 ports.
Figure 21: Front View of the EX4100-F-24T Switch
Figure 22 on page 13 shows the rear view of the EX4100-F-24P switch with 24 ports.
Figure 22: Rear View of the EX4100-F-24P Switch
Figure 23 on page 13 shows the rear view of the EX4100-F-24T switch with 24 ports.
Figure 23: Rear View of the EX4100-F-24T Switch
13
