Juniper EX4100 User Manual

2—
10/100/1000BASE-T RJ-45 non-PoE
network ports.
7—
10 GE SFP+ Uplink ports
3—
Chassis status LEDs (labeled SYS, ALM, MST,
and CLD)
8—
1/10 GE SFP+ Virtual Chassis ports
4—
Port mode LEDs (labeled SPD, DX, and EN)
9—
Reset buon
5—
Factory Reset/Mode buon
10—
Claim Code label

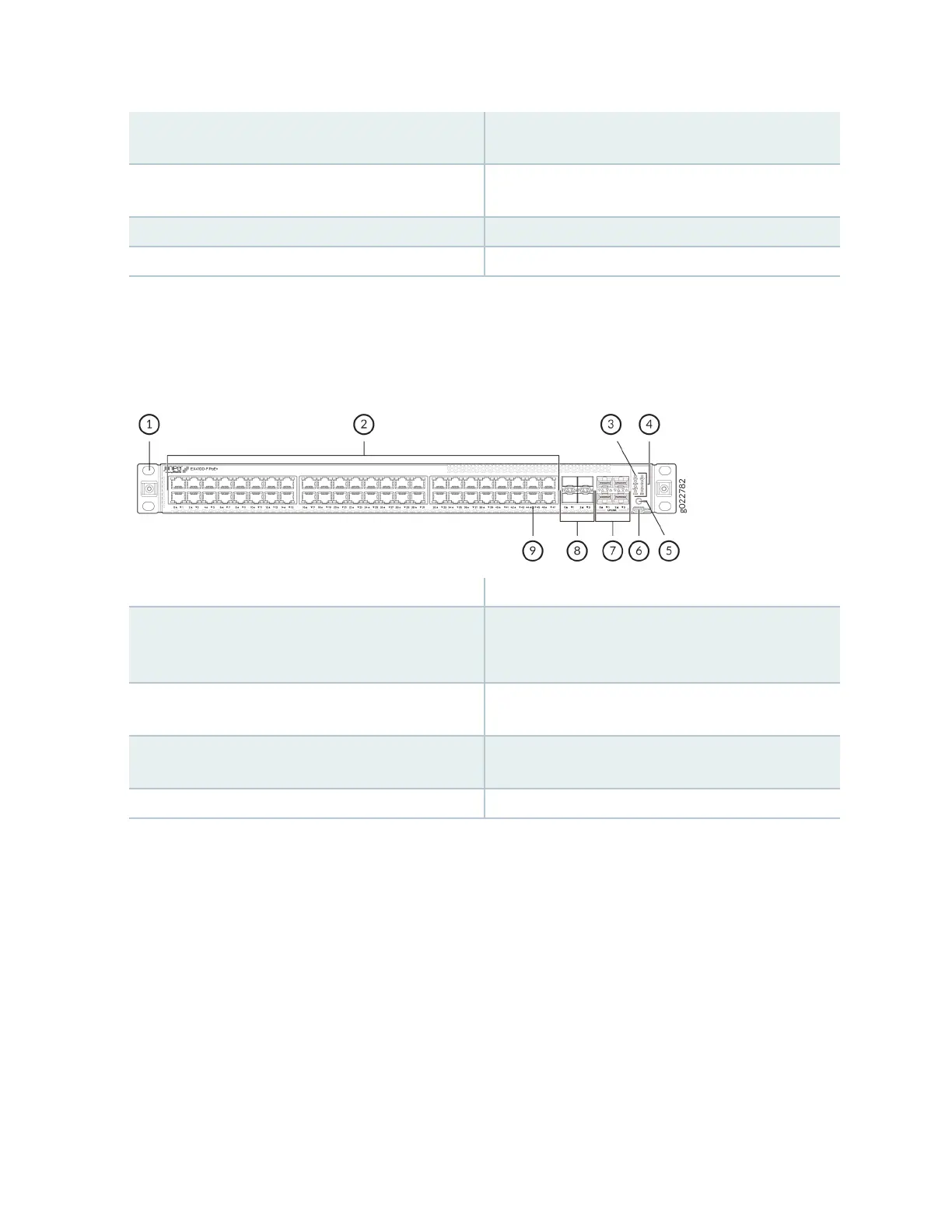

Figure 30 on page 16 shows the components on the front panel of the EX4100-F-48P switch.
Figure 30: Components on the Front Panel of the EX4100-F-48P Switch
1—
Front mounng brackets
6—
RS232 to USB Type-C console port
2—
10/100/1000BASE-T RJ-45 network ports.
These ports support in EX4100-F-48P
support PoE+ (30 W by default).
7—
10 GE SFP+ Uplink ports
3—
Chassis status LEDs (labeled SYS, ALM, MST,
and CLD)
8—
1/10 GE SFP+ Virtual Chassis ports
4—
Port mode LEDs (labeled SPD, DX, EN and
PoE)
9—
Reset buon
5—
Factory Reset/Mode buon
16

Juniper EX4100 Specifications

General

Model	EX4100
Category	Switch
Layer	Layer 2/3
Power Consumption	Varies by model and configuration
PoE	Optional
Management	Web UI, CLI, SNMP
Operating Temperature	0°C to 45°C
Input Voltage	100-240V AC
Storage Temperature	-40°C to 70°C
Humidity	5% to 90% non-condensing
DC Power Input	-48V DC
JUNOS OS	Yes
Security Features	ACLs
Layer 2 Features	VLAN, RSTP, MSTP, LACP
Layer 3 Features	Static routing, OSPF
QoS	8 queues per port
