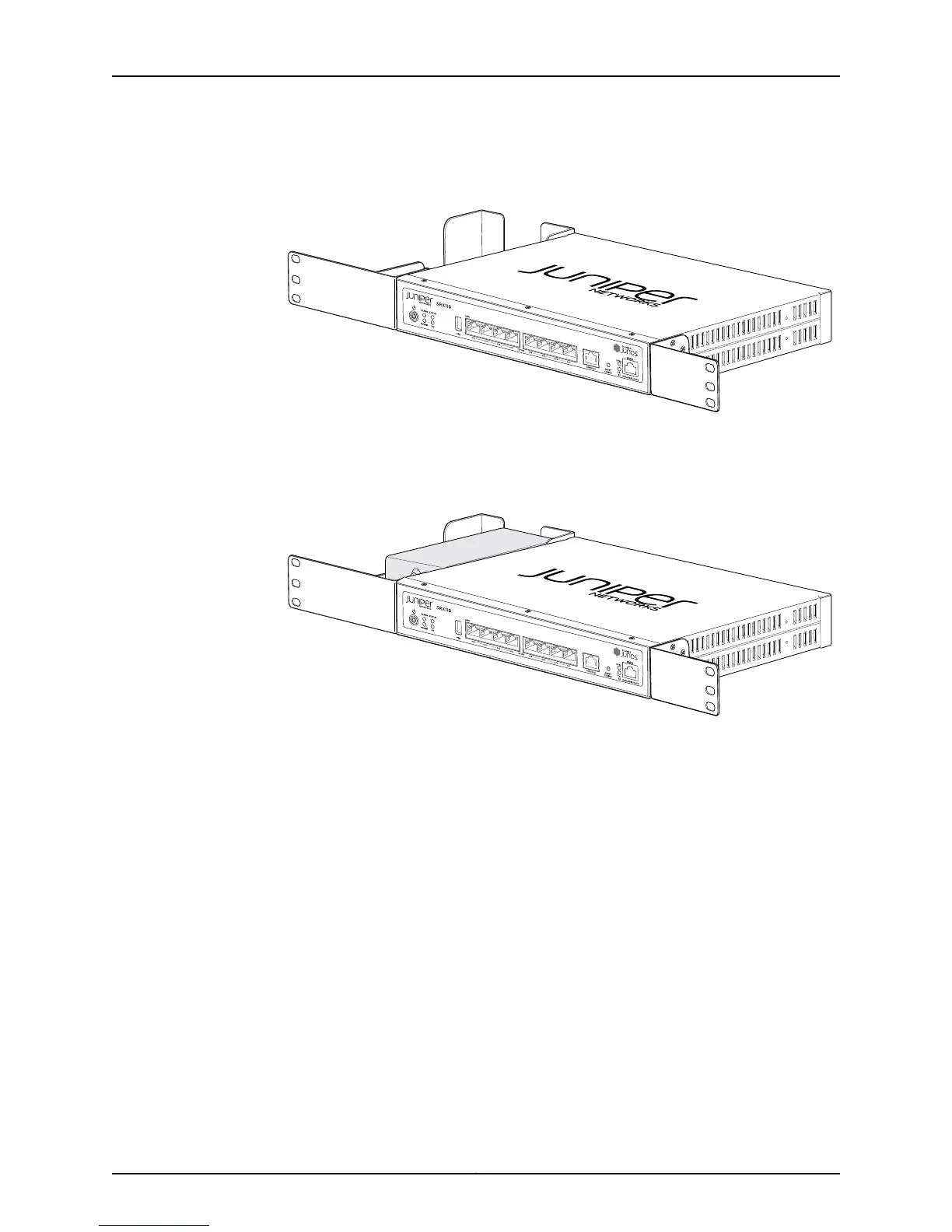

Figure 16: SRX110 Services Gateway Rack Installation — Securing Mounting
Brackets and Power Supply Adapter Tray
3. Place the power supply adapter in the tray as shown in Figure 17 on page 60.
Figure 17: SRX110 Services Gateway Rack Installation — Positioning Power
Supply Adapter Tray
4. Have one person grasp the sides of the device, lift it, and position it in the rack.
5. Align the bottom hole in each mounting bracket with a hole in each rack rail as shown
in Figure 18 on page 61, making sure that the chassis is level.
Copyright © 2013, Juniper Networks, Inc.60
SRX110 Services Gateway Hardware Guide
