Juniper SSG 140 - Front Panel Components and Descriptions

Front Panel  11
Front Panel
This section describes the following elements on the front panel of an SSG 140
device:
 Device Status LEDs
 Port Descriptions
 Reset Pinhole
 USB Port

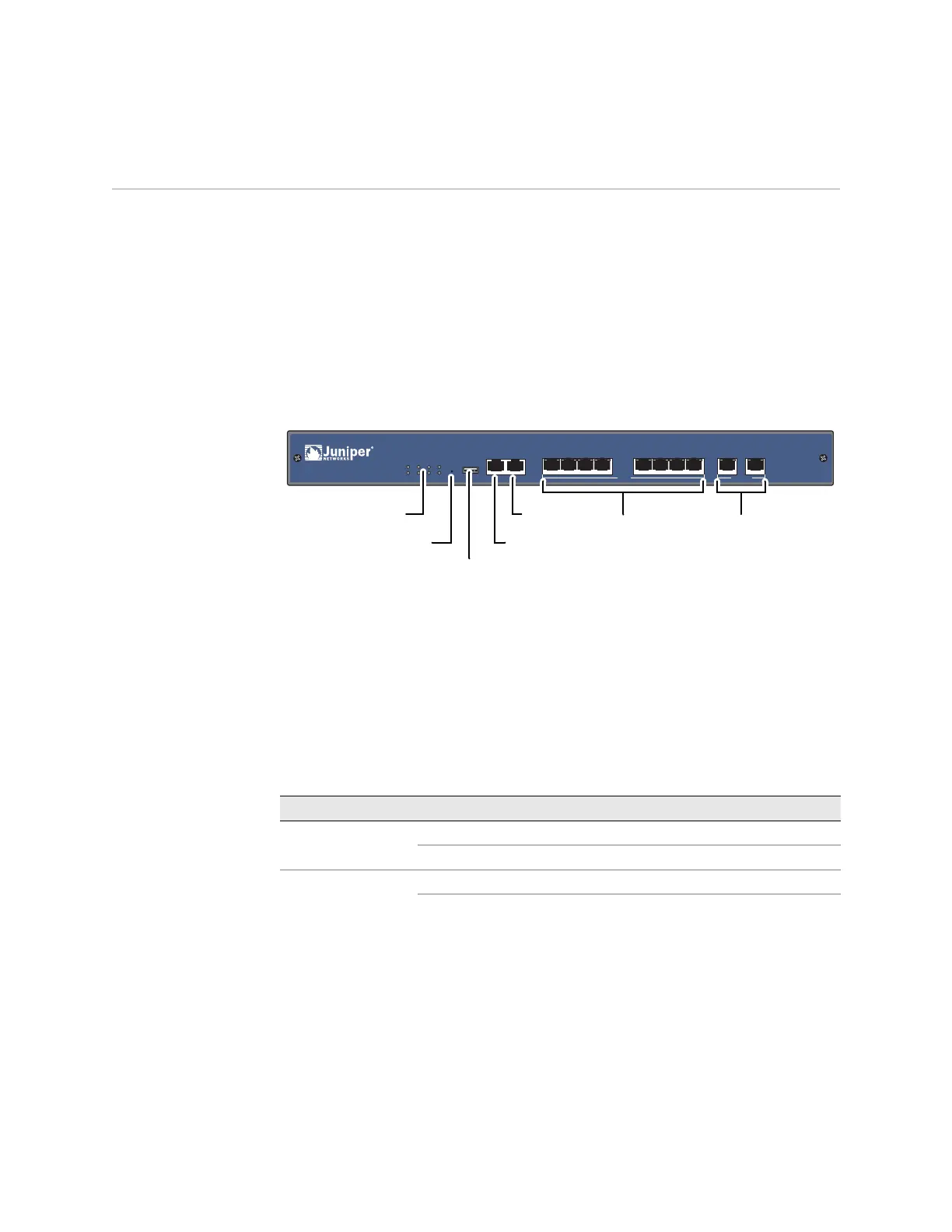

Figure 3: SSG 140 Front Panel
Device Status LEDs
The device status LEDs display information about critical device functions. When
the device powers up, the POWER LED changes from off to green and the STATUS
LED changes from off to blinking green. Startup takes approximately one minute to
complete. If you want to turn the device off and on again, we recommend you wait
a few seconds between shutting it down and powering it back up. Table 2 provides
the name, color, status, and description of each device status LED.
Table 2: Status LED Descriptions
POWER HA PIM1 PIM3
STATUS ALARM PIM2 PIM4 RESET
CONSOLEUSB AUX 10/100 10/100/1000
0/0 0/1 0/2 0/3
TX/RX TX/RX TX/RX TX/RXLINK LINK LINK LINK
0/4 0/5 0/6 0/7
TX/RX TX/RX TX/RX TX/RXLINK LINK LINK LINK
0/8
TX/RX LINK
0/9
TX/RX LINK
SSG 140
Device Status LEDs
USB Port
Reset Pinhole Console Port
AUX Port
10/100
Ethernet Ports
10/100/1000
Ethernet Ports
Name Color Status Description
POWER Green On steadily Power is functioning correctly.
Off Device is not receiving power.
STATUS Green Off Device is powered off or is starting up.
Blinking Normal operation.
