Front Panel 13

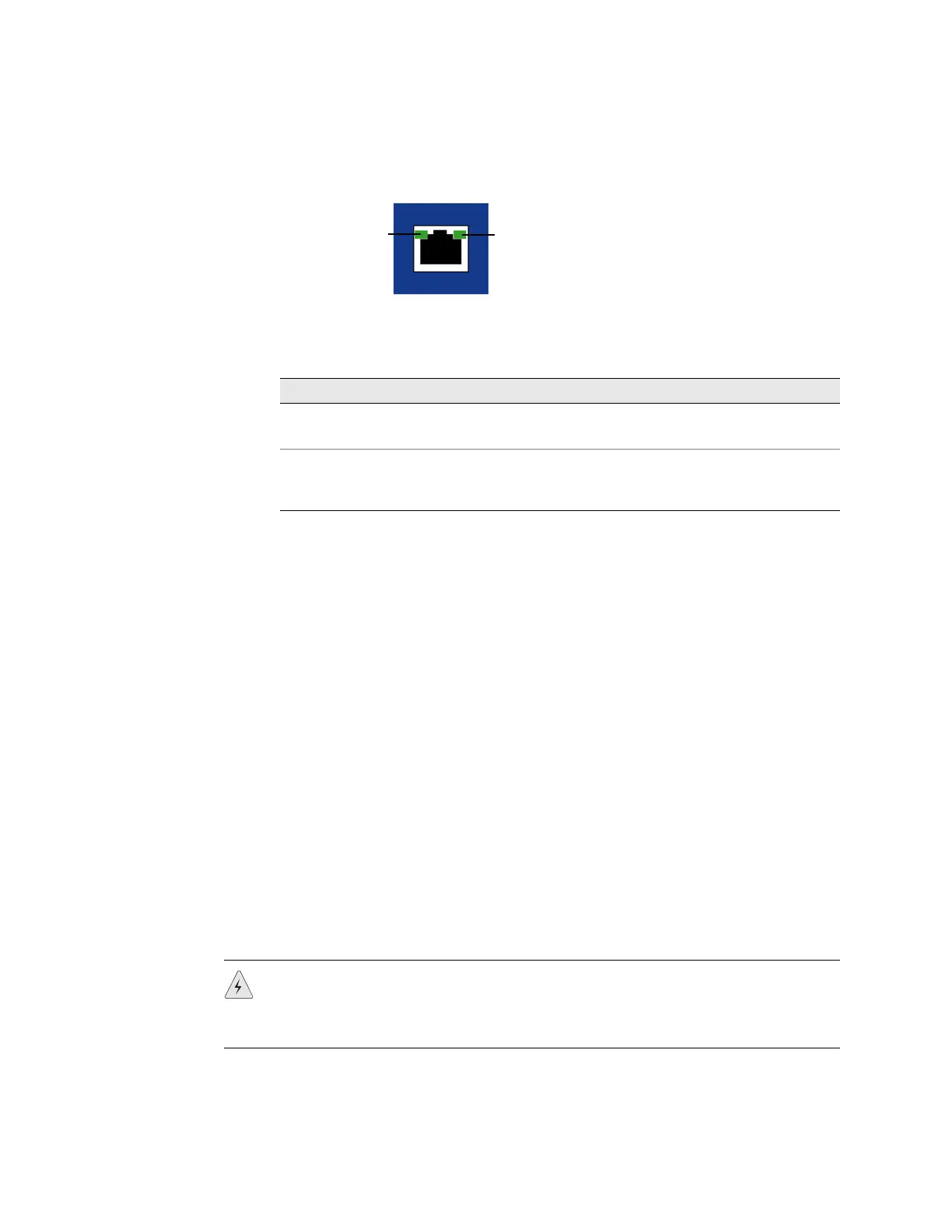

Figure 4: Ethernet port LEDs
Table 3 describes the LAN port LEDs.
Table 3: LAN Port LEDs
Console Port
The Console port is an RJ-45 serial port wired as Data Communications Equipment
(DCE) that can be used for local administration. An RJ-45 to DB-9 adapter is
supplied.
See Connectors on page 54 for the Console port connector pinouts.
AUX Port
The auxiliary (AUX) port is an RJ-45 serial port wired as a Data Terminal Equipment
(DTE) that can be connected to a modem to allow remote administration. We do not
recommend using this port for regular remote administration. The AUX port is
typically assigned to be the backup serial interface. The baud rate is adjustable from
9600 bps to 115200 bps and requires hardware flow control.
See “Connectors” on page 54 for the AUX port connector pinouts.
Reset Pinhole
The reset pinhole is a button that resets the device to its original default settings. To
use this button, insert a stiff wire (such as a straightened paper clip) into the
pinhole. See “Resetting the Device to Factory Defaults” on page 40 for more
information.
Function Color State Description
LINK Green On steadily
Off
Port is online
Port is offline
TX/RX Green Blinking
Off
Traffic is passing through. The data rate is
proportional to the TX/RX activity
Port might be on but is not receiving data
LINK
TX/RX
WARNING: Because resetting the device restores it to the original default
configuration, any new configuration settings are lost, and the firewall and all VPN
services become inoperative. We recommend that you save the device
configuration before resetting the device with the reset pinhole.
