SSG 140 Series Hardware Installation and Configuration Guide
48 Replacing the Fuse

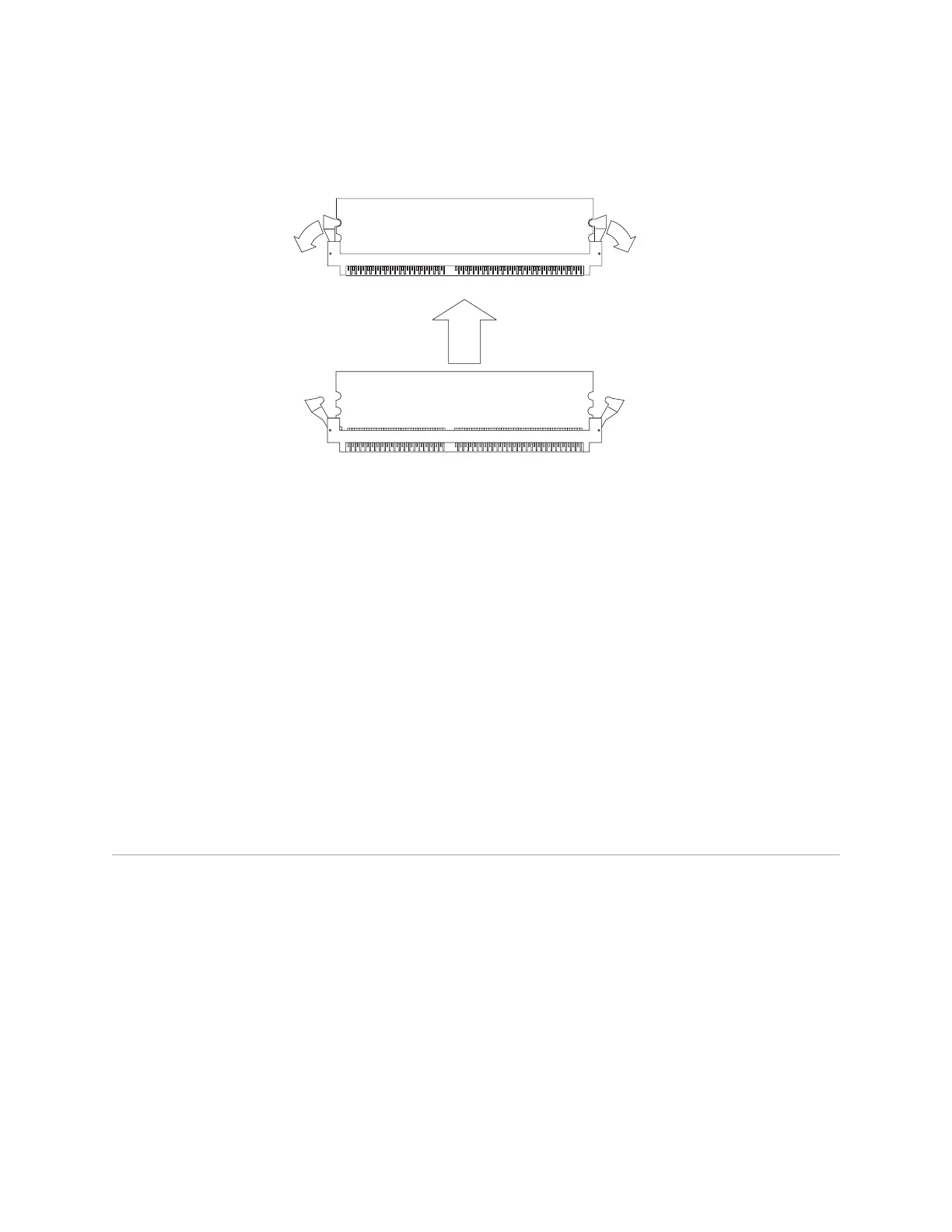

Figure 15: Releasing and removing the memory module
12. Insert the 512 MB memory module into the slot from which you removed the
256 MB memory module. Exerting even pressure with both thumbs upon the
upper edge of the module, press the module downward until the locking tabs
click into position.
13. To replace the top panel on the chassis, set the rear edge of the top panel into
the groove that runs along the top rear edge of the chassis. Then lower the top
panel onto the chassis.
14. Slide the top panel back 1/2-inch (13mm).
15. Use the number-2 phillips screwdriver to replace and tighten the screws you
removed earlier, securing the top panel to the chassis.
16. Use the number-2 phillips screwdriver to replace and tighten the screws
securing the rack mount brackets to the sides of the chassis.
17. Replace the SSG 140 in the equipment rack.
Replacing the Fuse
The SSG 140 device uses a 6.3 Amp fast acting fuse rated for 250 Volts.
To replace a failed fuse on the SSG 140 device, perform the following steps:
1. Take the device off-line, turn the power switch OFF, and disconnect the power
cable.
2. Using a flat tip screwdriver, separate the lid of the external fuse cover from the
surface of the power outlet.
