3. Physical Ethernet Interface Window
On the interface-to-zone bindings screen, you set the interface to which you want
to bind the Untrust security zone. Ethernet0/0 is prebound to the Trust security
zone. Ethernet0/1 is bound to the DMZ security zone but is optional. Ethernet0/2 is
bound to the Untrust zone.

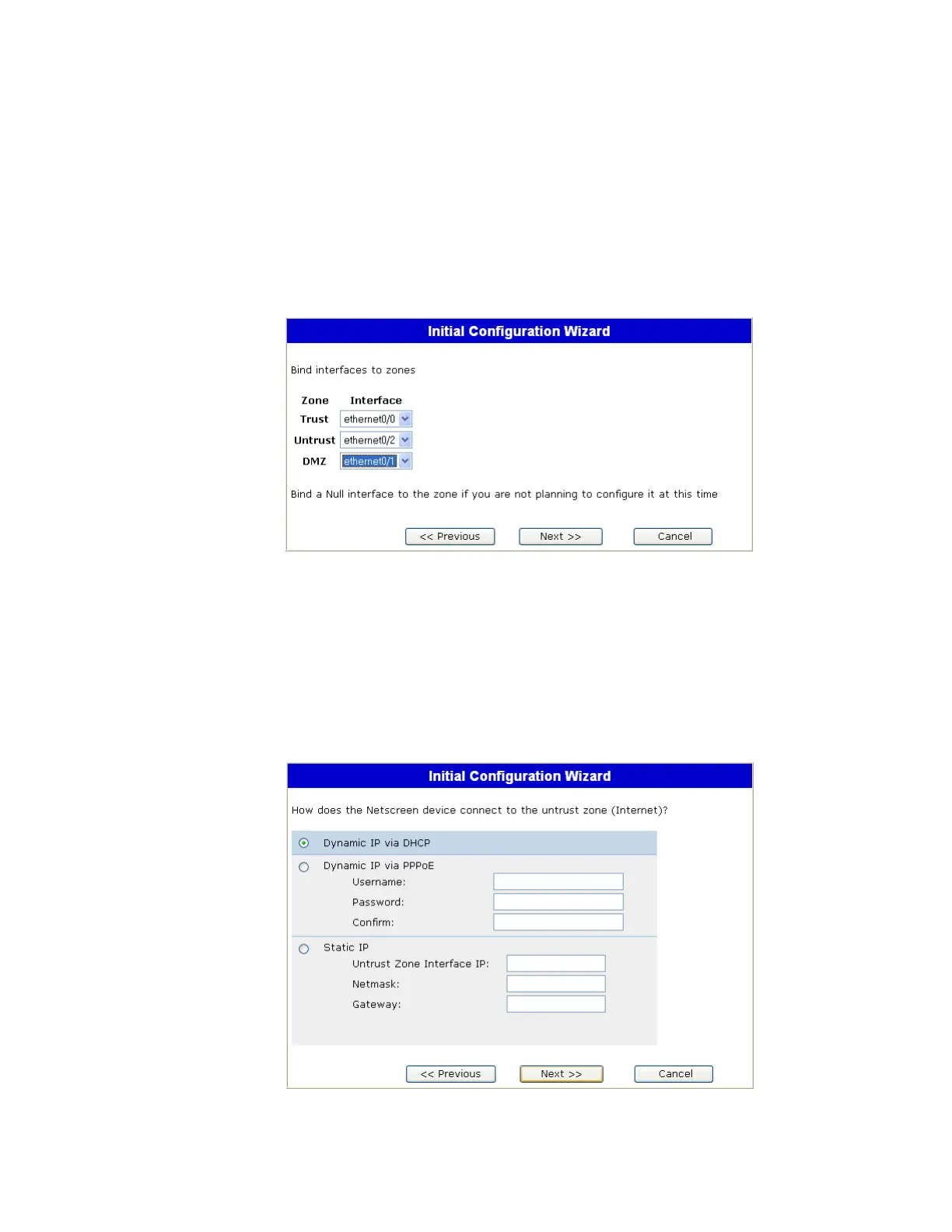

Figure 19: Physical Ethernet Interface Window
After binding an interface to a zone, you can configure the interface. Depending on
which interfaces you have installed on your device, mini PIM-specific configuration
windows are displayed. To continue configuring your device with the ICW, click
Next.
4. Untrust Zone Window
The Untrust zone interface can have a static IP address or a dynamic IP address
assigned via DHCP. Insert the desired information, then click Next.
Figure 20: Untrust Zone Window
