Equipment Installation 21

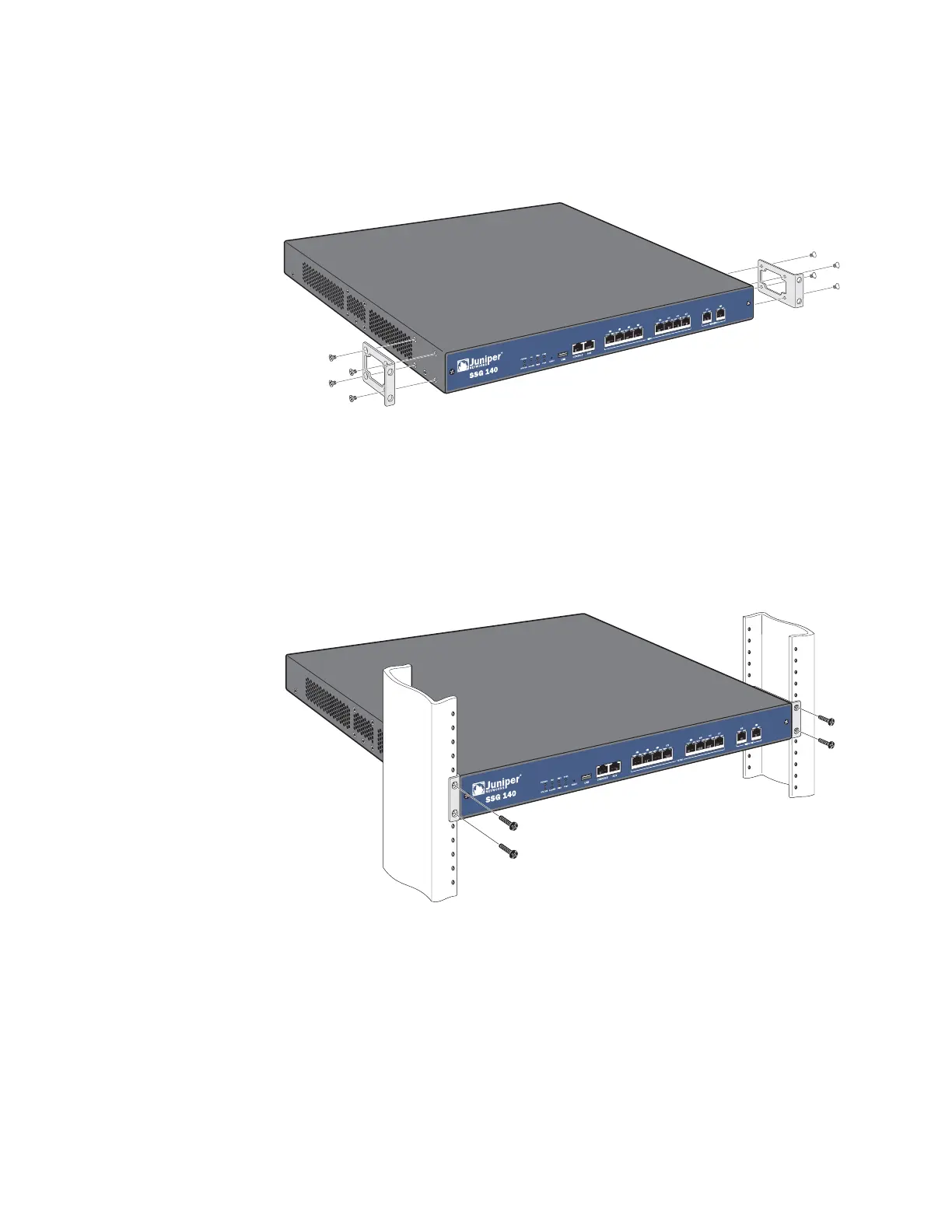

Figure 8: Attaching the rack mount brackets
2. Grasp the sides of the device, lift the device, then position it in the rack. When
correctly positioned, the device sits level in the equipment rack.
3. Align the bottom hole in each mounting bracket with a hole in each rack rail,
making sure the chassis is level.
4. Install a mounting screw into each of the two aligned holes. Use a number-2
phillips screwdriver to tighten the screws.
Figure 9: Rack Installation
5. Install the remaining screws in each mounting bracket.
6. Verify that the mounting screws on one side of the rack are aligned with the
mounting screws on the opposite side and that the device is level.
