JVC GY-HM70E User Manual

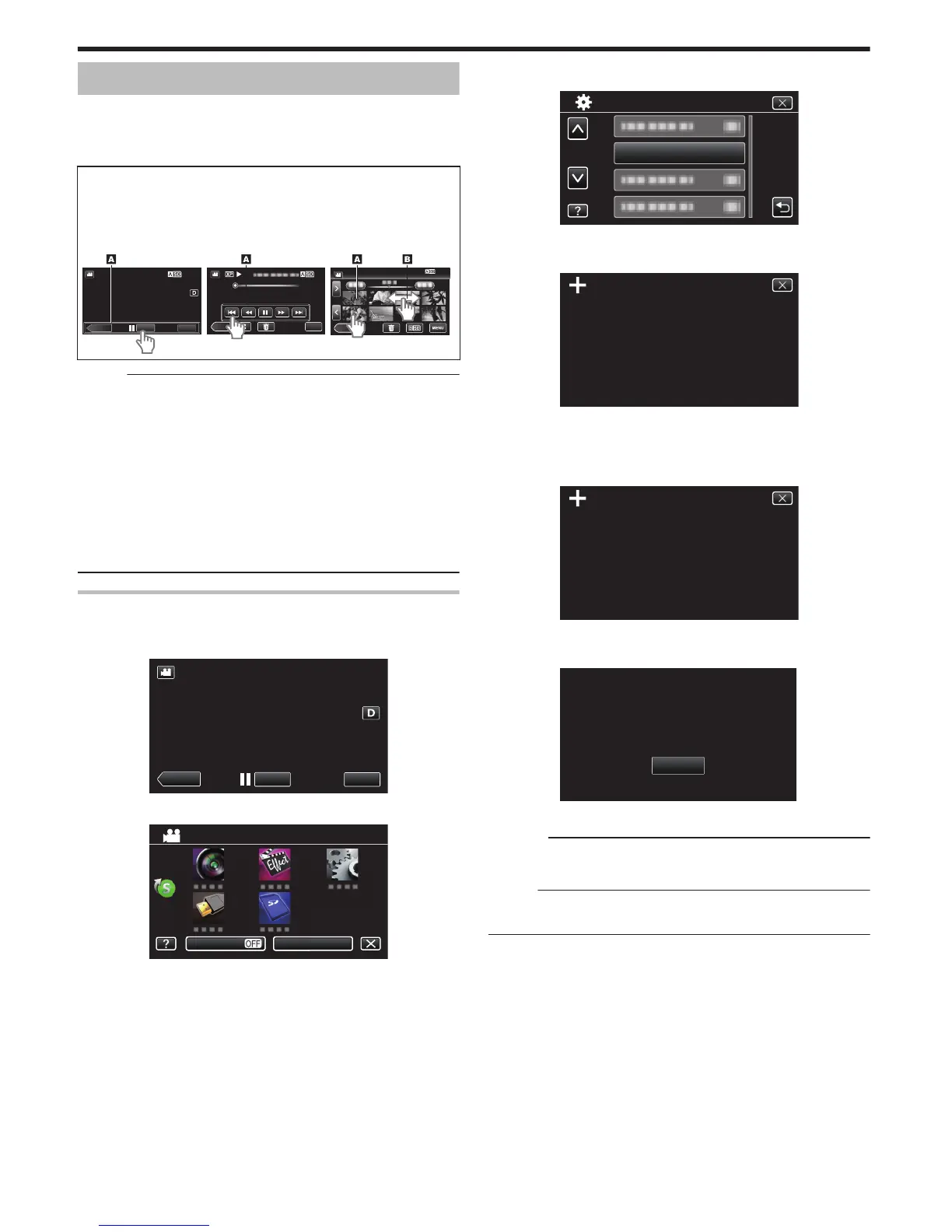

Using the Touch Screen
Icon operation buttons, thumbnails, and menu items are displayed on the
touch screen according to the mode in use.
0
There are
two ways to operate the touch screen, namely “tap” and “drag”.
The following are some examples.
A Tap the displayed button (icon) or thumbnail (file) on the touch screen
to make selection.
B Drag the thumbnails on the touch screen to search for the desired file.
.
≪CAM
0:01:23 0:12:34
Recording Screen Playback Screen Index screen (thumbnail display)
MENU
≪MEDIA
REC
0:01:23 0:12:34
MENU
≪CAM
Memo :
0
The touch
screen of this unit is pressure-sensitive. When the touch screen
does not respond smoothly, apply slightly more force to your fingertip.
0
Tap the buttons (icons) on the touch screen accurately. The buttons may
not respond if they are not tapped on the right area.
0
Do not press or rub with excessive force.
0
Do not operate the touch screen using an object with a sharp or hard tip.
0
Pressing two or more places at a time may cause a malfunction.
0
Perform “TOUCH SCREEN ADJUST” if the reactive area of the screen is
misaligned with the touched area. (Adjust by lightly tapping with a corner
of an SD card, etc. Do not press with an object with a sharp tip or do not
press hard.)
“Adjusting the Touch Panel” (A p. 8)
Adjusting the Touch Panel
Adjusts the response position of the buttons on the touch screen.
1
Tap “MENU”.
.
REC
MENU
≪MEDIA
2
Tap “SETUP”.
.
OFF
TOP MENU
SILENT INFO.
3
Tap “TOUCH SCREEN ADJUST”.
.
TOUCH SCREEN ADJUST
SETUP
0
The touch screen adjustment screen appears.
4
Tap “+”. (3 times in total)
.
1/3
PRESS THE + MARK
0
Keep tapping “+” as its position changes with every tap.
0
If areas other than the “+” mark are tapped, errors will occur. Make
sure to tap the “+” mark.
5
Tap “+” again to confirm the adjusted positions. (3 times in total)
.
1/3
PRESS + MARK AGAIN
CONFIRM THE ADJUSTMENT
0
Keep tapping “+” as its position changes with every tap.
6
Tap “OK”.
.
OK
COMPLETED
0
Setting ends and returns to the menu screen.
Caution :
0
Do not tap areas other than the “+” mark during touch screen adjustment
(steps 4 - 5). Doing so may cause the touch screen to malfunction.
Memo :
0
Adjust by lightly tapping with a corner of an SD card, etc.
0
Do not press with an object with a sharp tip or do not press hard.
Getting Started
8

JVC GY-HM70E Specifications

General

Sensor type	CMOS
Total megapixels	12 MP
Optical sensor size	1/2.3 \
Filter size	46 mm
Optical zoom	10 x
Image stabilizer	Yes
Focal length range	3.76 - 37.6 mm
Interchangeable lens	-
Maximum aperture number	2.8
Minimum aperture number	1.2
Focal length (35mm film equivalent)	29.5 - 476 mm
Memory slots	2
Camcorder media type	Memory card
Disc types supported	No
Compatible memory cards	SD, SDHC, SDXC
Internal storage capacity	- GB
Focus adjustment	Auto/Manual
Camera shutter speed	0.00025 - 0.5 s
Display diagonal	3 \
Display aspect ratio	16:9
Display resolution (numeric)	230000 pixels
Viewfinder screen size	0.24 \
Camcorder type	Shoulder camcorder
Product color	Black
Video resolutions	720 x 576, 1920 x 1080 pixels
Video formats supported	AVCHD, H.264, MPEG4
Maximum video resolution	1920 x 1080 pixels
Image formats supported	JPG
Maximum image resolution	- pixels
Headphone outputs	1
Headphone connectivity	3.5 mm
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component video (YPbPr/YCbCr) out	0
Battery voltage	7.2 V
Battery capacity	- mAh
Battery life (max)	- h
Storage temperature (T-T)	-20 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	35 - 80 %
Cables included	RCA, USB

Weight and Dimensions

Depth	476 mm
Width	227 mm
Height	232 mm
Weight	3000 g
