JVC GY-HM70E User Manual

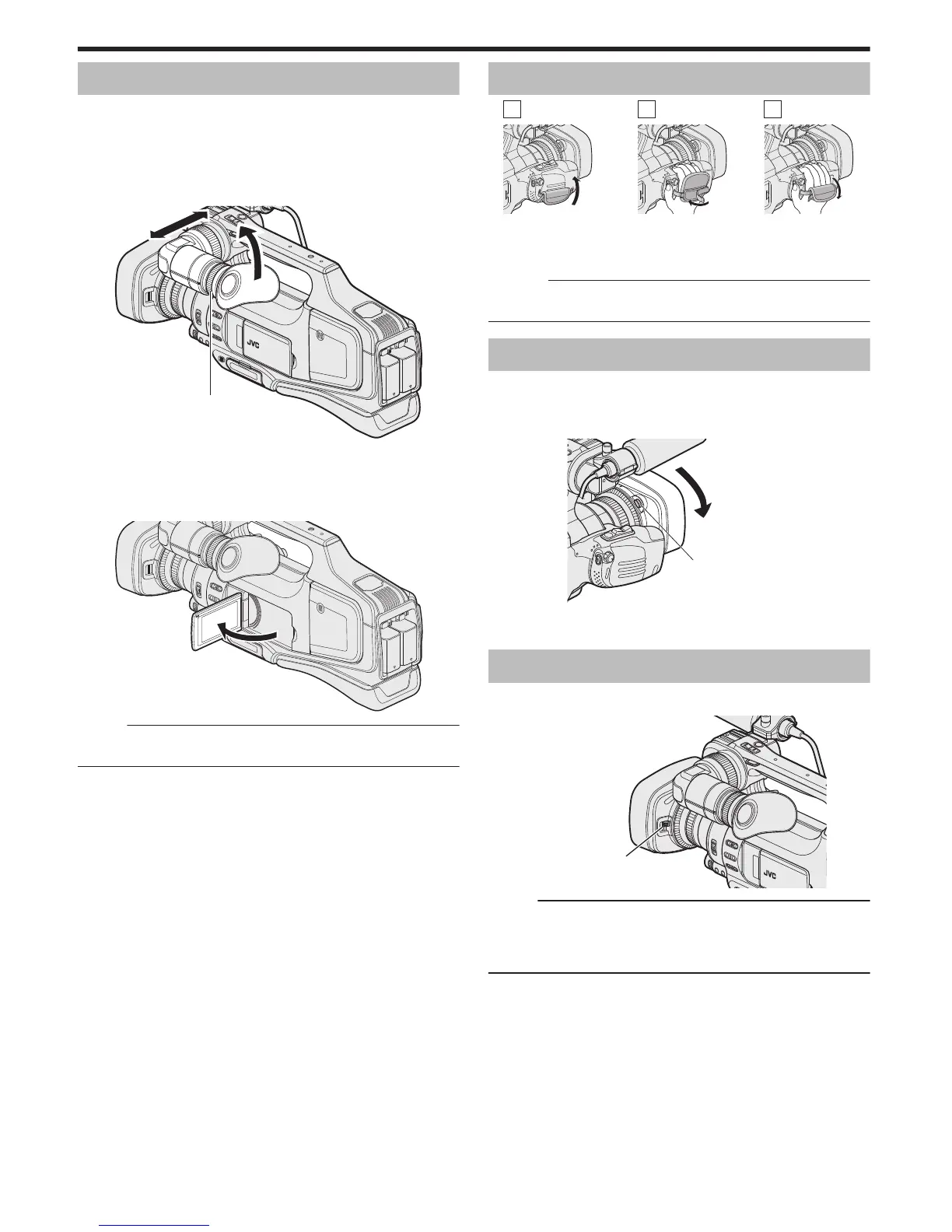

Viewing the Viewfinder/LCD Monitor
You can
monitor video images on this camera recorder using the viewfinder
or LCD monitor.
o
Viewing with the viewfinder
1
Adjust the viewfinder to an easy-to-see position.
2
Turn the eyepiece focus lever to adjust the focus.
.
Eyepiece Focus
Lever
o
Viewing on LCD monitor
1
Open the LCD monitor.
2
Adjust the LCD monitor to an easy-to-see position.
.
Memo :
0
While the LCD monitor is opened, there will be no image display on the
viewfinder.
o
Adjusting the brightness of LCD monitor
Set the
brightness using “MONITOR BRIGHTNESS” in the “SETUP” menu.
“ MONITOR BRIGHTNESS ” (A p. 114)
Adjusting the Grip Belt
.
  
A Open the pad.
B Adjust the length of the belt
C Close the pad.
Caution :
0
Be sure to fasten the grip belt properly.
If the belt is loose, this unit may drop and result in injuries or damages.
Removing the Hood
Remove the hood when attaching a filter, teleconverter or wide converter to
the front of the lens.
0
Press and hold the release button on the back of the hood, turn the hood
in the anti-clockwise direction to remove it.
.
Hood Release
Button
0
To attach a hood, press it against the lens, and turn it in the clockwise
direction.
Opening the Lens Cover
Use the lens cover switch to open or close the lens cover.
Before shooting, open the lens cover.
.
Lens Cover Switch
Memo :
0
When this camera recorder is not in use, close the lens cover to protect
the lens.
0
Do not
press against the lens cover with force. Doing so may damage the
lens or the cover.
Getting Started
14

JVC GY-HM70E Specifications

General

Sensor type	CMOS
Total megapixels	12 MP
Optical sensor size	1/2.3 \
Filter size	46 mm
Optical zoom	10 x
Image stabilizer	Yes
Focal length range	3.76 - 37.6 mm
Interchangeable lens	-
Maximum aperture number	2.8
Minimum aperture number	1.2
Focal length (35mm film equivalent)	29.5 - 476 mm
Memory slots	2
Camcorder media type	Memory card
Disc types supported	No
Compatible memory cards	SD, SDHC, SDXC
Internal storage capacity	- GB
Focus adjustment	Auto/Manual
Camera shutter speed	0.00025 - 0.5 s
Display diagonal	3 \
Display aspect ratio	16:9
Display resolution (numeric)	230000 pixels
Viewfinder screen size	0.24 \
Camcorder type	Shoulder camcorder
Product color	Black
Video resolutions	720 x 576, 1920 x 1080 pixels
Video formats supported	AVCHD, H.264, MPEG4
Maximum video resolution	1920 x 1080 pixels
Image formats supported	JPG
Maximum image resolution	- pixels
Headphone outputs	1
Headphone connectivity	3.5 mm
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component video (YPbPr/YCbCr) out	0
Battery voltage	7.2 V
Battery capacity	- mAh
Battery life (max)	- h
Storage temperature (T-T)	-20 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	35 - 80 %
Cables included	RCA, USB

Weight and Dimensions

Depth	476 mm
Width	227 mm
Height	232 mm
Weight	3000 g
