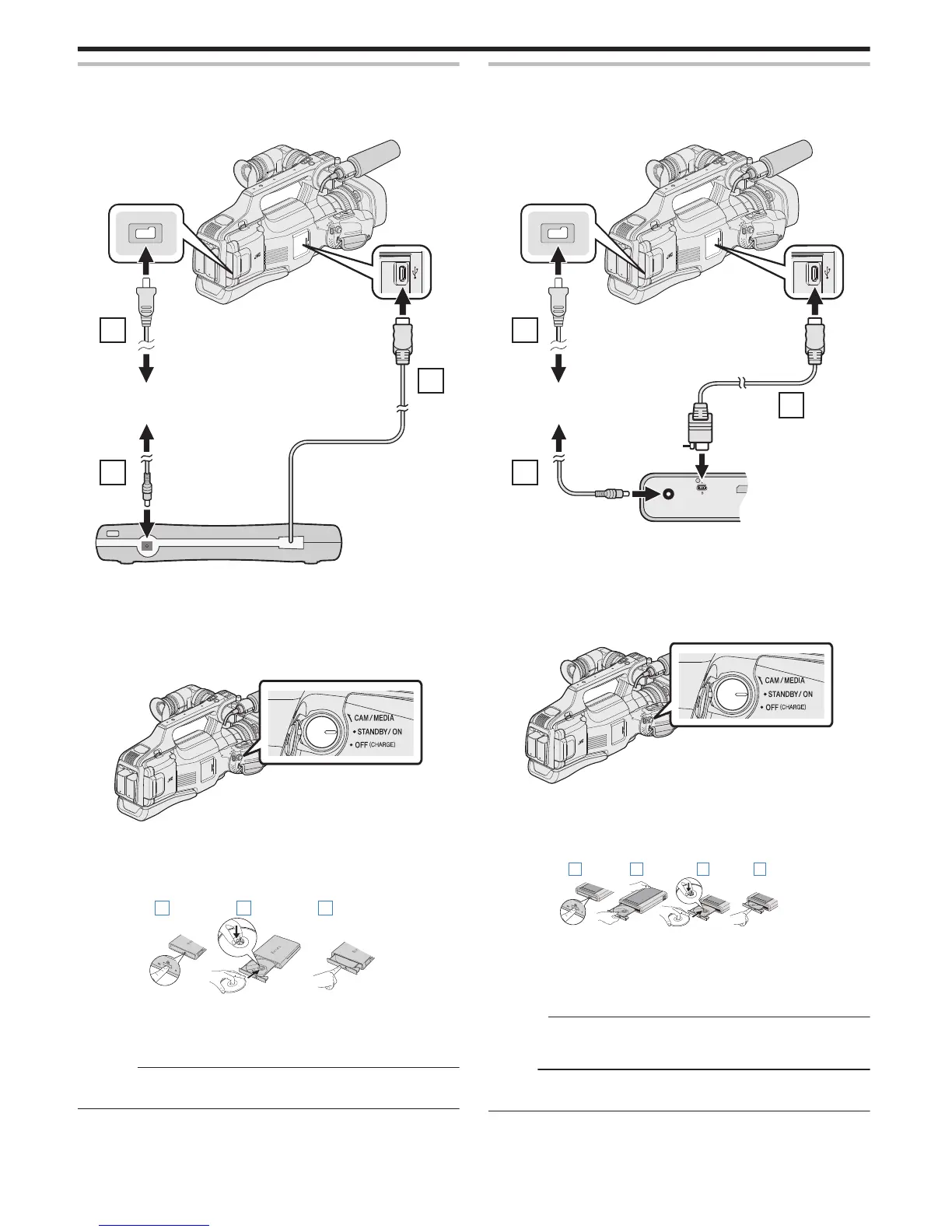

Preparing a DVD Writer (CU-VD3)
1
Remove the AC adapter and battery pack from this unit.
2
Connect the USB cable and the AC adapter.
.
1
3
2
DVD Writer
To DC Connector
To USB Connector
AC Adapter To
AC Outlet
A Connect the USB cable of the DVD writer to this unit.
B Connect the AC adapter of the DVD writer.
0
Turn on the DVD writer.
C Connect the AC adapter to this unit.
0
Refer also to the instruction manual of the DVD writer.
3
Set the “STANDBY/ON OFF” switch to “ON”.
.
0
When this unit is turned on, the “BACK-UP” menu appears.
0
While the USB cable is connected, the “BACK-UP” menu is
displayed.
4
Insert a new disc.
.
A Press the eject button to open the disc tray.
B Pull out the tray completely and load a new disc properly.
C Push the disc tray in until it clicks into place.
Caution :
0
Be sure to turn off the power when connecting the devices.
Otherwise, electric shocks or malfunctions may occur.
Preparing a DVD Writer (CU-VD50)
1
Remove the AC adapter and battery pack from this unit.
2
Connect the USB cable and the AC adapter.
.
1
3
2
To USB Connector
To DC Connector
AC Adapter To
AC Outlet
DVD Writer
Protrusion
A Connect the USB cable provided with the DVD writer.
B Connect the AC adapter of the DVD writer.
0
Turn on the DVD writer.
C Connect the AC adapter to this unit.
0
Refer also to the instruction manual of the DVD writer.
3
Set the “STANDBY/ON OFF” switch to “ON”.
.
0
When this unit is turned on, the “BACK-UP” menu appears.
0
While the USB cable is connected, the “BACK-UP” menu is
displayed.
4
Insert a new disc.
.

A Press the eject button.
B Pull out the disc tray.
C Pull out the tray completely and load a new disc properly.
D Push the disc tray in until it clicks into place.
Caution :
0
Be sure to turn off the power when connecting the devices.
Otherwise, electric shocks or malfunctions may occur.
Memo :
0
All buttons
on the DVD writer CU-VD50U, other than the power and eject
buttons, will not work when connected to this unit.
Copying
78
