JVC GY-HM70E User Manual

Front
.
345 087
b
a
jk
e
lmn
gfh
op
i
q
c
d
12 9
6
* Microphone is optional.

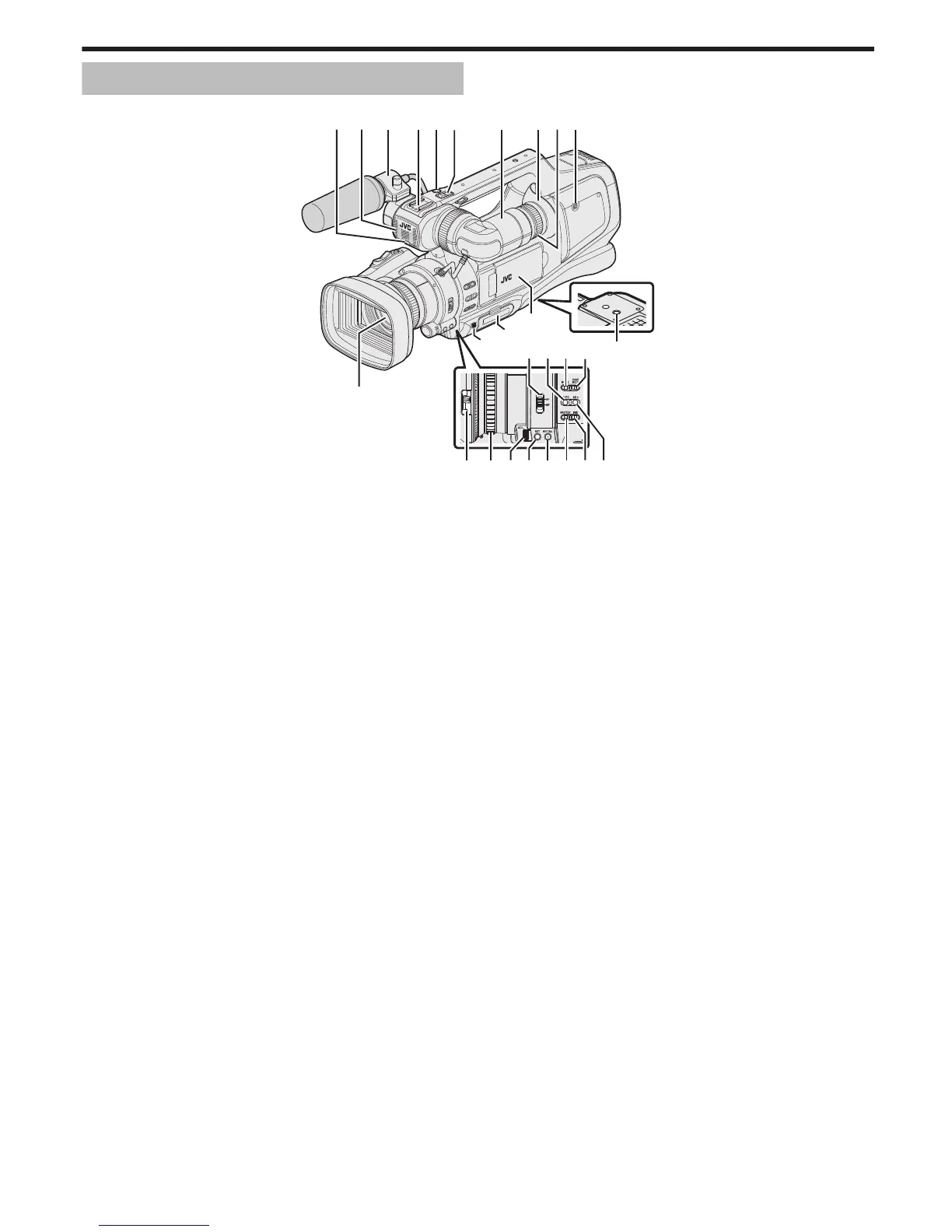

A Tally lamp
“TALLY LAMP” (A p. 115)
B Built-in microphone
C Microphone holder
“Attaching the External Microphone” (A p. 15)
D
Shoe
E “REC” (Record) button
“Taking Videos in Auto Mode” (A p. 20)
F Zoom lever
“Zooming” (A p. 26)
G Viewfinder
“Viewing with the viewfinder” (A p. 14)
H Eyepiece
I Eyepiece focus lever
J Built-in speaker
K Lens/Lens cover
L “DOOR LOCK” lever
M SD card slot A, B
“Inserting an SD Card” (A p. 6)
N LCD monitor
“Using the Touch Screen” (A p. 8)
“Viewing on LCD monitor” (A p. 14)
O Tripod mounting holes
“Tripod Mounting” (A p. 15)
P “AF/MF” Focus switch
“Selecting Focus Mode” (A p. 18)
Q i.AUTO (Intelligent Auto) button
“Selecting Intelligent Auto/Manual Recording Mode” (A p. 18)
R MODE (Video/Still image) button
“Selecting Video/Still Image Recording Mode” (A p. 19)
S “CAM”/“MEDIA” button
0
During recording: Switches to the media (playback) mode.
During playback: Switches to the camera (recording) mode.
T Lens cover switch
“Opening the Lens Cover” (A p. 14)
U Focus ring
“Adjusting Focus Manually” (A p. 27)
V “ADJ.” dial
W “SET” button
X “WHT BAL” White balance selection button
“Setting White Balance” (A p. 31)
Y “SHUTTER” Shutter speed button
“Adjusting Shutter Speed” (A p. 30)
Z “IRIS” Iris button
“Adjusting Aperture” (A p. 30)
a “AE±” Exposure button
“Adjusting Brightness Manually” (A p. 29)
Names of Parts
119

JVC GY-HM70E Specifications

General

Sensor type	CMOS
Total megapixels	12 MP
Optical sensor size	1/2.3 \
Filter size	46 mm
Optical zoom	10 x
Image stabilizer	Yes
Focal length range	3.76 - 37.6 mm
Interchangeable lens	-
Maximum aperture number	2.8
Minimum aperture number	1.2
Focal length (35mm film equivalent)	29.5 - 476 mm
Memory slots	2
Camcorder media type	Memory card
Disc types supported	No
Compatible memory cards	SD, SDHC, SDXC
Internal storage capacity	- GB
Focus adjustment	Auto/Manual
Camera shutter speed	0.00025 - 0.5 s
Display diagonal	3 \
Display aspect ratio	16:9
Display resolution (numeric)	230000 pixels
Viewfinder screen size	0.24 \
Camcorder type	Shoulder camcorder
Product color	Black
Video resolutions	720 x 576, 1920 x 1080 pixels
Video formats supported	AVCHD, H.264, MPEG4
Maximum video resolution	1920 x 1080 pixels
Image formats supported	JPG
Maximum image resolution	- pixels
Headphone outputs	1
Headphone connectivity	3.5 mm
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component video (YPbPr/YCbCr) out	0
Battery voltage	7.2 V
Battery capacity	- mAh
Battery life (max)	- h
Storage temperature (T-T)	-20 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	35 - 80 %
Cables included	RCA, USB

Weight and Dimensions

Depth	476 mm
Width	227 mm
Height	232 mm
Weight	3000 g
