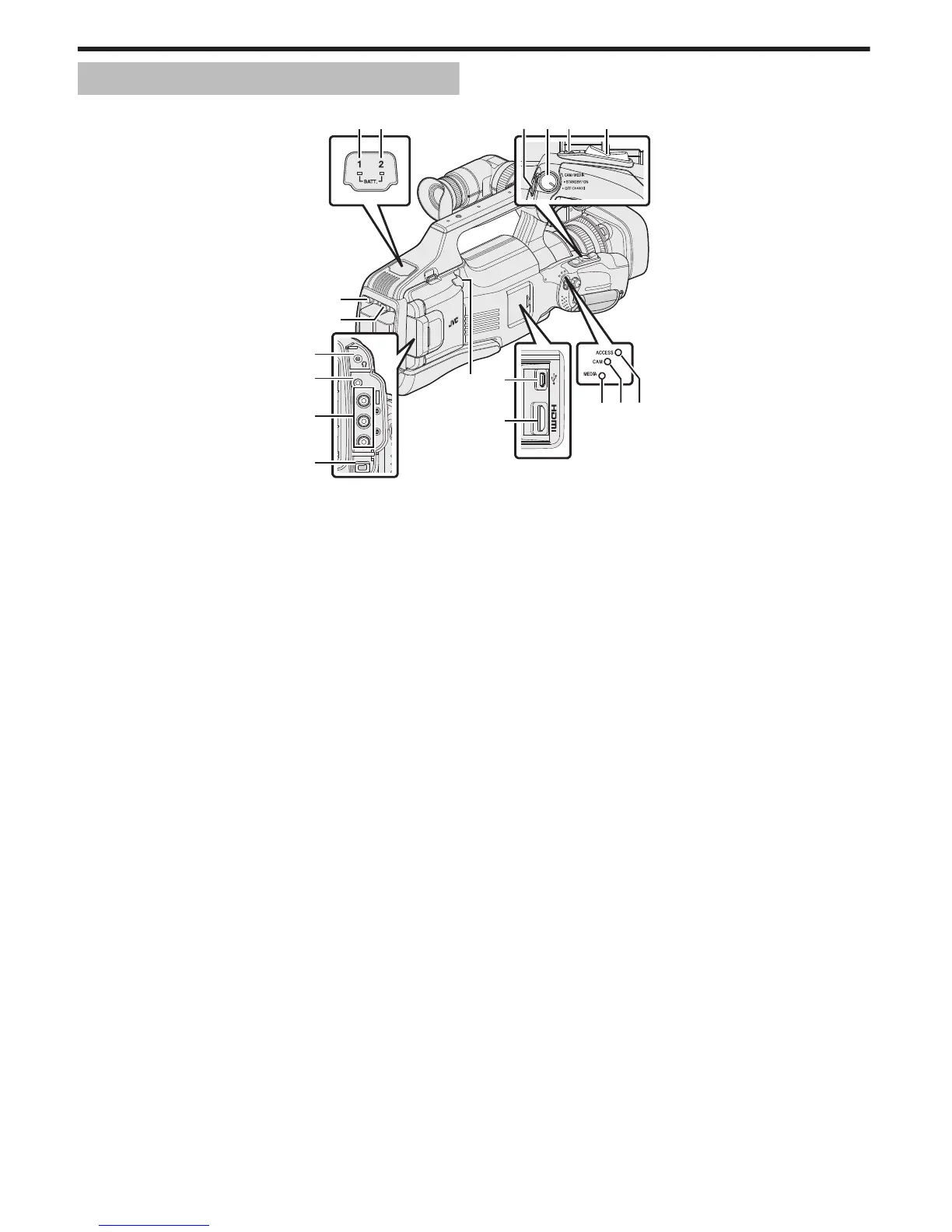

A “BATT. 1” charge indicating lamp
B “BATT. 2” charge indicating lamp
“Charging the Battery Pack” (A p. 5)
C “REC” (Record) button
“Taking Videos in Auto Mode” (A p. 20)
D “STANDBY/ON OFF”/“CAM/MEDIA”
Power/Operation mode selection switch
“Turning On/Off the Power” (A p. 11)
E “SNAPSHOT” (Still image recording) button
“Taking Still Images in Auto Mode” (A p. 24)
F Zoom lever
“Zooming” (A p. 26)
G “BATT. 1” lock release button
H “BATT. 2” lock release button
“Charging the Battery Pack” (A p. 5)
I Headphone jack
“Attaching the Headphones” (A p. 15)
J “REMOTE” Remote jack
“Preparing the Remote Control” (A p. 15)
K “AV” connector
“Connecting via the AV Connector” (A p. 57)
“Dubbing Files to a Disc by Connecting to a DVD Recorder” (A p. 85)
“Dubbing Files to a VHS Tape by Connecting to a VCR” (A
p. 86)
L “DC” connector
“Charging the Battery Pack” (A p. 5)
M “MIC” jack
“Attaching the External Microphone” (A p. 15)
N USB connector
“Creating Discs with a BD Writer (External Blu-ray Drive)” (A p. 69)
“Creating Discs with a DVD Writer” (A p. 77)
“Creating a Disc Using a Connected Blu-ray Recorder” (A p. 84)
“Using a USB External Hard Disk Drive” (A p. 87)
“Copying to Windows PC” (A p. 95)
“Copying to Mac Computer” (A p. 102)
O HDMI connector
“Connecting via the HDMI Connector” (A p. 55)
P “MEDIA” Media mode indicating lamp
Q “CAM” Camera mode indicating lamp
R “ACCESS” Access indicating lamp
