MX-J170V
1-12

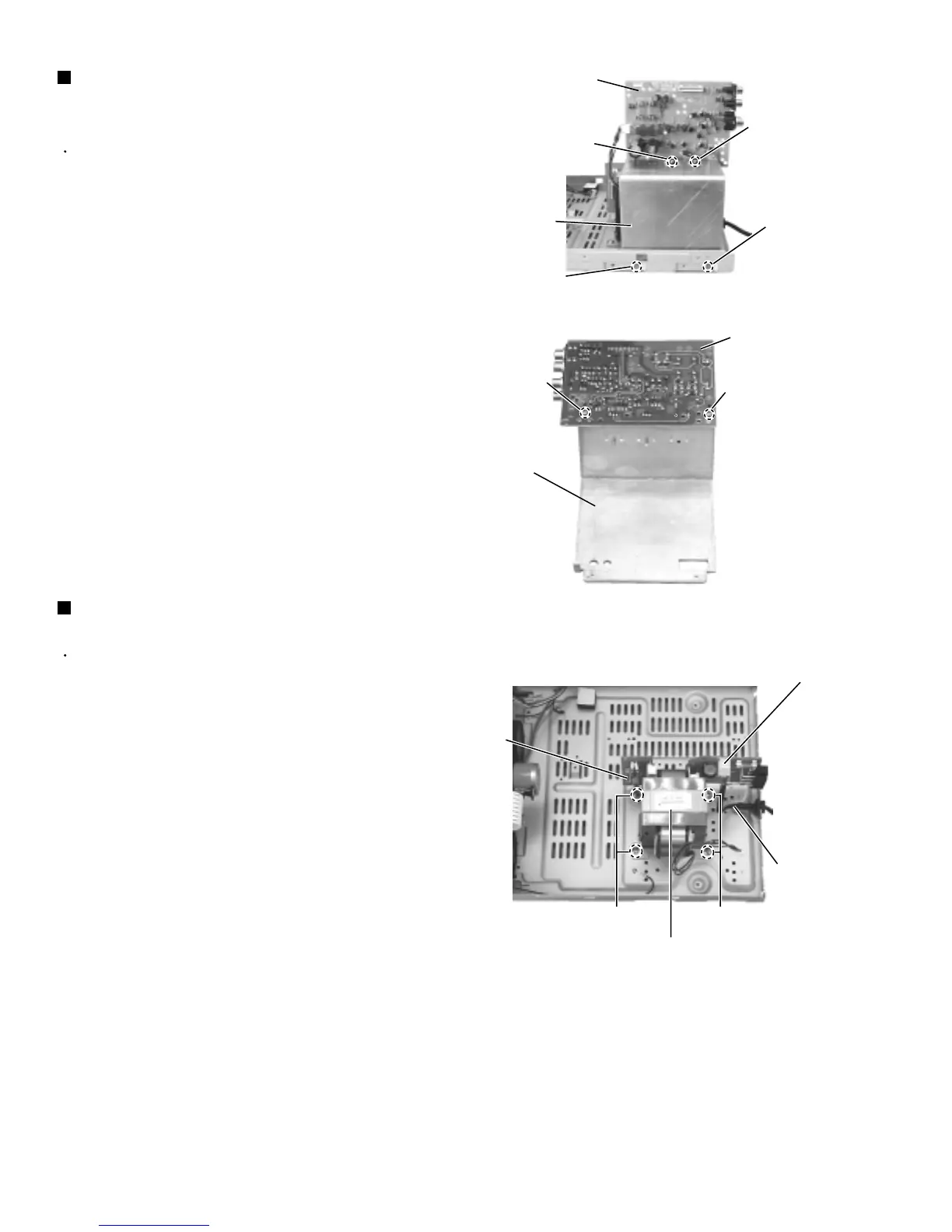

Prior to performing the following procedure, remove
the top cover and the side covers.
Remove the two screws O attaching the heat sink
plate.
Remove the two screws P attaching the power IC to
the heat sink and the two screws Q attaching the
heat sink to the VCD Power board.
1.
2.
Removing the heat sink & VCD Power
board (See Fig.24 and 25)
Prior to performing the following procedure, remove
the VCD Power board.
Disconnect the power cord from connector RCW2 of
the power transformer.
Disconnect the harness from connector RCW1 of the
power transformer.
Remove the four screws R attaching the power
transformer.
1.
2.
3.
Removing the power transformer
(See Fig.26)
Prior to disconnecting the power cord
from the body, remove the rear panel.
ATTENTION:
Fig.26
Fig.25
Fig.24
P
O
VCD Power board
Q
R
R
Power cord
RCW2
RCW1
Power transformer
Heat sink
Heat sink
P
O
Q
VCD Power board
