MX-J170V
1-7
Prior to performing the following procedure, remove
the top cover and the side covers.
Disconnect the harness from connector PCON1 of
the VCD board.
Remove the four screws W attaching the sealed and
VCD board.
Turn the black loading pulley gear marked c from the
back of the CD changer unit as shown in Fig.8 and
draw the CD tray toward the front.
Move the CD tray fitting upward and release the joint
b.
Push and insert the CD tray manually.
1.
2.
3.
4.
5.

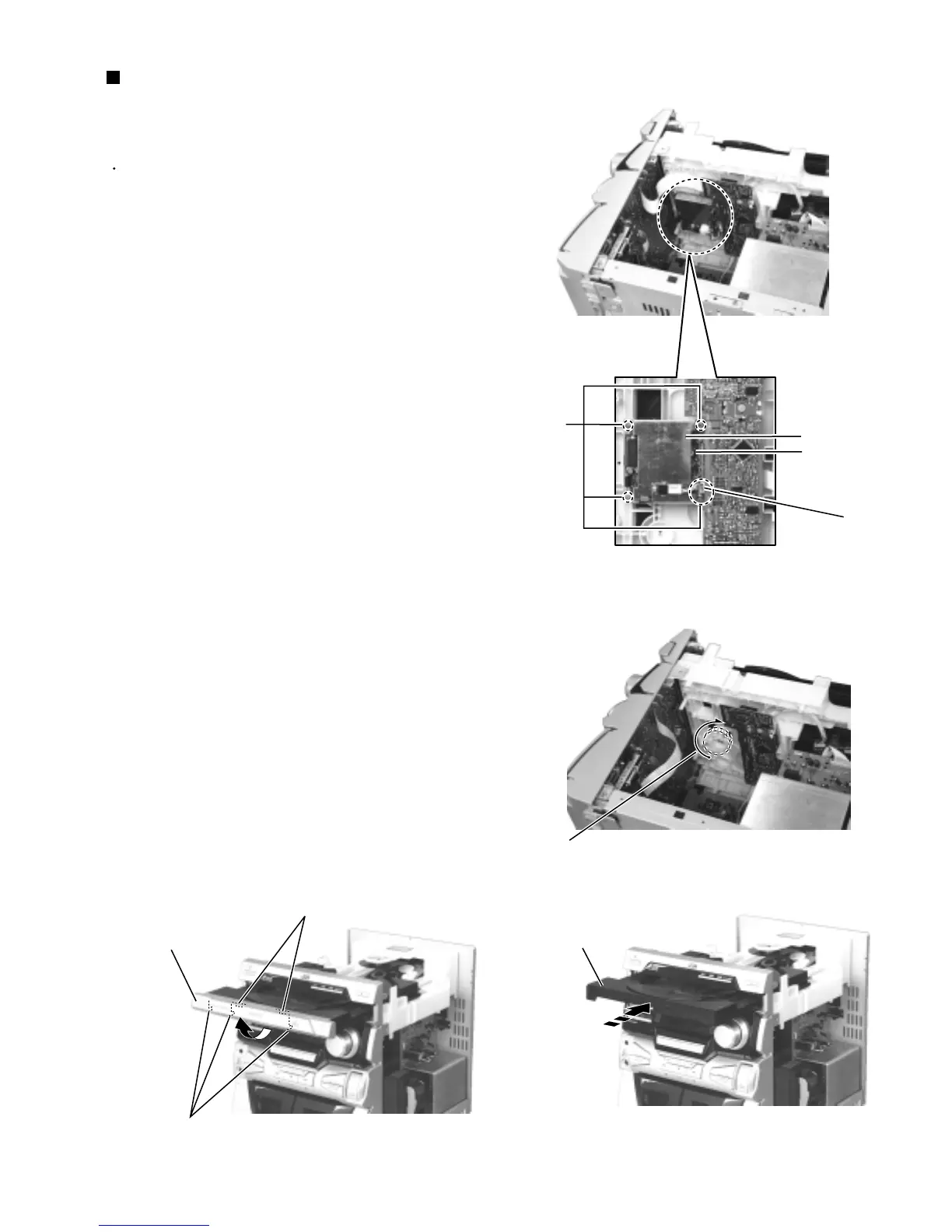

Removing the CD Tray fitting & the VCD
board (See Fig.7 to 10)
Be sure to remove the CD tray fitting
before removing the CD changer unit.
ATTENTION:
- How to eject the CD tray without turning on power -
Fig.9
Fig.10
Joint b
Joint b
CD tray fitting
CD tray
Fig.7
Fig.8
W
VCD board
Sealed
PCON1
Marked c
Loading pulley gear
