Prior to performing the following procedure, remove
the CD tray.
Release the two tabs j attaching the sensor board on
the under side of the CD tray.
Disconnect the harness from connector CW1 on the
sensor board and release the harness from the two
hooks k. Remove the sensor board.
Remove the screw X attaching the tray turn table.
Detach the tray turn table from the tray.
Pull outward the tab m attaching the tray turn table
motor assembly on the upper side of the tray and
detach the tray turn table motor assembly from the
tray.
1.
2.
3.
4.

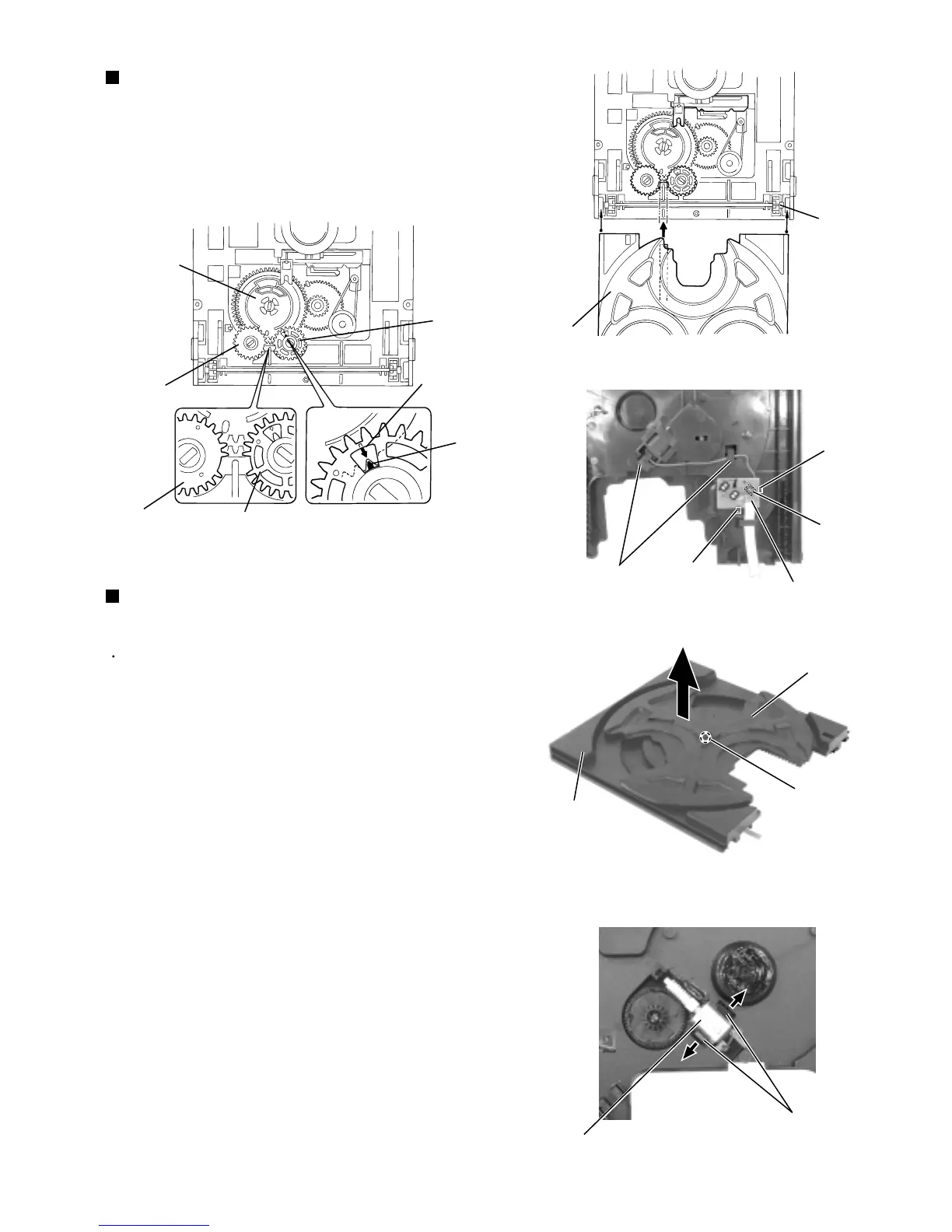

Removing the sensor board / the tray
motor (See Fig.37 to 39)
Align the gear-cam with the gear-tray as shown
fig.28, then mount the CD tray.
When assembling the CD tray, take extreme care not
engage with gear - synchro.
1.
2.
Reinstall the CD tray (See Fig.35 and 36)
Fig.35
Gear-convert
Gear-convert
Gear-cam
Gear-tray
Gear-tray
Gear-tray
Gear-cam
timing point
Fig.36
Gear-synchro
CD tray
Fig.38
Fig.37
Fig.39
Tab j
Tab j
Hooks k
Sensor board
CW1
Tray turn table
Tray
X
Tray turn table motor
assembly
Tab m
