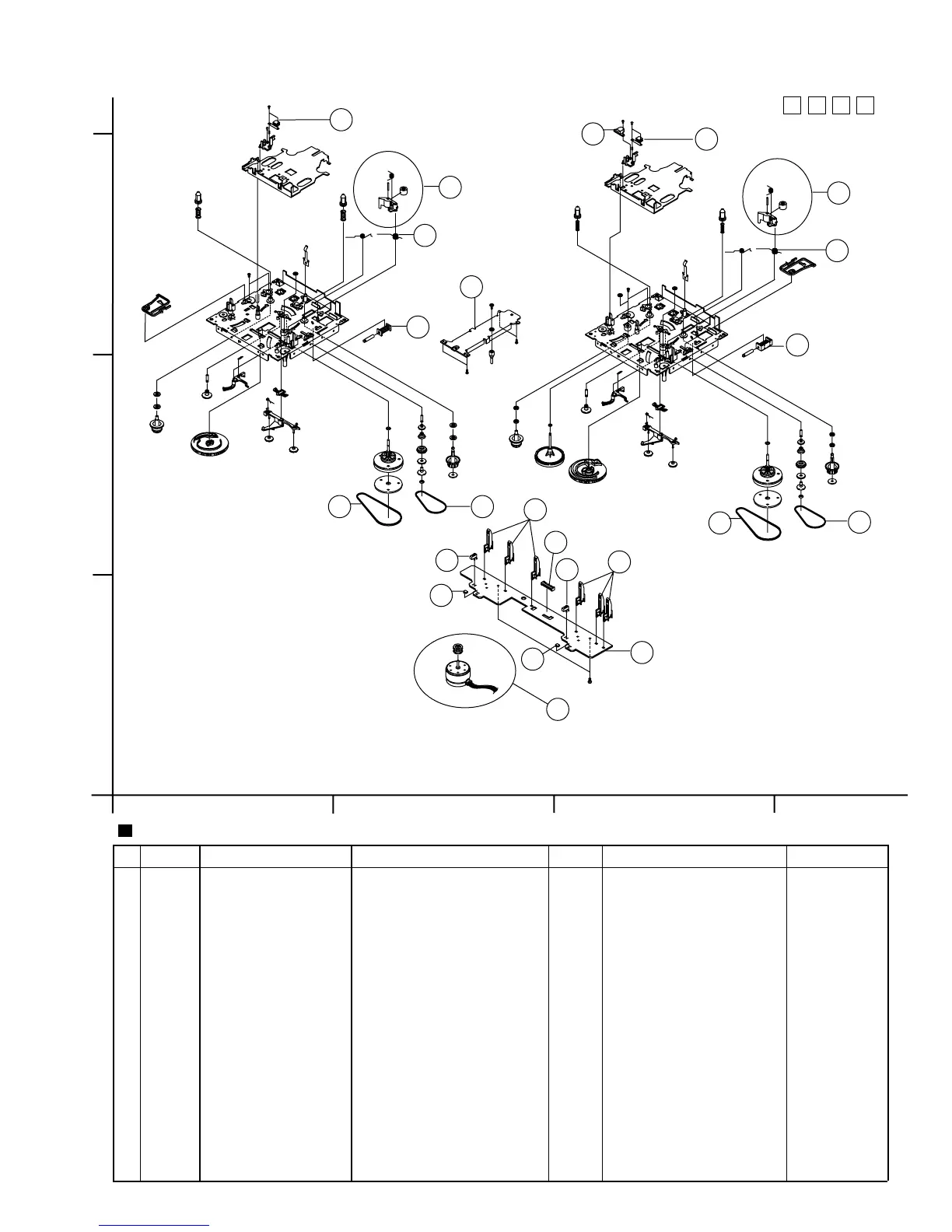

Cassette mechanism assembly and parts list
Block No.
M
M
M
4
Item Parts number Parts name Area
A
Parts list(Cassette mechanism)
Q'ty Description
Block No. M4MM
1 AH81-00141A R/P HEAD 2 TC881CB
2 AH81-00142A C.MOTOR ASS'Y 1 ADR2400-SHU2L
3 AH81-00143A MAIN BELT 1 1 ADR2400-MAIN76.
4 AH81-00144A MAIN BELT 2 1 ADR2400-MAIN64.
5 AH81-00101A SUB BELT 2 ADR2400-FR34.7
6 AH81-00102A SOLENOIDE 2 ADR2400-1
7 AH81-00282A SPRING 2
8 AH81-00283A PINCH LOLLER 2 ASS'Y PARTS
9 AH81-00284A E-HEAD 1 TC2131F
10 AH81-00285A MOTOR BRACKET 1
11 AH81-00286A LEAF SWITCH 2 ADR2400-MODE
12 AH81-00287A PHOTO SENSOR 2 ADR2400-SENSOR
13 AH81-00288A CONNECTOR 1 ADR2400-16
14 AH81-00289A LEAF SWITCH 6 ADR2400-MXS0022
15 AH81-00290A P.C.BOARD 1
Note: Parts listed on the Parts List below can be supplied.
However, parts that are not listed below cannot be supplied
individually but only by purchasing the whole Cassette
Mechanism Assembly Unit. (When ordering, use the Parts No.
AH59-20006U for Cassette Mechanism Assembly Unit.)
