MX-J170V
1-16
Prior to performing the following procedure, remove
the CD tray.
Detach the belt from the pulley on the upper side of
the CD changer unit (Do not stain the belt with
grease).
Disconnect the card wire from the pickup unit
connector on the under side of the CD changer unit.
Disconnect the motor wire harness from connector
on the CD mechanism board.
Remove the two screws Y attaching the CD servo
board. First release the n side of the two tabs n and
two tabs o attaching the CD servo board motor to
raise the CD servo board slightly, then release the o
side.
If the tabs n and o are hard to release, it is
recommendable to unsolder the two soldered parts
on the motor terminal of the CD servo board.
Disconnect the terminal CW3 connected to the
switch board and remove the CD servo board.
Remove the screw Z attaching the CD Changer unit
and release the three tabs p attaching the switch
board outward and detach the switch board.
1.
2.
3.
4.
5.

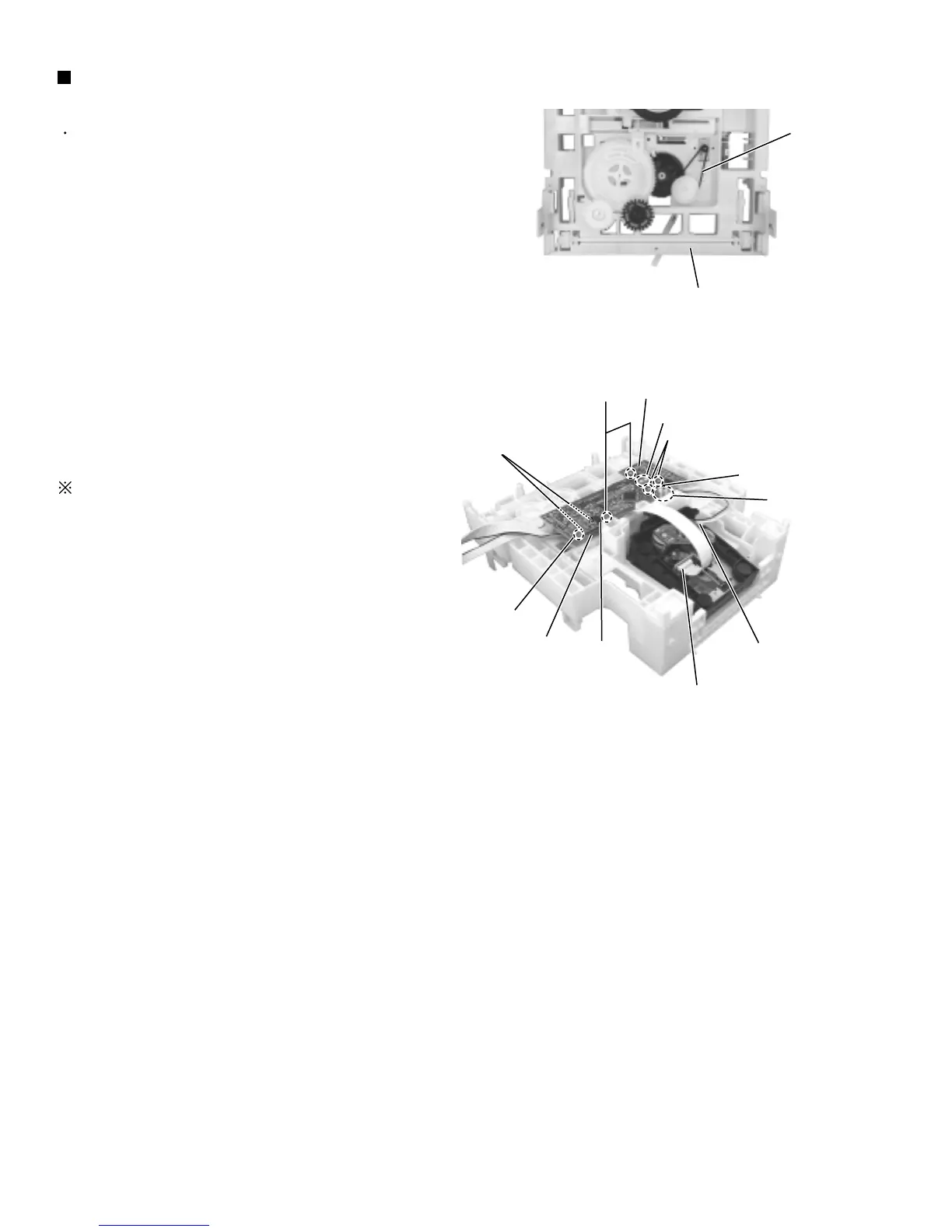

Removing the belt, the CD servo board
and the switch board (See Fig.40 and 41)
Z
Fig.41
Fig.40
Belt
CD changer unit
Y
CD servo board
Tabs o
Tabs n
Soldered parts
Motor
Switch board
CW3
Tabs p
CD mechanism board
motor connecter
Pickup unit connector
To Next Page
