MX-J170V
1-5

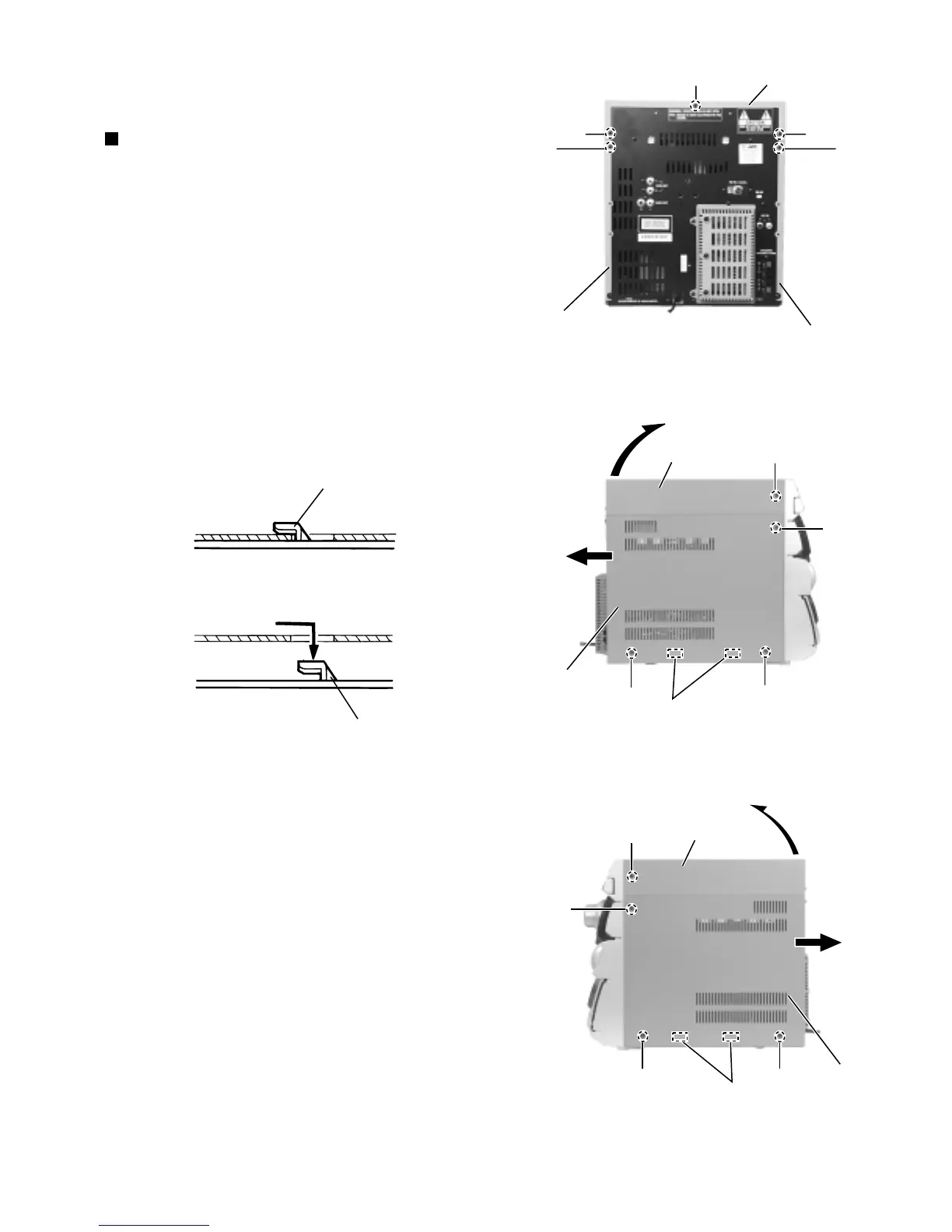

Remove the five screws A on the back of the body
and the both sides of the body.
Remove the top cover upward from behind.
Remove the eight screws B attaching the side
covers on the back of the body and the both side of
the body.
Slide the right and left covers backward and unhook
the two hooks a in the lower part of the side covers
as shown in Fig.2-2.
1.
2.
3.
4.
<Main body>
Removing the top cover and the side
covers (See Fig.1 to 3)
Disassembly method
Fig.1
Fig.2Fig.2-2
Fig.3
Top cover
A
A
A
B
B
Side cover (L)
Side cover (R)
Side cover (R)
A
B
B
B
Top cover
Hooks a
Top cover
Hooks a
A
B
B
B
Side cover (L)
Hook
Hook
