JVC MX-J170V

3-4
MX-J170V
Item
Parts number Parts name Area
A
Parts list(General assembly)
Q'ty
Description
Block No. M1MM
1 AH64-00426C
WINDOW
1
CD
2 AH64-00414C
CD DOOR
1
3 AH64-00429C
WINDOW-DOOR CD
1
DOOR,CD
4 AH64-00462A
BADGE-JVC
2
JVC
5 AH64-00417B
KNOB
1
MIC
6 AH63-00107A
SHEET-FRONT
1
7 AH64-00430D
WINDOW
1
VFD
8 AH61-00271B
CAP-VOLUME
1
9 AH64-00422B
KNOB-VOLUME
1
VOLUME
10 AH64-00427B
WINDOW-DOOR A
1
DOOR A
11 AH64-00428B
WINDOW-DOOR B
1
DOOR B
12 AH64-00412B
DOOR-CASSETTE A
1
CASS,A
13 AH64-00413B
DOOR-CASSETTE B
1
CASS,B
14 AH61-62004A
SPRING-EJECT A
1
15 AH61-62005A
SPRING-EJECT B
1
16 AH64-00364D
CABINET-FRONT
1
17 AH61-80030A
DAMPER-ASSY
2
18 AH95-50001A
ASSY-LATCH
2
19 AH64-00421B
KNOB-RECORD
1
REC
20 AH64-00423B
KNOB-DUBBING
1
DUBBING
21 AH64-00420B
KNOB-CD OPEN
1
CD OPEN
22 AH64-00415C
KNOB
1
FUNCTION
23 AH64-00418C
KNOB
1
PRESET
24 AH64-00425C
KNOB-DUBBING
1
POWER
25 AH67-00035A
LENS-POWER 1
LENS-POWER
26 AH64-00440D
KNOB
1
PROGRAM
27 AH64-00419A
KNOB-KARAOKE
1
KARAOKE
28 AH64-00416A
KNOB-DISC CHANGE
1
DISC CHANGE
29 AH64-00432A
CABINET-SIDE R
1
SIDE-R
30 AH64-00431A
CABINET-SIDE L
1
SIDE-L
31 AH64-30443D
CABINET
1
TOP
32 AH61-00021B
SUPPORT-PCB
1
33 AH61-20540B
HOLDER 1
TUNER
34 AH64-30416C
CABINET-BOTTOM
1
BOTTOM
35 AH64-00366B
CABINET
1
REAR
36 AH62-00023C
HEAT-SINK-MAIN
1
37 AN61-00250B
BRAKET-H/SINK
1
38 AH61-00252A
HOLDER-VFD
1
39 AH61-00380A
SHAFT-H/PHONE
1
40 AH62-32002B
HEAT SINK 1
AL3.0T,
41 AH61-00278A
CAP-REAR 1
42 AH31-10020A
FAN-DC
1
D0620B-12M,12VD
43 AH26-00054B
POWER TRANS
A
1
115/230V,50/60H
44 6003-000275
SCREW-TAPTITE
33
3X10 BLK
45 6003-000276
SCREW-TAPPING
15
3X10
46 AH60-10182A
SCREW-TAPPING 2
FAN DC
47 AH60-00014A
SCREW-TAPTITE
4
TH,S-TITE,M4
48 6003-000277
SCREW
11
3X12
49 AH39-10002L
POWER CODE
A
1
CP2,KLCE-2F,2.1
50 AH68-50275D
LASER-CAUTION
1
51 AH68-50482B
LABEL-CLASS1-5L
1
52 AH68-50282D
CAUTION LABEL
1
53 AH61-40014A
SUPPORT-RIVET
1
1
2

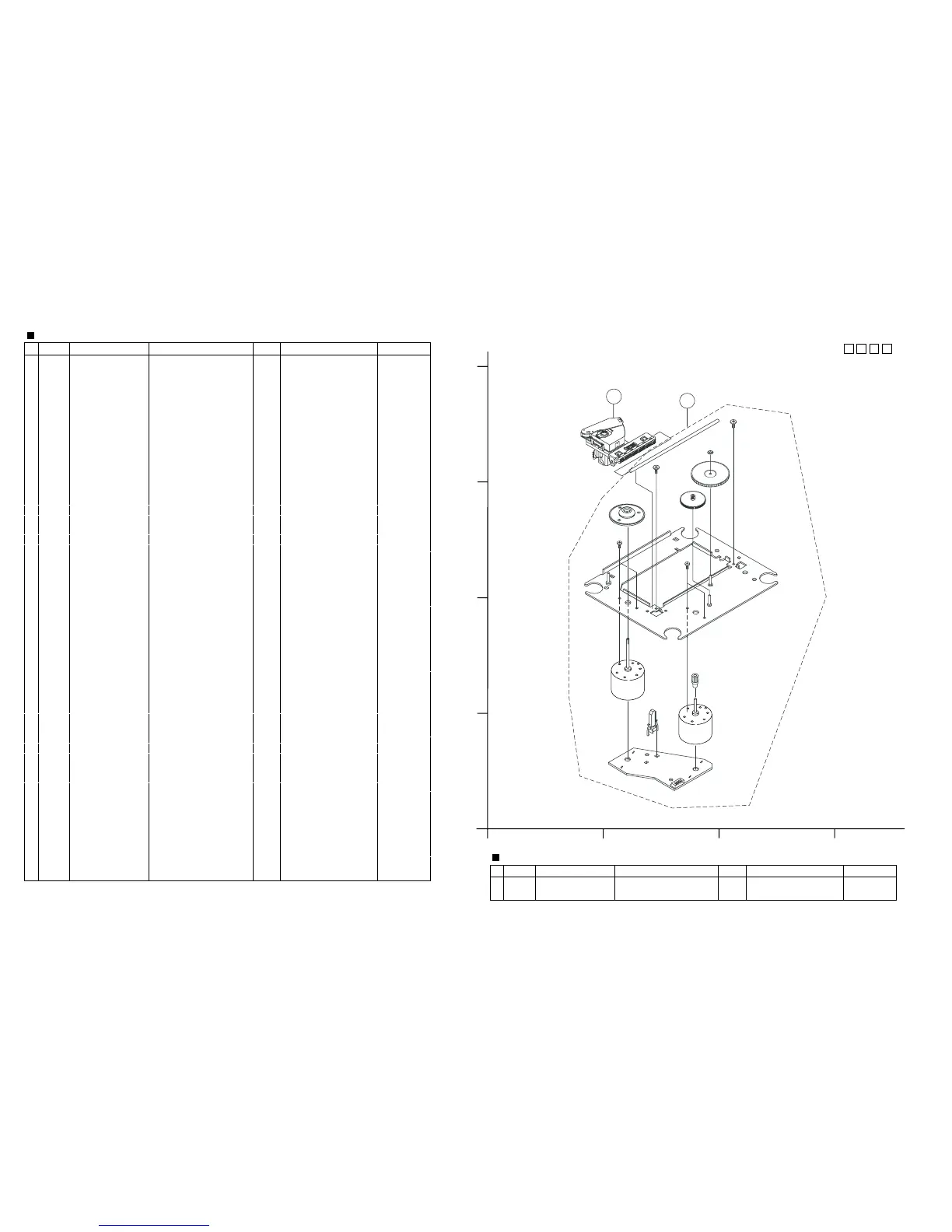

CD mechanism assembly and parts list
Block No.
M
M
M
2
Item
Parts number Parts name Area
A
Parts list(CD mechanism)
Q'ty
Description
Block No. M2MM
1 AH30-00007A
PIC UP
1
SOH-AA,D51SG6(W
2 AH91-60150A
CDP DECK ASSY
1
CMS-300D,-
ABC D
1
2
3
4
