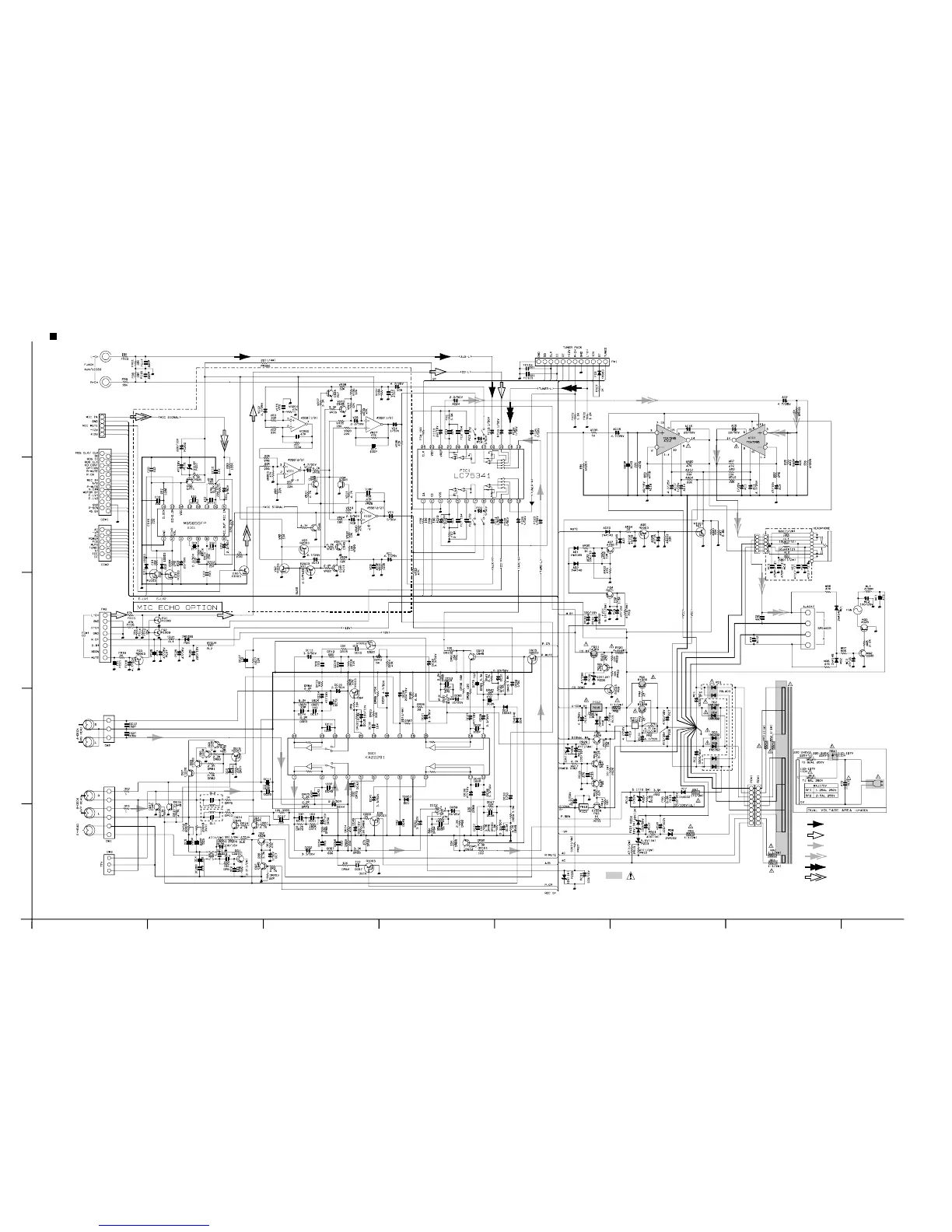

JVC MX-J170V - Main Section Schematic

HABC DE FG
1
2
3
4
5
2-4
MX-J170V
Main signal
Tuner signal
MIC signal
AUX signal
CD signal
Tape signal
Main section
Parts are safety assurance parts.
When replacing those parts make
sure to use the specified one.
SHEET5/5
SHEET1/5
SHEET1/5
SHEET1/5
SHEET3/5
SHEET2/5
